Top » Piese de schimb » PIESE BLACK & DECKER » GTC610P Type H2

MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H2
[GTC610P Type H2]
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H2
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H2
Click pentru a mari
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H2
Click pentru a mari

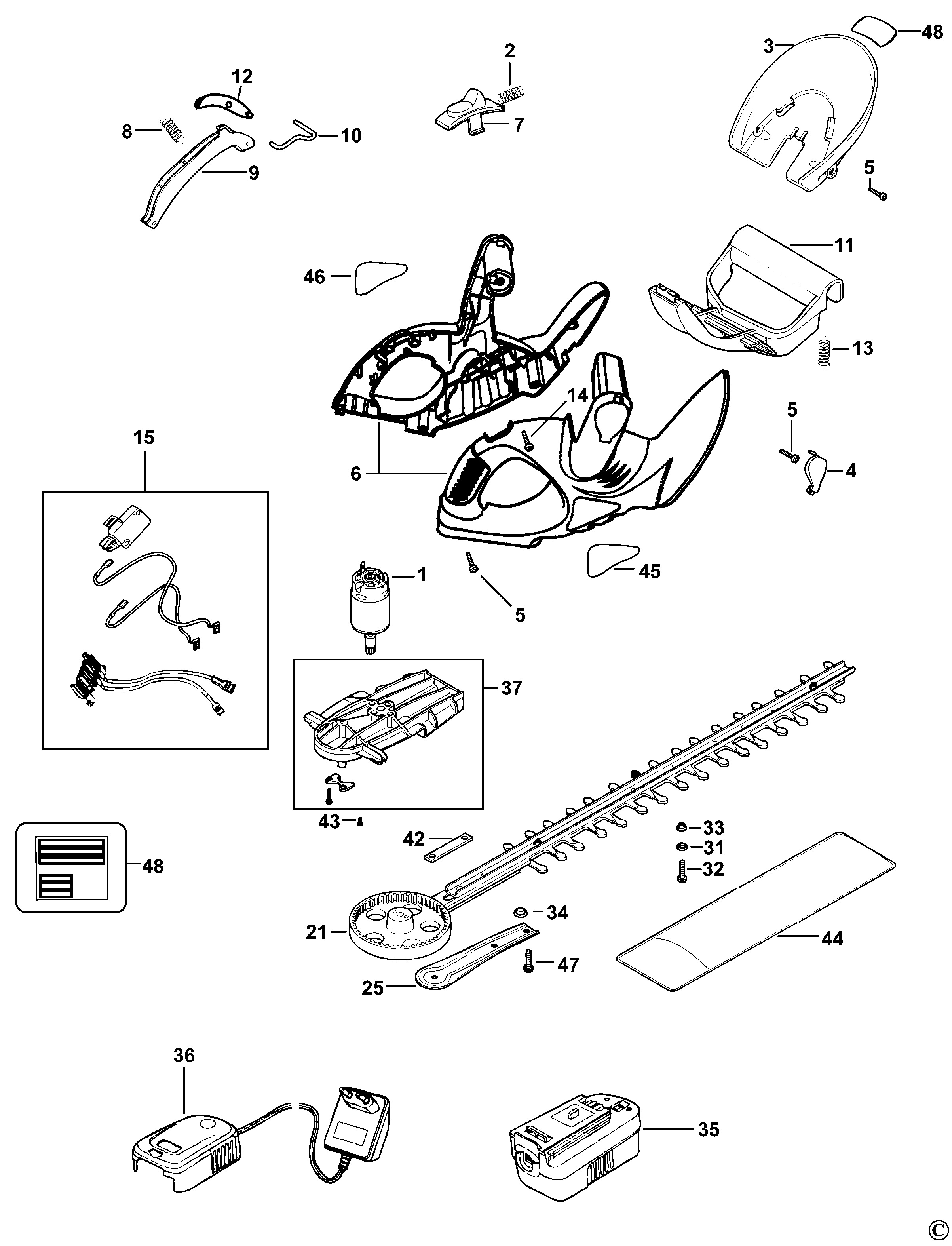

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR & PINION (571833-02) 7940 RON
2 1 1 SPRING (5103502-00) 558 RON
3 1 1 GUARD (574137-00) 2347 RON
4 1 2 CAP (574095-21) 558 RON
5 1 8 SCREW (5103541-00) 558 RON
6 1 1 CLAMSHELL SET (584811-01) 7940 RON
7 1 1 LOCK BUTTON (576736-11) 781 RON
8 1 1 SPRING (5103503-00) 558 RON
9 1 1 TRIGGER (571860-02) 781 RON
10 1 1 LINK (5145072-00) 558 RON
11 1 1 ACTUATOR (571812-01) 190 RON
12 1 1 CONNECTOR (571811-10) 558 RON
13 1 1 SPRING (5103504-00) 558 RON
14 1 2 SCREW (5103555-00) 558 RON
15 1 1 SWITCH SA (5103535-00) 5591 RON
21 1 1 BLADE SA (90526454) 32770 RON
25 1 1 GEARCASE COVER (571828-01) 781 RON
31 1 7 SPACER (90526229) 558 RON
32 1 7 BOLT (90527921) 558 RON
33 1 7 NUT M5 (90526227) 558 RON
34 1 2 SPACER (90526229) 558 RON
35 1 1 BATTERY 18V - 1.7AH (S/FIT) (5100385-57) 39145 RON
35 1 1 BATTERY 18V - 1.7AH (90525688-01) 59725 RON
36 1 1 90638069 - Indisponibil
36 1 1 CHARGER (EURO) (90501625) 14315 RON
37 1 1 GEARBOX SA (571824-02) 3018 RON
42 1 1 90523396 - Indisponibil
43 1 2 SCREW (311940-03) 558 RON
44 1 1 SHEATH (5103500-00) 893 RON
45 1 1 WARNING LABEL (586212-01) 558 RON
46 1 1 BRAND LABEL (586213-01) 558 RON
47 1 2 BOLT (5103514-00) 558 RON
48 1 1 90522828 - Indisponibil
