Top » Piese de schimb » PIESE BLACK & DECKER » GTC610P Type H1

MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H1
[GTC610P Type H1]
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H1
Click pentru a mari
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610P Type H1
Click pentru a mari

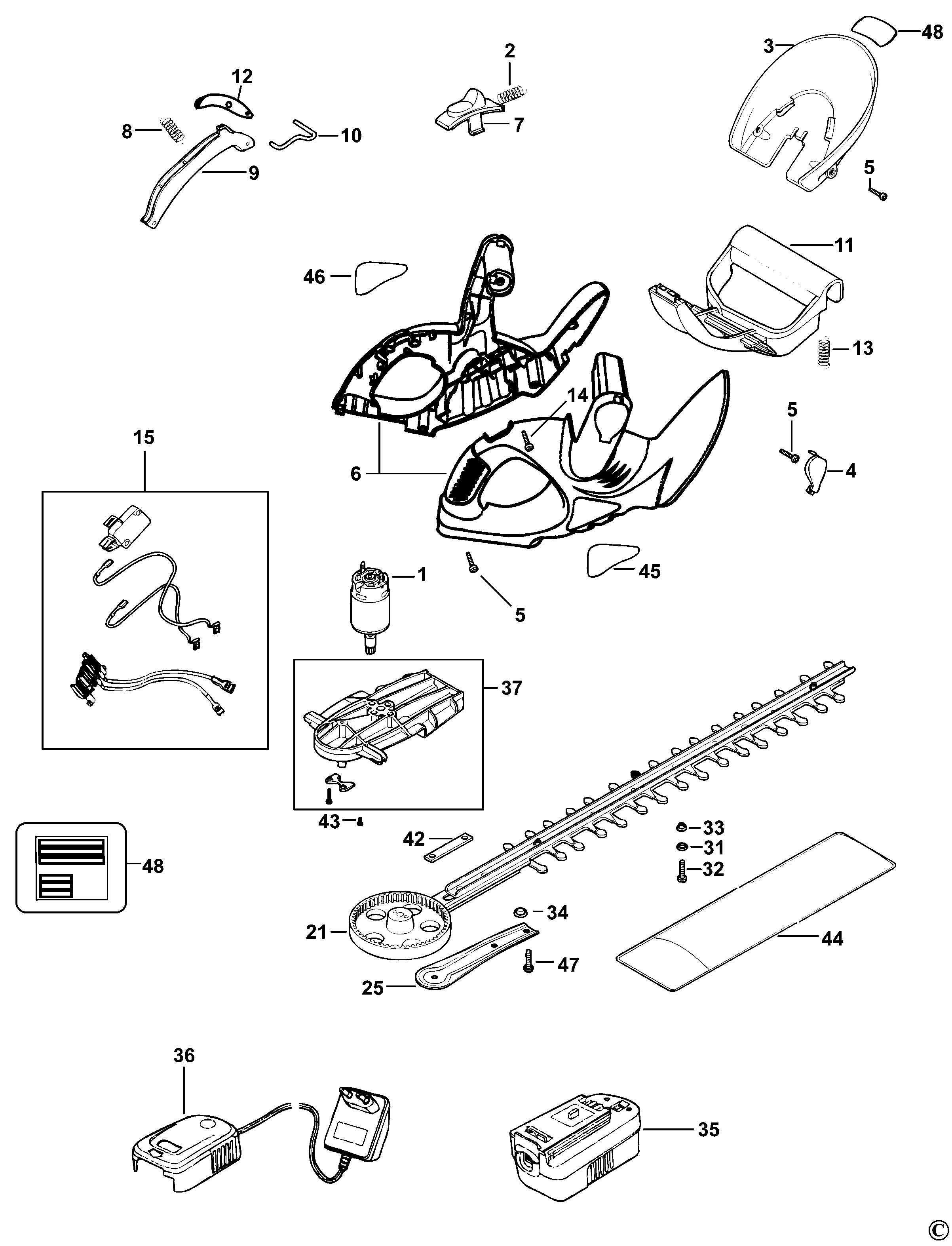

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR & PINION (571833-02) 7940 RON
2 1 1 SPRING (5103502-00) 558 RON
3 1 1 GUARD (574137-00) 2347 RON
4 1 2 574095-00 - Indisponibil
5 1 8 SCREW (5103541-00) 558 RON
6 1 1 584811-00 - Indisponibil
7 1 1 576736-00 - Indisponibil
8 1 1 SPRING (5103503-00) 558 RON
9 1 1 571860-00 - Indisponibil
10 1 1 LINK (571813-01) 558 RON
11 1 1 571812-00 - Indisponibil
12 1 1 571811-00 - Indisponibil
13 1 1 SPRING (5103504-00) 558 RON
14 1 2 SCREW (5103555-00) 558 RON
15 1 1 5103535-01 - Indisponibil
21 1 1 BLADE SA (571820-07) 26730 RON
25 1 1 COVER GEARCASE (571828-00) 893 RON
31 1 7 WASHER (575678-00) 781 RON
32 1 7 "SCREW M5 * 14""" (371954-01) 558 RON
33 1 7 NUT M5 FLANGE (798755) 558 RON
34 1 2 SPACER (573217-00) 558 RON
35 1 1 BATTERY 18V - 1.5AH (90562938) 62298 RON
35 1 1 BATTERY PACK 18V (90535672) 80865 RON
35 1 1 BATTERY (5100385-54) 65989 RON
35 1 1 BATTERY 18v S/Fit 1.5Ah (5103553-00) 45297 RON
36 1 1 90638069 - Indisponibil
36 1 1 CHARGER (EURO) (90501625) 14315 RON
36 1 1 CHARGER (EURO) (5101182-10) 12861 RON
37 1 1 GEARCASE SA (571824-01) 3018 RON
42 1 1 PLATE TAPPED (370927) 558 RON
43 1 2 SCREW (311940-03) 558 RON
44 1 1 SHEATH (5103500-00) 893 RON
45 1 1 WARNING LABEL (586212-01) 558 RON
46 1 1 BRAND LABEL (586213-01) 558 RON
47 1 2 BOLT (5103514-00) 558 RON
48 1 1 5103554-02 - Indisponibil
