Top » Piese de schimb » PIESE BLACK & DECKER » GTC610 Type H3

MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610 Type H3
[GTC610 Type H3]
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610 Type H3
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610 Type H3
Click pentru a mari
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC610 Type H3
Click pentru a mari

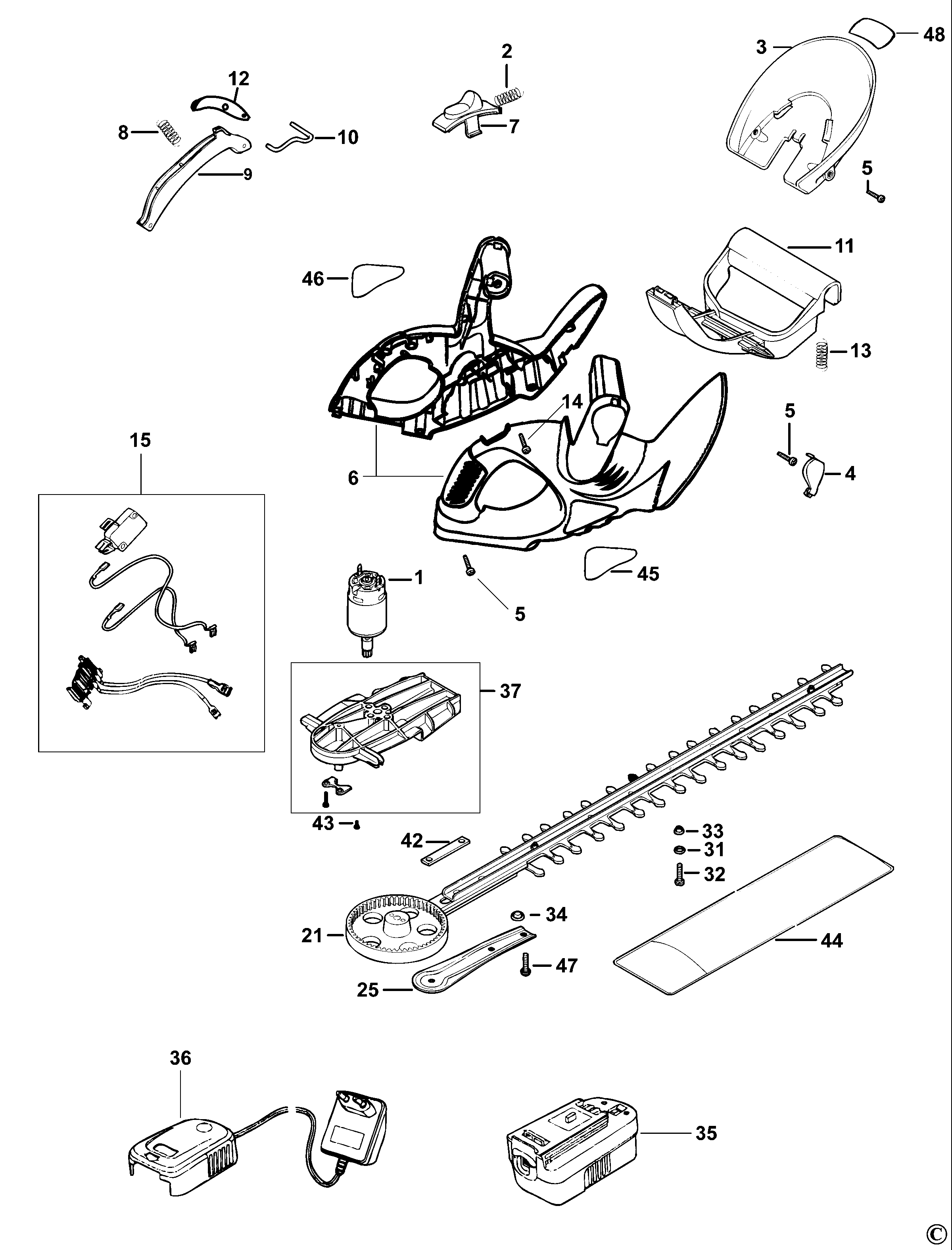

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR & PINION (571833-02) 7940 RON
2 1 1 SPRING (5103502-00) 558 RON
3 1 1 GUARD (574137-11) 2795 RON
4 1 2 CAP (574095-21) 558 RON
5 1 8 SCREW (5103541-00) 558 RON
6 1 1 CLAMSHELL SET (584811-01) 7940 RON
7 1 1 LOCK BUTTON (576736-11) 781 RON
8 1 1 SPRING (5103503-00) 558 RON
9 1 1 TRIGGER (571860-02) 781 RON
10 1 1 LINK (5145072-00) 558 RON
11 1 1 ACTUATOR (571812-01) 190 RON
12 1 1 CONNECTOR (571811-10) 558 RON
13 1 1 SPRING (5103504-00) 558 RON
14 1 2 SCREW (5103555-00) 558 RON
15 1 1 SWITCH SA (5103535-00) 5591 RON
21 1 1 BLADE SA (90526454) 32770 RON
25 1 1 GEARCASE COVER (571828-01) 781 RON
31 1 7 SPACER (90526229) 558 RON
32 1 7 "SCREW M5 * 14""" (371954-01) 558 RON
33 1 7 NUT M5 (90526227) 558 RON
34 1 2 SPACER (90526229) 558 RON
35 1 1 BATTERY 18v S/Fit 1.5Ah (5103553-00) 45297 RON
36 1 1 90613804 - Indisponibil
36 1 1 CHARGER SA (90500849-01) 7940 RON
36 1 1 CHARGER 18v RoHS GB (90500849) 9282 RON
37 1 1 GEARBOX SA (571824-02) 3018 RON
42 1 1 COVERPLATE (370927-01) 781 RON
43 1 2 SCREW (311940-03) 558 RON
44 1 1 SHEATH (5103500-00) 893 RON
45 1 1 BRAND LABEL (90522803) 781 RON
46 1 1 BRAND LABEL (90522804) 781 RON
47 1 1 BOLT (90527921) 558 RON
48 1 1 RATING PLATE (90557083) 781 RON
48 1 1 RATING PLATE (90522807) 781 RON
