MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC2451 Type H1
[GTC2451 Type H1]
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC2451 Type H1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC2451 Type H1
Click pentru a mari

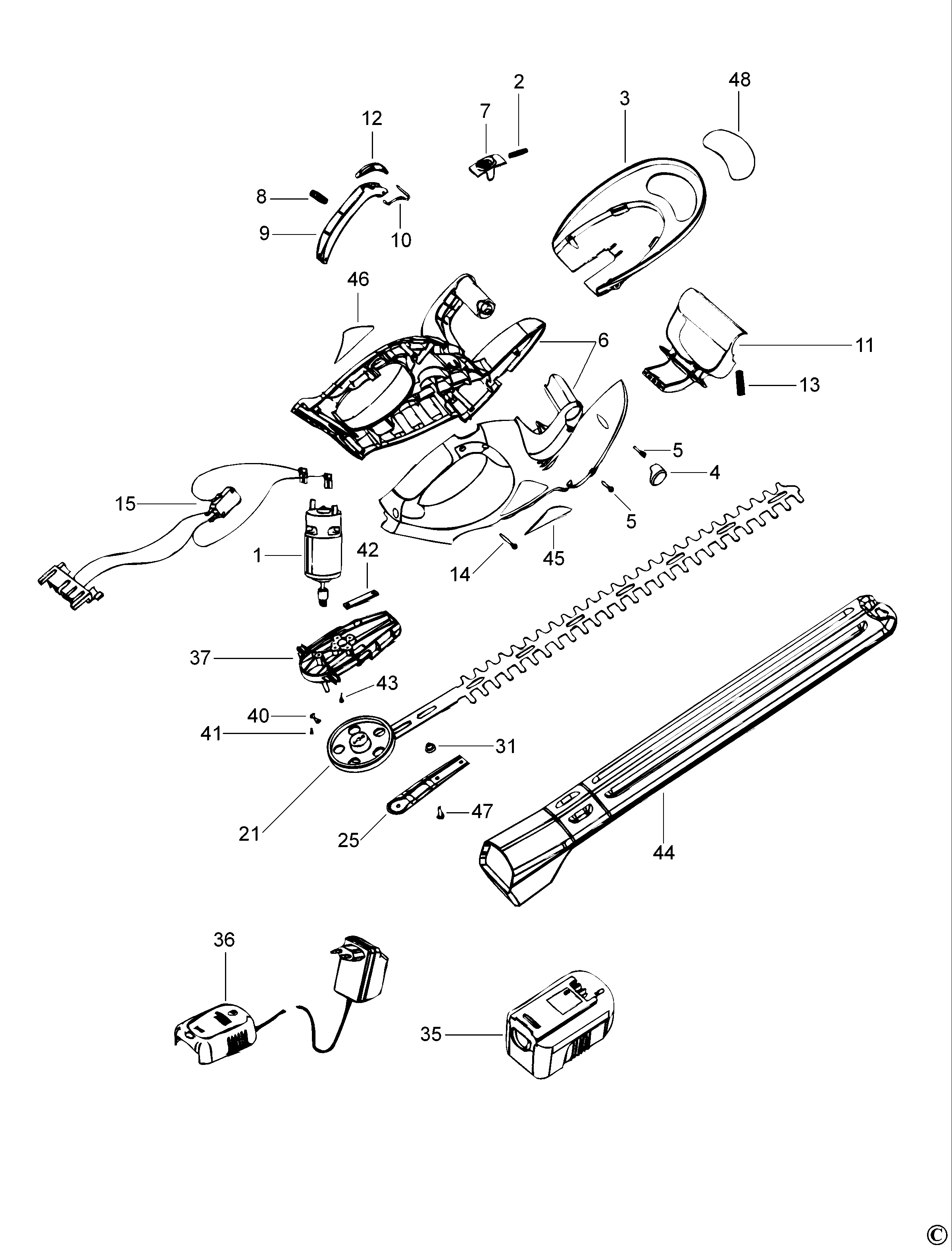

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (5119917-00) 14315 RON
2 1 1 SPRING (5103502-00) 558 RON
3 1 1 GUARD (574137-10) 2795 RON
4 1 2 CAP (574095-20) 558 RON
5 1 8 SCREW (5103541-00) 558 RON
6 1 1 CLAMSHELL SET (584811-03) 7940 RON
7 1 1 BUTTON LOCK-OFF (576736-10) 781 RON
8 1 1 SPRING (5103503-00) 558 RON
9 1 1 TRIGGER (571860-01) 558 RON
10 1 1 LINK (571813-01) 558 RON
11 1 1 ACTUATOR (571812-10) 190 RON
12 1 1 CONNECTOR (571811-10) 558 RON
13 1 1 SPRING (5103504-00) 558 RON
14 1 2 SCREW (5103555-00) 558 RON
15 1 1 SWITCH & LEAD SA (5119914-01) 5031 RON
21 1 1 BLADE SA (571820-07) 26730 RON
25 1 1 GEARCASE COVER (571828-01) 781 RON
31 1 2 SPACER (573217-01) 558 RON
35 1 1 5103040-07 - Indisponibil
36 1 1 5145093-00 - Indisponibil
37 1 1 GEARCASE SA (571821-00) 2795 RON
40 1 1 INSERT (574164-00) 781 RON
41 1 2 SCREW (5103543-00) 558 RON
42 1 2 COVERPLATE (370927-01) 781 RON
43 1 2 SCREW (311940-03) 558 RON
44 1 1 SHEATH (5103500-00) 893 RON
45 1 1 BRAND LABEL (5119922-00) 558 RON
46 1 1 BRAND LABEL (5119923-00) 558 RON
47 1 2 BOLT (5103514-00) 558 RON
48 1 1 RATING PLATE (5119921-00) 558 RON
