MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC1850N Type H1
[GTC1850N Type H1]

Imagini suplimentare

Click pentru a mari

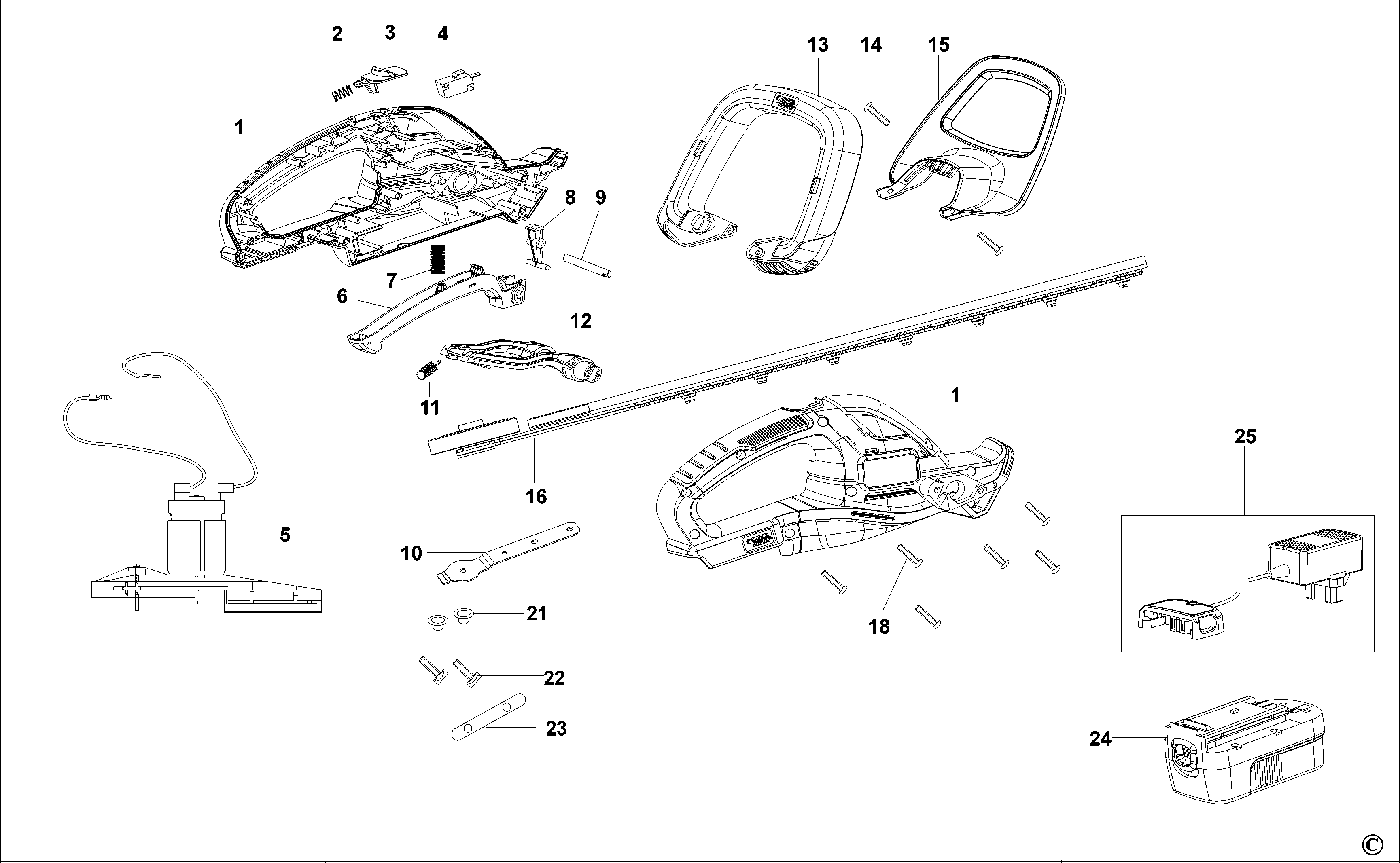

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	CLAMSHELL PAIR (90572595)	92⁸² RON
2	1	1	SPRING (90572096)	5⁵⁸ RON
3	1	1	LEVER (90565890)	7⁸¹ RON
4	1	1	SWITCH (90553427)	21²⁴ RON
5	1	1	MOTOR SA (90581107)	159⁹³ RON
6	1	1	LEVER (90565801)	8⁹³ RON
7	1	1	SPRING (806128)	5⁵⁸ RON
8	1	1	LEVER (90578043)	8⁹³ RON
9	1	1	AXLE (490403-00)	5⁵⁸ RON
10	1	1	PLATE (90570808)	14⁵² RON
11	1	1	SPRING (90573282)	5⁵⁸ RON
12	1	1	BRACKET (90565176)	14⁵² RON
13	1	1	HANDLE SA (90572636)	68²¹ RON
14	1	2	SCREW (90577627)	5⁵⁸ RON
15	1	1	GUARD (90572829)	21²⁴ RON
16	1	1	BLADE SA (90568806)	267³⁰ RON
16	1	1	90597358	-	Indisponibil
18	1	1	SCREW (747329)	5⁵⁸ RON
21	1	2	BLADE SPACER (376614-01)	7⁸¹ RON
22	1	2	BOLT (90527921)	5⁵⁸ RON
23	1	1	PLATE (90568498)	7⁸¹ RON
24	1	1	BATTERY 18V - 1.5AH (90573366)	437³¹ RON
25	1	1	CHARGER SA (90563249)	105¹² RON
