MASINA DE TUNS GARD VIU CU ACUMULATOR BLACK+DECKER GTC1845L20 Type 1
[GTC1845L20 Type 1]

Imagini suplimentare

Click pentru a mari

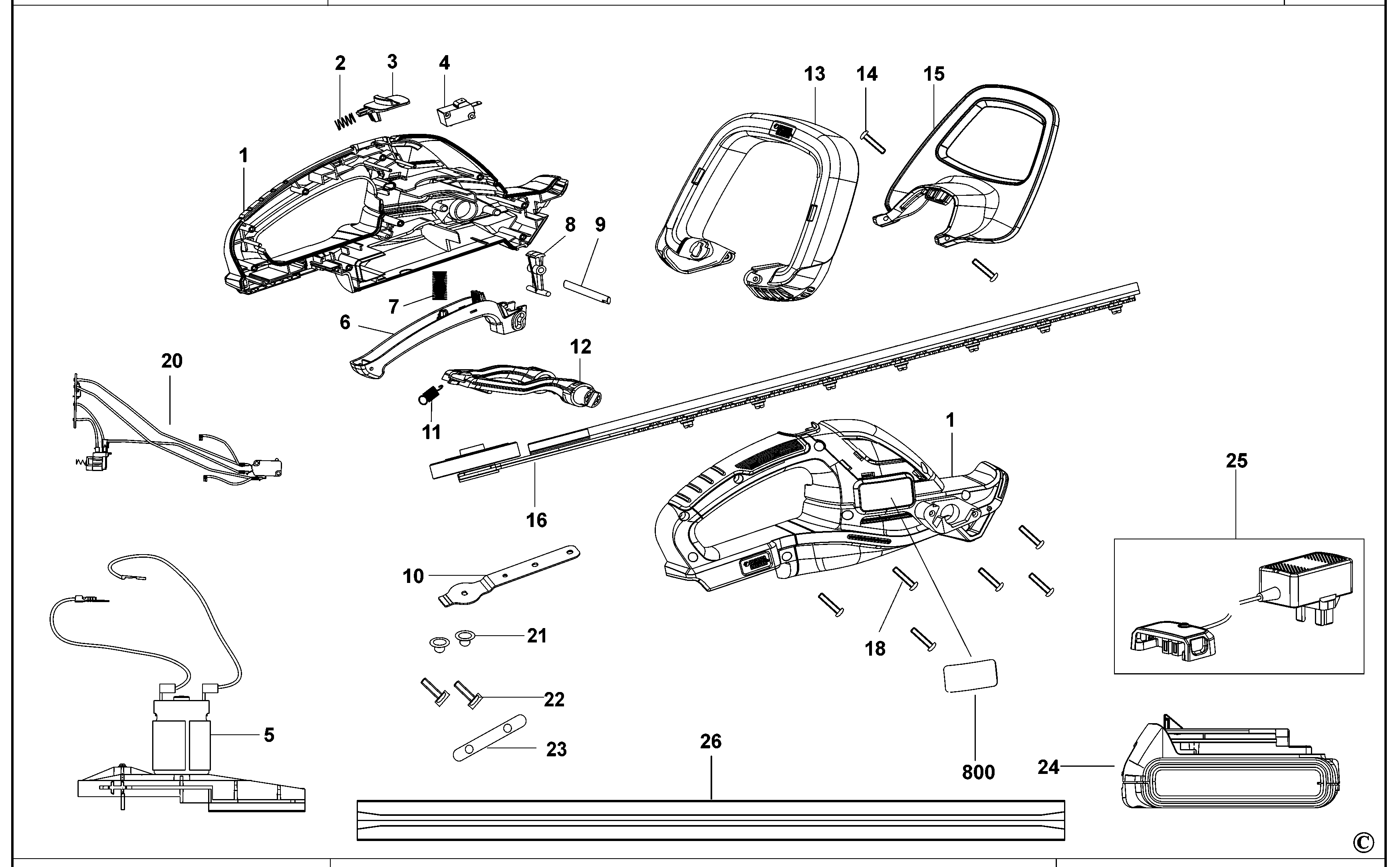

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	MOTOR HOUSING SA (90572594N)	102⁴¹ RON
2	1	1	SPRING (90572096)	5⁵⁸ RON
3	1	1	LEVER (90565890)	7⁸¹ RON
4	1	1	SWITCH (90553427)	21²⁴ RON
5	1	1	MOTOR SA (90572628-03SV)	154⁶⁹ RON
6	1	1	LEVER (90565801)	8⁹³ RON
7	1	1	SPRING (806128)	5⁵⁸ RON
8	1	1	LEVER (90578043)	8⁹³ RON
9	1	1	AXLE (90597621)	6⁶⁸ RON
10	1	1	PLATE (90570808)	14⁵² RON
11	1	1	SPRING (90573282)	5⁵⁸ RON
12	1	1	BRACKET (90565176)	14⁵² RON
13	1	1	HANDLE SA (90615518)	66⁸⁸ RON
14	1	2	SCREW (90577627)	5⁵⁸ RON
15	1	1	GUARD (90577004)	19⁰ RON
15	1	1	GUARD SA (NA714164)	17⁷² RON
16	1	1	BLADE AND GEAR SA (90597357)	249⁶² RON
18	1	13	SCREW (747329)	5⁵⁸ RON
20	1	1	PCB SA (90583185)	202¹⁶ RON
21	1	2	BLADE SPACER (376614-01)	7⁸¹ RON
22	1	2	BOLT (90527921)	5⁵⁸ RON
23	1	1	PLATE (90568498)	7⁸¹ RON
24	1	1	BATTERY 18V - 2.0AH - 36WH (N879820)	407³⁴ RON
24	1	1	90617054	-	Indisponibil
24	1	1	90596291N	-	Indisponibil
25	1	1	CHARGER SA (90590289-05)	154⁶⁹ RON
25	1	1	90590289-01	-	Indisponibil
26	1	1	SHEATH (90576650-04)	17⁷² RON
800	1	1	90612636	-	Indisponibil
800	1	1	NA145824	-	Indisponibil
