Top » Piese de schimb » PIESE BLACK & DECKER » PW1450TDL Type 1

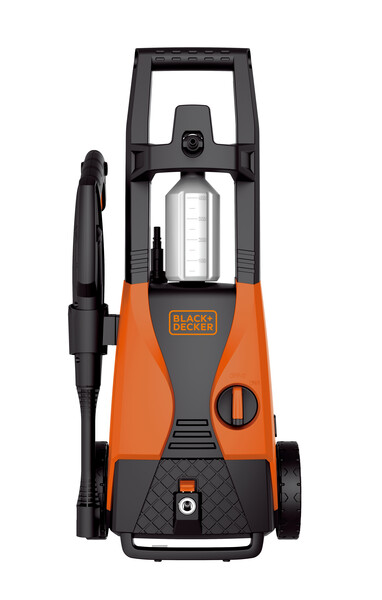

MASINA DE SPALAT CU PRESIUNE BLACK+DECKER PW1450TDL Type 1
[PW1450TDL Type 1]
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER PW1450TDL Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER PW1450TDL Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER PW1450TDL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (5170040-75) 40734 RON
2 1 1 RING (5170040-76) 588 RON
3 1 4 SCREW (5170040-77) 588 RON
4 1 1 BEARING (5170040-78) 1933 RON
5 1 1 Gear (5170040-79) 1933 RON
6 1 1 SEAL (5170040-80) 944 RON
7 1 1 CYLINDER (5170040-81) 3954 RON
8 1 1 SHAFT (5170040-82) 2556 RON
9 1 1 BEARING (5170040-83) 3268 RON
10 1 1 PLATE (5170040-84) 114 RON
11 1 1 BEARING (5170040-85) 3268 RON
12 1 1 PLATE (5170040-86) 588 RON
13 1 1 WASHER (5170040-87) 588 RON
14 1 5 WASHER (5170065-76) 588 RON
15 1 3 CIRCLIP (5170040-89) 588 RON
16 1 3 CIRCLIP (5170040-90) 588 RON
17 1 3 PLUNGER (5170040-91) 1772 RON
18 1 1 O RING (5170040-92) 668 RON
19 1 2 PIN (5170040-93) 588 RON
20 1 1 FILTER (5170040-94) 588 RON
21 1 1 CONNECTOR (5170062-83) 944 RON
22 1 2 O RING (5170040-96) 588 RON
23 1 1 PUMP (5170043-31) 3954 RON
24 1 3 SEAL (5170040-97) 588 RON
25 1 3 BRACKET (5170040-98) 588 RON
26 1 1 VALVE (5170040-99) 3954 RON
27 1 1 CONNECTOR (5170041-00) 1630 RON
28 1 1 CLIP (5170041-01) 588 RON
29 1 1 BUTTON (5170041-02) 588 RON
30 1 1 VALVE (5170041-03) 82 RON
31 1 1 SWITCH SA (5170041-04) 5370 RON
32 1 3 VALVE (5170041-05) 668 RON
33 1 3 SEAL (5170041-06) 588 RON
34 1 1 O RING (5170041-07) 588 RON
35 1 1 SCREW (5170041-08) 588 RON
36 1 3 VALVE (5170041-09) 668 RON
37 1 3 VALVE (5170041-10) 668 RON
38 1 3 O RING (5170041-11) 588 RON
39 1 1 COVER (5170041-12) 2556 RON
40 1 4 SCREW (5170041-13) 588 RON
41 1 1 CYLINDER SA (5170043-32) 16689 RON
42 1 3 PLUNGER (5170041-14) 4355 RON
43 1 1 PUMP SA (5170043-33) 16689 RON
44 1 1 COVER SA (5170043-34) 6688 RON
45 1 1 BRACKET (5170041-16) 588 RON
46 1 11 SCREW (5170041-17) 588 RON
47 1 1 COVER (5170041-18) 114 RON
48 1 1 COVER REAR (5170041-19) 2556 RON
49 1 2 COVER (5170062-85) 82 RON
50 1 2 ROLLER (5170062-86) 2182 RON
51 1 1 COVER REAR (5170041-21) 5370 RON
52 1 19 SCREW (5170041-22) 588 RON
53 1 1 HOOK (5170041-24) 944 RON
54 1 1 HOOK (5170041-25) 668 RON
55 1 1 CORD (5170066-34) 15469 RON
56 1 2 SCREW (5170041-26) 588 RON
57 1 1 PLATE (5170041-27) 588 RON
58 1 1 SHEATH (5170041-28) 588 RON
59 1 1 CORDSET (5170041-29) 10241 RON
60 1 1 COVER (5170041-30) 2556 RON
61 1 1 SWITCH (5170041-31) 1933 RON
62 1 1 SWITCHBOX (5170041-32) 944 RON
63 1 1 LEVER (5170041-33) 588 RON
64 1 1 HANDLE (5170062-89) 3268 RON
65 1 1 HOUSING FRONT (5170041-36) 4827 RON
66 1 1 BOARD (5170041-37) 114 RON
67 1 1 BOARD (5170041-38) 114 RON
68 1 1 KNOB (5170041-39) 588 RON
69 1 1 PLATE (5170041-40) 588 RON
70 1 2 GASKET (5170041-41) 588 RON
71 1 1 CONNECTOR (5170045-11) 1933 RON
72 1 1 COUPLING (5170042-74) 2556 RON
73 1 1 HOSE (5170062-90) 15469 RON
74 1 1 BOTTLE (5170041-44) 3268 RON
75 1 1 TIP (5170041-45) 4827 RON
76 1 1 HANDLE SA D57,DE8 (5170041-46) 5370 RON
77 1 1 EXTENSION (5170041-47) 741 RON
78 1 1 EXTENSION (5170041-48) 5370 RON
79 1 1 PUMP SA (5170041-15) 40734 RON
80 1 1 CAPACITOR (5170041-34) 668 RON
821 1 1 RATING LABEL (NA180156) 588 RON
