Top » Piese de schimb » PIESE BLACK & DECKER » BXPW2500-E Type 1

MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
[BXPW2500-E Type 1]
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE BLACK+DECKER BXPW2500-E Type 1
Click pentru a mari

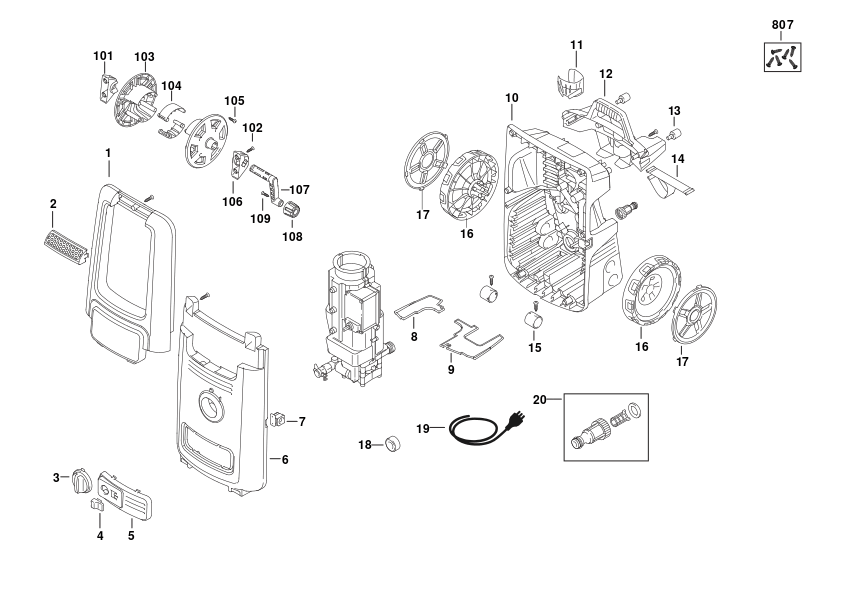

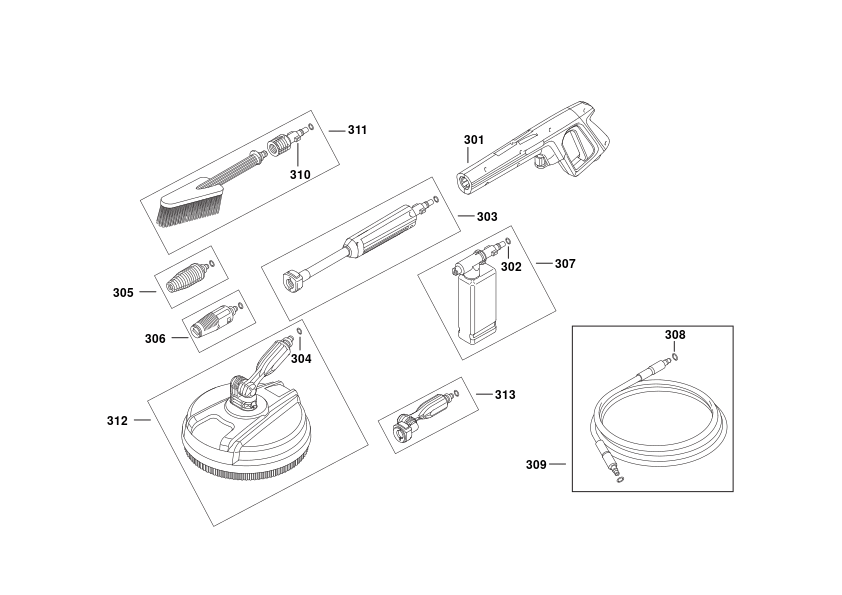

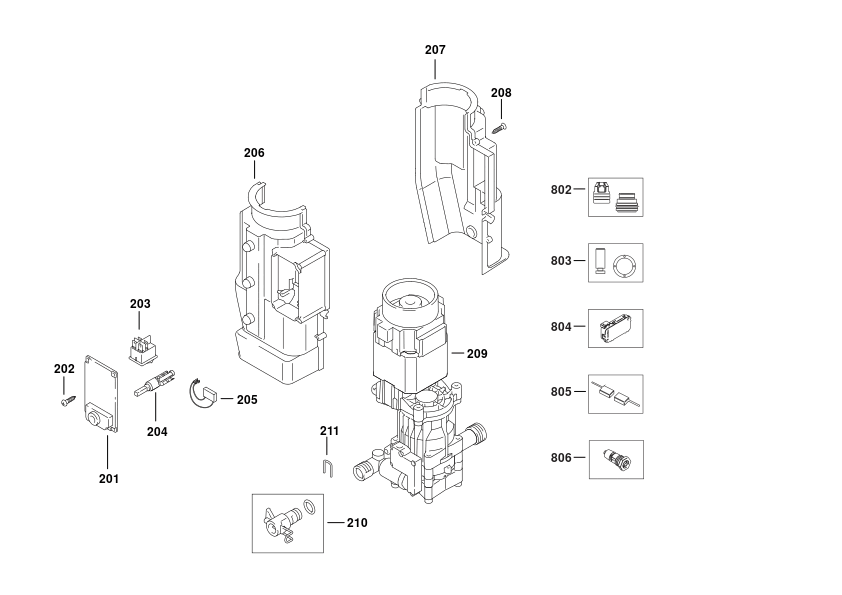

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (5140205-68) 9012 RON
2 1 1 KNOB (5140205-86) 2556 RON
3 1 1 COVER (4380660) 9012 RON
4 1 1 KNOB (4380251) 1318 RON
5 1 1 COVER (4380670) 13697 RON
6 1 1 LEVER (5140205-70) 114 RON
7 1 1 CASTING SA (4380650) 16689 RON
8 1 1 FOOT (5140205-83) 9012 RON
9 1 1 X94ND (1004455-07) 114 RON
10 1 1 COVER (4380590) 1772 RON
11 1 1 COVER (4380580) 114 RON
12 1 1 BASE SA (4380491) 20216 RON
13 1 1 CARRIER (4380540) 9012 RON
14 1 2 FOOT (1004712-16) 3268 RON
15 1 1 CARRIER (4580590) 5370 RON
16 1 1 SUPPORT (4383400) 3954 RON
17 1 1 CARRIER (5140205-76) 944 RON
18 1 2 WHEEL (5140205-80) 9012 RON
19 1 2 GUARD (5140205-79) 3954 RON
101 1 1 BRACKET (5140205-75) 2556 RON
102 1 4 SCREW (50943) 1630 RON
103 1 2 PLATE (5140126-71) 5370 RON
104 1 2 SHIM (5140205-92) 1772 RON
105 1 4 SCREW (50943) 1630 RON
106 1 1 BRACKET (5140205-91) 1630 RON
107 1 1 LEVER (5140205-90) 3268 RON
108 1 1 KNOB (5140205-84) 1318 RON
109 1 1 SCREW (5460700) 668 RON
201 1 1 PUMP SA (4383820) 113822 RON
202 1 1 COVER (4720490) 82 RON
203 1 1 SWITCH (4720610) 6688 RON
204 1 1 PIN (4720470) 114 RON
205 1 1 CAPACITOR KIT (3086010) 10241 RON
206 1 1 SUPPORT (4720480) 1933 RON
207 1 4 SCREW (5480500) 668 RON
208 1 1 SPRING (4720500) 944 RON
209 1 1 SWITCH (4720610) 6688 RON
210 1 1 PIN (4720470) 114 RON
211 1 1 COVER (4720490) 82 RON
212 1 1 SHAFT (4383370) 6688 RON
215 1 1 PCB SA (4720620) 21676 RON
216 1 1 COUPLING (4382480) 10241 RON
217 1 1 FORK (1004512-08) 4137 RON
219 1 1 CORDSET (1004700-91) 16689 RON
301 1 1 HANDLE SA (4381480) 18568 RON
302 1 3 O-RING (5140193-41) 668 RON
303 1 1 EXTENSION (5140205-97) 13697 RON
304 1 3 O-RING (5140206-02) 668 RON
305 1 1 LANCE HEAD (5140205-98) 13697 RON
306 1 1 NOZZLE (4381830) 9012 RON
307 1 1 TANK (5140206-00) 4355 RON
308 1 2 O-RING (5140193-42) 668 RON
309 1 1 ADAPTOR (1004512-28) 4137 RON
310 1 1 BRUSH (1004455-56) 9012 RON
311 1 2 O-RING (5140193-42) 668 RON
312 1 1 BRUSH-MINI PATIO (3085860) 23244 RON
313 1 1 COUPLING SA (1004712-93) 3954 RON
802 1 1 SERVICE KIT (1004455-19) 27287 RON
803 1 1 3081270 - Indisponibil
804 1 1 KIT-TSS KIT (4384420) 10241 RON
805 1 1 BRUSH PAIR (3082600) 741 RON
806 1 1 VALVE KIT-TSS (4384300) 13697 RON
807 1 1 SCREW KIT (4381470) 3268 RON
