Top » Piese de schimb » PIESE BLACK & DECKER » BLD683D1XK Type 1

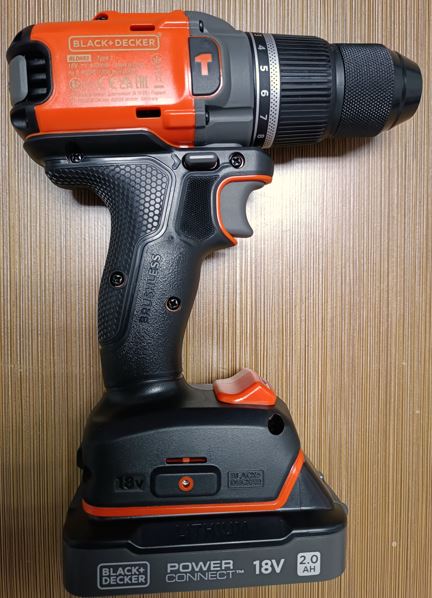

MASINA DE GAURIT/INSUSURBAT CU ACUMULATOR BLACK+DECKER BLD683D1XK Type 1
[BLD683D1XK Type 1]
MASINA DE GAURIT/INSUSURBAT CU ACUMULATOR BLACK+DECKER BLD683D1XK Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT/INSUSURBAT CU ACUMULATOR BLACK+DECKER BLD683D1XK Type 1
Click pentru a mari
MASINA DE GAURIT/INSUSURBAT CU ACUMULATOR BLACK+DECKER BLD683D1XK Type 1
Click pentru a mari

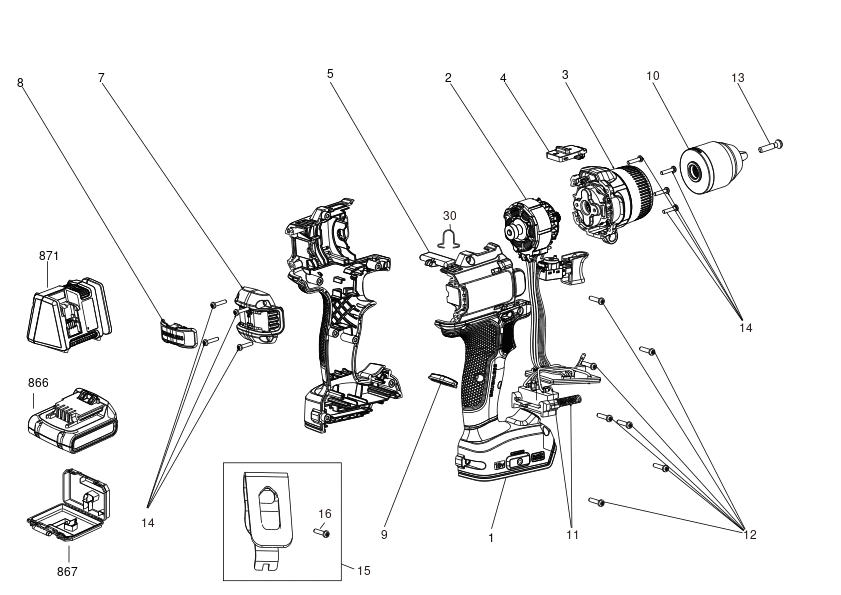

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA551687) 12361 RON
2 1 1 MOTOR SA (NA643226) 42426 RON
3 1 1 GEARBOX SA (NA477351) 20216 RON
4 1 1 BUTTON (NA500087) 1630 RON
5 1 1 ACTUATOR FWD/REV (NA399518) 668 RON
7 1 1 END CAP (NA363730) 114 RON
8 1 1 COVER (NA505296) 668 RON
9 1 1 LENS (NA517217) 668 RON
10 1 1 CHUCK (NA421836) 6688 RON
11 1 2 SPRING (5100035-03) 558 RON
12 1 7 SCREW (5106167-00) 558 RON
13 1 1 SCREW (149518-01) 781 RON
14 1 8 SCREW (NA534920) 588 RON
15 1 1 HOOK (NA425434) 1772 RON
16 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
30 1 1 SPRING (NA501468) 588 RON
866 1 1 BATTERY (NA599479) 46247 RON
867 1 1 KITBOX (NA407425) 12361 RON
871 1 1 CHARGER 230V (N517390) 16689 RON
