Top » Piese de schimb » PIESE BLACK & DECKER » KR60QC Type 1

MASINA DE GAURIT CU PERCUTIE BLACK+DECKER KR60QC Type 1
[KR60QC Type 1]
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER KR60QC Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER KR60QC Type 1
Click pentru a mari

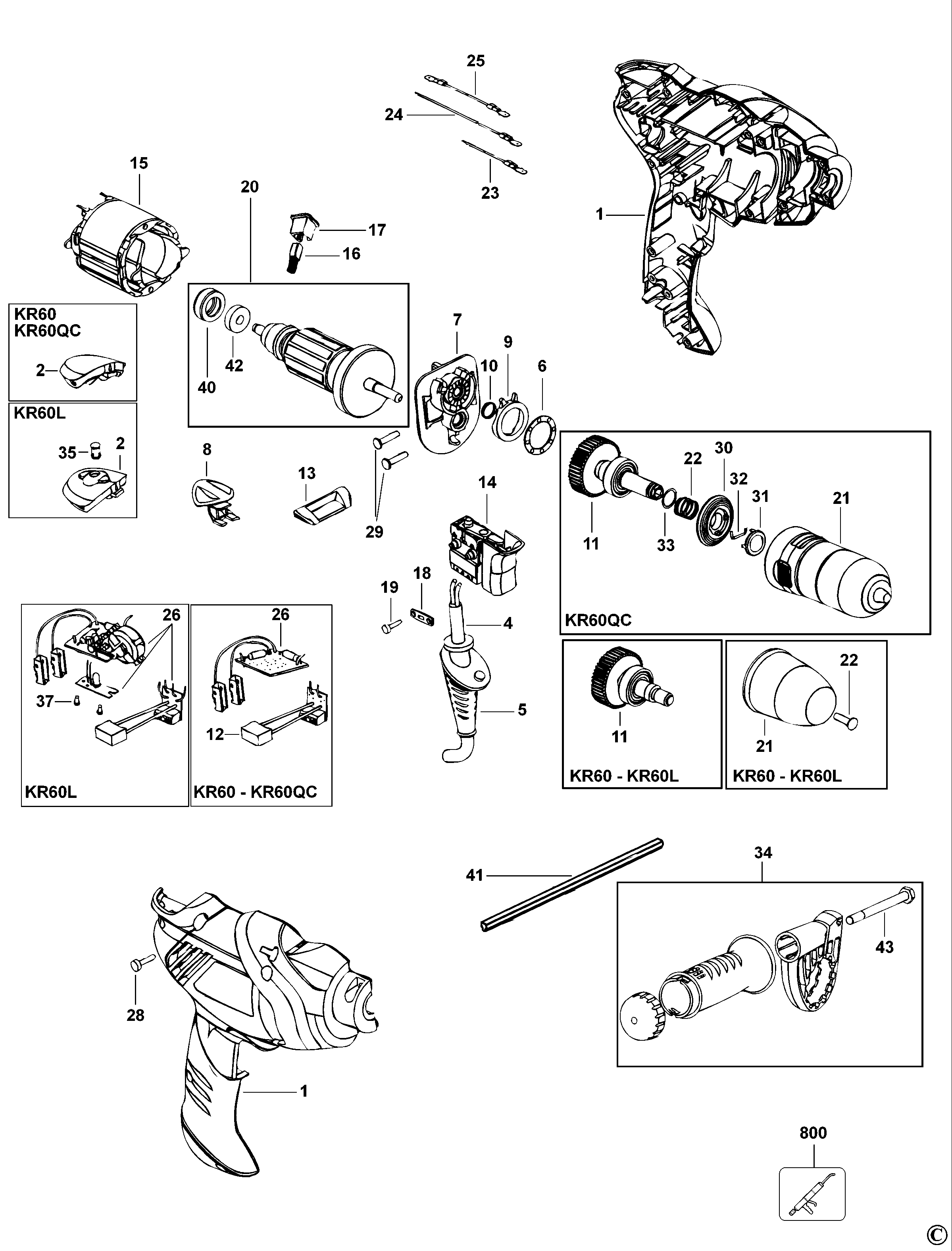

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (617329-00) 10512 RON
2 1 1 CAP (614724-00) 558 RON
4 1 1 CORD SET CH (330080-05) 3466 RON
5 1 1 CORD PROTECTOR (611721-00) 781 RON
6 1 1 THRUST RACE (892261) 781 RON
7 1 1 SA BEARING HOUSING (374216-00) 5031 RON
8 1 1 SELECTOR (613494-00) 781 RON
9 1 1 CAM RING (374189-00) 781 RON
10 1 1 SPRING (821986) 558 RON
11 1 1 615672-00 - Indisponibil
12 1 1 PCB SA (615538-00) 2347 RON
13 1 1 ACTUATOR FWD/REV (614813-00) 781 RON
14 1 1 SWITCH (615133-00) 11519 RON
15 1 1 MOTOR SA (488507-00) 17335 RON
15 1 1 FIELD SA (576374-12) 7940 RON
16 1 2 BRUSH 230V SA (570544-00) 105 RON
17 1 2 BRUSH HOLDER (875735-00) 558 RON
17 1 2 BRUSH BOX HOLDER (875735) 558 RON
18 1 1 CLAMP CORD CORNER (329301-00) 558 RON
19 1 1 SCREW (330019-38) 558 RON
20 1 1 MOTOR SA (488507-00) 17335 RON
20 1 1 ARMATURE SA (580813-02) 1891 RON
21 1 1 615144-00 - Indisponibil
22 1 1 615933-00 - Indisponibil
23 1 1 LEAD SA (615145-01) 893 RON
24 1 1 LEAD SA (615145-02) 781 RON
25 1 1 LEAD SA (615145-00) 893 RON
26 1 1 PCB SA (615532-00) 2795 RON
28 1 9 Screw M3.5X16 T15 (330019-03) 558 RON
29 1 2 SCREW (619657-00) 558 RON
29 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
30 1 1 614604-00 - Indisponibil
31 1 1 614784-00 - Indisponibil
32 1 1 614783-00 - Indisponibil
33 1 1 615610-00 - Indisponibil
34 1 1 HANDLE SA (614670-01) 3018 RON
40 1 1 MOUNTING RING (812970) 558 RON
42 1 1 BEARING BALL (580198-00) 1452 RON
42 1 1 BEARING D7X19X6 607-2Z C3 (330003-02) 4137 RON
43 1 1 BOLT M8 X 95 HEX (813918) 781 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
