MASINA DE GAURIT CU PERCUTIE BLACK+DECKER CD501CRE Type 4 - 5
[CD501CRE Type 4 - 5]
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER CD501CRE Type 4 - 5
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER CD501CRE Type 4 - 5
Click pentru a mari

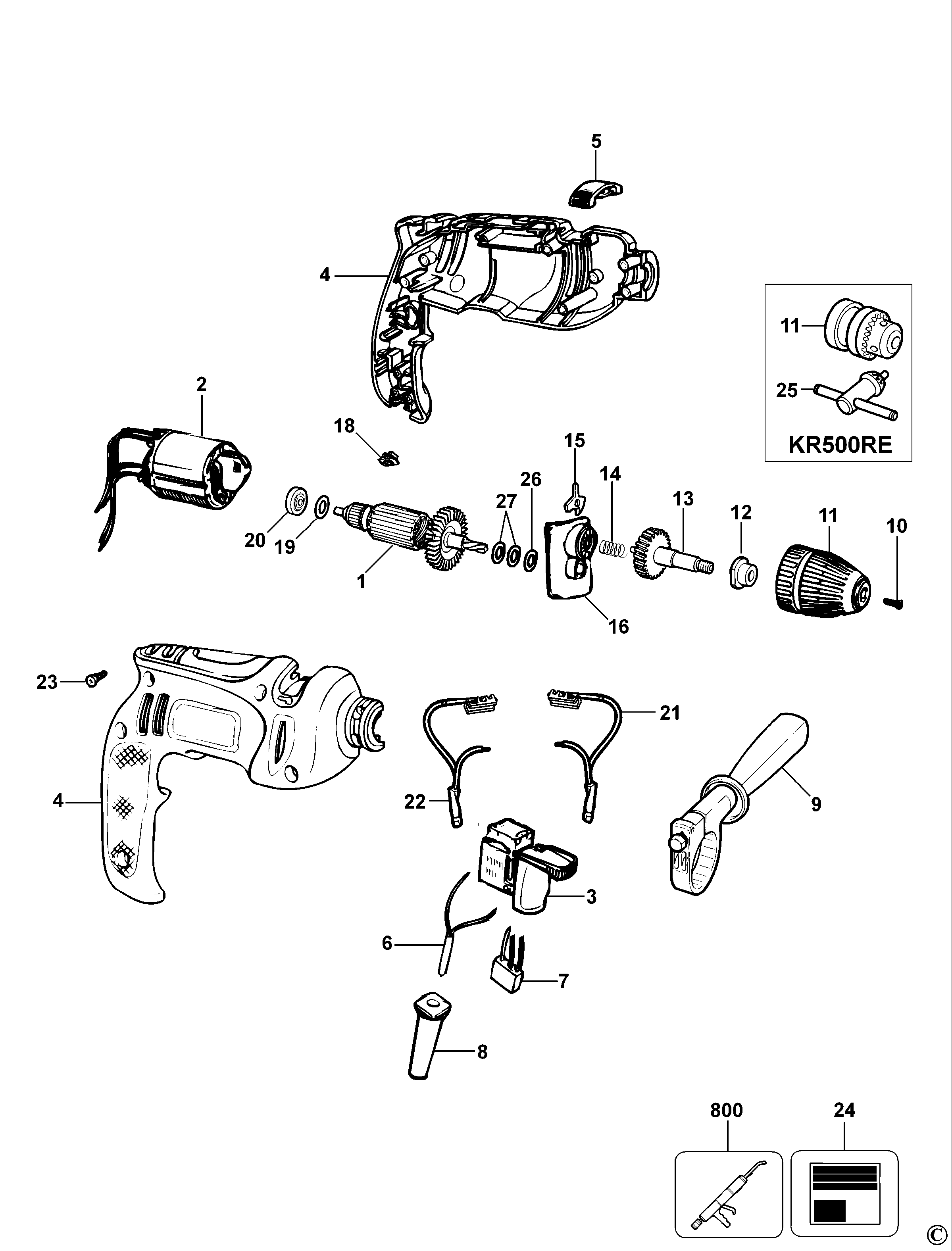

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (581856-00) 15993 RON
1 1 1 ARMATURE 230V (581856-03) 10512 RON
2 1 1 FIELD SA (581857-00) 6821 RON
3 1 1 SWITCH SA (581868-04) 6821 RON
3 1 1 SWITCH SA (581868-00) 10512 RON
4 1 1 CLAMSHELL SET (581865-00) 5031 RON
5 1 1 ACTUATOR (375164-02) 558 RON
6 1 1 CORDSET QS (330048-05) 2347 RON
7 1 1 CAPACITOR (581872-00) 190 RON
8 1 1 CORD PROTECTOR (770235) 558 RON
9 1 1 SA SIDE HANDLE (376556-14) 2347 RON
10 1 1 Screw M5X18 (805434) 558 RON
11 1 1 CHUCK KEYLESS 13MM 2 SLEEVE 3/8 THREAD cod vechi 586589-00 (586589-00L) 11519 RON
11 1 1 CHUCK SA (479902-00) 12861 RON
11 1 1 KEYLESS CHUCK (580569-00) 12861 RON
12 1 1 SLEEVE BEARING (574297-00) 781 RON
13 1 1 SPINDLE SA (581863-00) 4137 RON
14 1 1 SPRING (821986) 558 RON
15 1 1 THRUST PLATE (375156-00) 558 RON
16 1 1 629984-00OUSING (581860-01) 3466 RON
16 1 1 BEARING HOUSING (581860-00) 4137 RON
18 1 2 BRUSH BOX HOLDER (875735) 558 RON
19 1 1 WASHER (051407-00) 558 RON
19 1 1 51407-00 - Indisponibil
20 1 1 BEARING BUSH (158478-00) 105 RON
21 1 1 BRUSHBOX & CHOKE (588679-00) 2124 RON
21 1 1 BRUSHBOX CHOKE (587211-00) 2347 RON
22 1 1 BRUSHBOX & CHOKE (588679-01) 2124 RON
22 1 1 BRUSHBOX CHOKE (587211-01) 2347 RON
23 1 7 SCREW (747329) 558 RON
24 1 1 RATING PLATE (583275-12) 781 RON
26 1 1 WASHER SPRING (157315-00) 558 RON
27 1 2 WASHER FIBRE (037381-00) 2795 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
