Top » Piese de schimb » PIESE BLACK & DECKER » BEHS03 Type 1

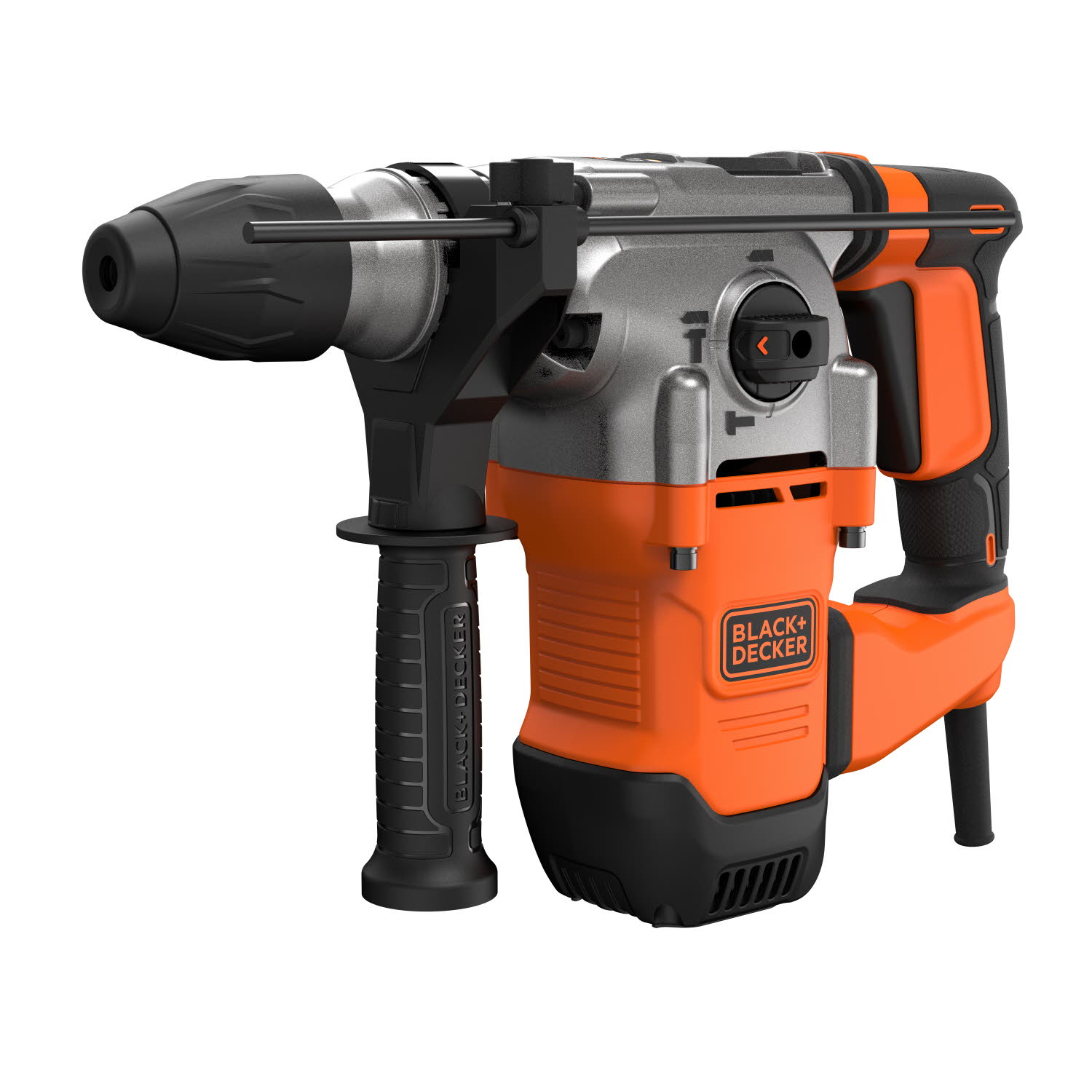

MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS03 Type 1
[BEHS03 Type 1]
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS03 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS03 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS03 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS03 Type 1
Click pentru a mari

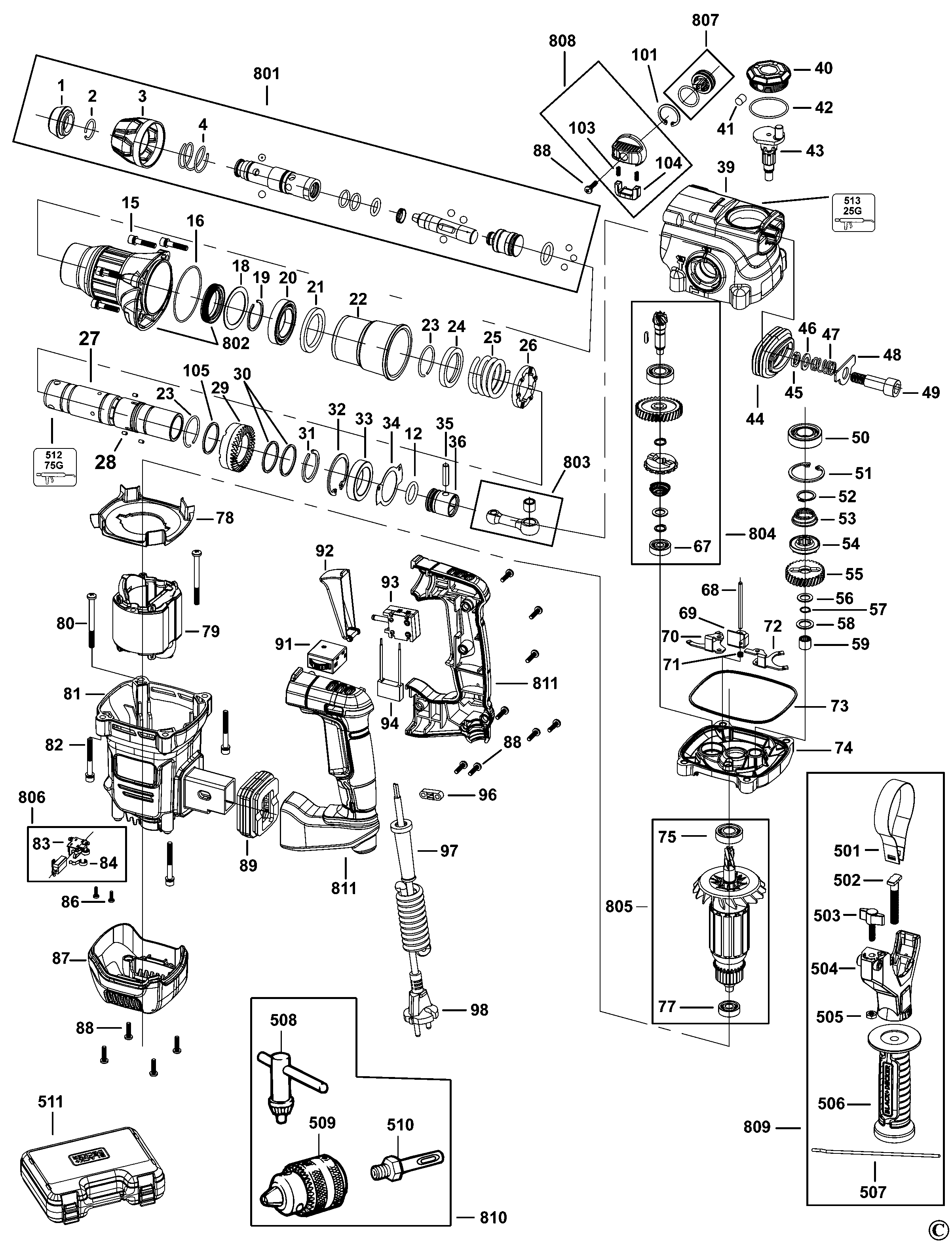

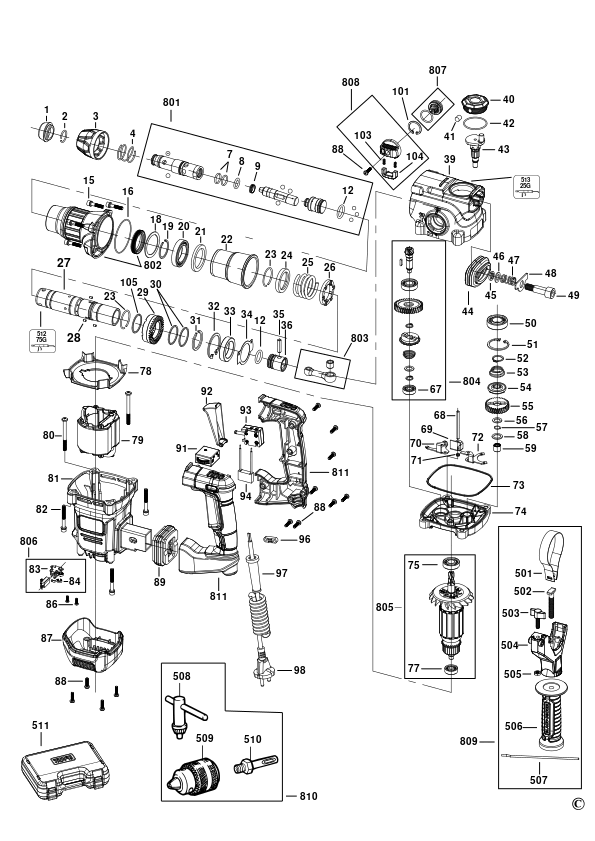

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOOT (1004774-16) 944 RON
2 1 1 CIRCLIP (5140144-59) 588 RON
3 1 1 COLLAR (1004774-17) 2796 RON
4 1 1 SPRING (1004774-18) 82 RON
5 1 1 SPINDLE SA (1004774-19) 13697 RON
7 1 2 O RING (1004775-46) 588 RON
8 1 1 O RING (1004775-47) 588 RON
9 1 1 O RING (1004775-48) 588 RON
12 1 2 O RING (1004775-49) 944 RON
15 1 1 SCREW (1004774-21) 588 RON
16 1 1 O RING (1004774-22) 82 RON
18 1 1 WASHER (1004774-23) 588 RON
19 1 1 RING (1004774-24) 588 RON
20 1 1 BEARING (1004774-25) 3268 RON
21 1 1 RING (1004774-26) 588 RON
22 1 1 BUSH (1004774-27) 2182 RON
23 1 2 RING (1004774-28) 588 RON
24 1 1 HOLDER (1004774-29) 1318 RON
25 1 1 SPRING (1004774-30) 82 RON
26 1 1 CLUTCH (1004774-31) 944 RON
27 1 1 CYLINDER (1004774-32) 15469 RON
28 1 3 PIN (1004774-33) 588 RON
29 1 1 Gear (1004774-34) 12361 RON
30 1 2 WASHER (1004774-35) 588 RON
31 1 1 RING (1004774-36) 588 RON
32 1 1 CIRCLIP (1004774-37) 588 RON
33 1 1 BUSH (1004774-38) 114 RON
34 1 1 BAFFLE (1004774-39) 82 RON
35 1 1 PIN (5140147-41) 588 RON
36 1 1 PISTON (1004774-40) 1933 RON
39 1 1 GEARBOX (1004774-42) 15469 RON
40 1 1 COVER (1004774-43) 2182 RON
41 1 1 SEAL (1004774-44) 588 RON
42 1 1 O RING (5140144-93) 588 RON
43 1 1 CRANKSHAFT (1004774-45) 3954 RON
44 1 1 DAMPER (1004774-46) 1318 RON
45 1 1 RING (1004774-47) 588 RON
46 1 1 WASHER (1004774-48) 588 RON
47 1 1 SPRING (1004774-49) 82 RON
48 1 1 WASHER (1004774-50) 588 RON
49 1 1 SCREW (1004774-51) 1318 RON
50 1 1 BEARING (1004774-52) 1933 RON
51 1 1 CIRCLIP (5140144-99) 588 RON
52 1 1 CIRCLIP (5140145-00) 588 RON
53 1 1 SPRING (1004774-53) 588 RON
54 1 1 CLUTCH (1004774-54) 6688 RON
55 1 1 Gear (1004774-55) 3954 RON
56 1 1 WASHER (1004774-56) 588 RON
57 1 1 RING (1004774-57) 588 RON
58 1 1 WASHER (1004774-58) 588 RON
59 1 1 BEARING (1004774-59) 82 RON
67 1 1 BEARING (1004774-61) 2556 RON
68 1 1 GUIDE (1004774-62) 588 RON
69 1 1 STOP PLATE (1004774-63) 82 RON
70 1 1 SELECTOR FORK (1004774-64) 588 RON
71 1 1 SPRING (1004774-65) 588 RON
72 1 1 SELECTOR FORK (1004774-66) 588 RON
73 1 1 SEAL (1004774-67) 82 RON
74 1 1 COVER (1004774-68) 5370 RON
75 1 1 BEARING (1004775-11) 3268 RON
77 1 1 BEARING (5140145-15) 2556 RON
78 1 1 FAN COVER (1004774-70) 668 RON
79 1 1 FIELD (1004774-71) 16689 RON
80 1 2 SCREW (5140145-16) 668 RON
81 1 1 FIELDCASE (1004774-72) 10241 RON
82 1 4 SCREW (1004774-73) 588 RON
83 1 1 Carbon Brush Holder Pair (5140145-20) 2182 RON
84 1 2 SPRING (5140145-23) 588 RON
86 1 2 SCREW (5140145-22) 588 RON
87 1 1 COVER (1004774-75) 3954 RON
88 1 13 SCREW (1004774-76) 588 RON
89 1 1 DAMPER (1004774-77) 1318 RON
91 1 1 POTENTIOMETER SA (1004774-80) 10241 RON
92 1 1 TRIGGER (1004774-81) 668 RON
93 1 1 SWITCH (1004774-82) 13697 RON
94 1 1 CAPACITOR (1004774-83) 82 RON
96 1 1 CORDCLAMP (1004774-84) 588 RON
97 1 1 CORD PROTECTOR (1004774-85) 82 RON
98 1 1 CORDSET (1004774-86) 13697 RON
101 1 1 CIRCLIP (1004774-90) 588 RON
103 1 2 SPRING (1004774-91) 588 RON
104 1 1 BUTTON (1004774-92) 82 RON
105 1 1 WASHER (1004775-44) 588 RON
501 1 1 CLAMP (1004775-04) 1318 RON
502 1 1 BOLT (1004775-05) 82 RON
503 1 1 LOCKING SCREW (1004775-06) 82 RON
504 1 1 BRACKET (1004775-07) 944 RON
505 1 1 NUT M6 (1004775-08) 82 RON
506 1 1 SIDE HANDLE (1004775-09) 2182 RON
507 1 1 DEPTH ROD (1004775-10) 944 RON
508 1 1 CHUCK KEY (1004692-32) 781 RON
509 1 1 CHUCK (1004692-33) 5591 RON
510 1 1 ADAPTOR (1004692-34) 190 RON
511 1 1 KITBOX (1004775-01) 15469 RON
512 1 1 GREASE (1004775-02) 2556 RON
513 1 1 GREASE (1004775-03) 1318 RON
801 1 1 SPINDLE SA (1004774-19) 13697 RON
802 1 1 HEAD SA (1004774-20) 10241 RON
803 1 1 CON ROD SA (1004774-41) 3954 RON
804 1 1 GEAR SA (1004774-60) 9012 RON
805 1 1 ARMATURE SA (1004774-69) 33797 RON
806 1 1 BRUSH PAIR SA (1004774-74) 3268 RON
807 1 1 LEVER SA (1004774-88) 1318 RON
808 1 1 KNOB SA (1004774-94) 1630 RON
809 1 1 HANDLE SA (1004774-95) 741 RON
810 1 1 CHUCK SA (1004774-97) 9012 RON
811 1 1 SWITCH HANDLE (1004774-78) 6688 RON
