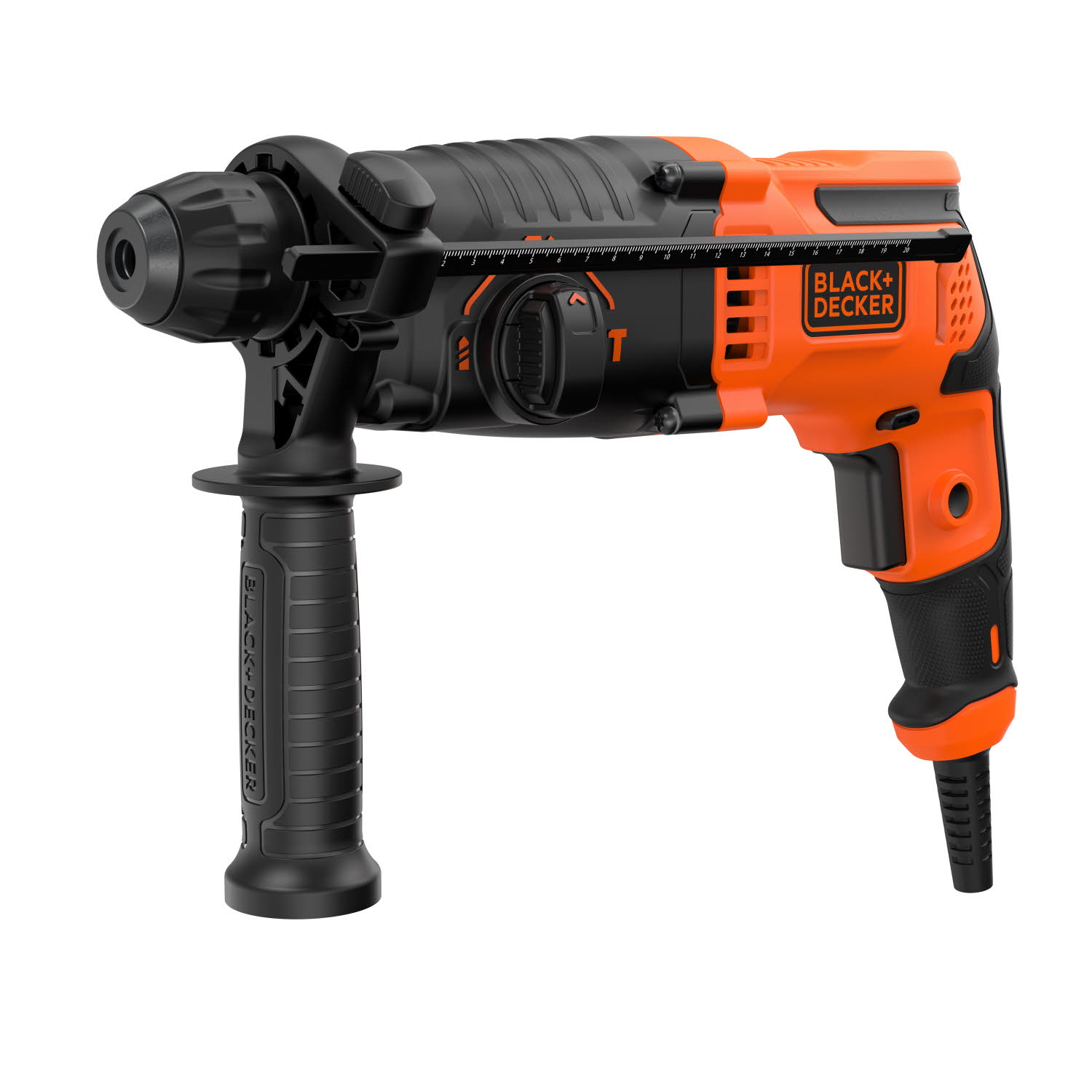

MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEHS01 Type 1
[BEHS01 Type 1]

Imagini suplimentare

Click pentru a mari

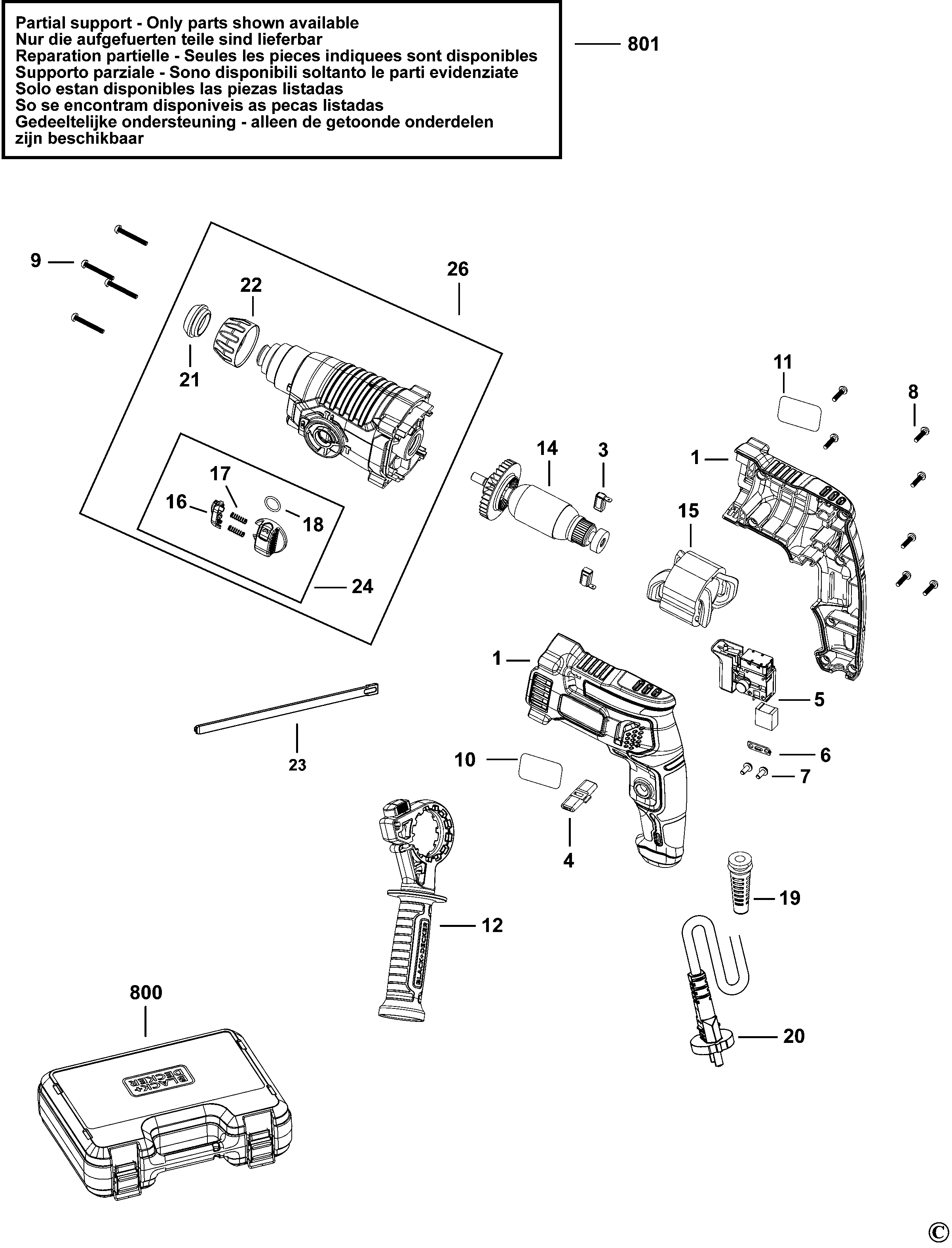

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	CLAMSHELL PAIR (N657694)	74¹ RON
3	1	1	BRUSH PAIR (N762660)	19³³ RON
4	1	1	ACTUATOR FWD/REV (N678386)	5⁸⁸ RON
5	1	1	SWITCH (N681576)	102⁴¹ RON
6	1	1	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
7	1	2	SCEW PLSTC THD FORM M4X10 T20 (330065-05)	5⁵⁸ RON
8	1	7	SCREW (330065-07)	5⁵⁸ RON
9	1	4	SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13)	5⁵⁸ RON
10	1	1	BRAND LABEL (N763513)	5⁸⁸ RON
11	1	1	RATING PLATE (N763506)	5⁸⁸ RON
12	1	1	HANDLE SA (N764100)	25⁵⁶ RON
14	1	1	ARMATURE SA (N762659)	166⁸⁹ RON
15	1	1	FIELD (N762658)	90¹² RON
16	1	1	BUTTON (N654634)	5⁸⁸ RON
17	1	2	SPRING (N738244)	5⁸⁸ RON
18	1	1	O RING (N737913)	5⁸⁸ RON
19	1	1	CORD PROTECTOR (N883300)	8² RON
20	1	1	CORDSET (N889484)	66⁸⁸ RON
21	1	1	RUBBER BOOT (N762642)	9⁴⁴ RON
22	1	1	SLEEVE (N762647)	8² RON
23	1	1	DEPTH STOP (372814-00)	12²⁹ RON
24	1	1	KNOB SA (N884496)	13¹⁸ RON
26	1	1	TRANSMISSION SA (N762649)	784⁸⁵ RON
800	1	1	KITBOX (N811941)	154⁶⁹ RON
