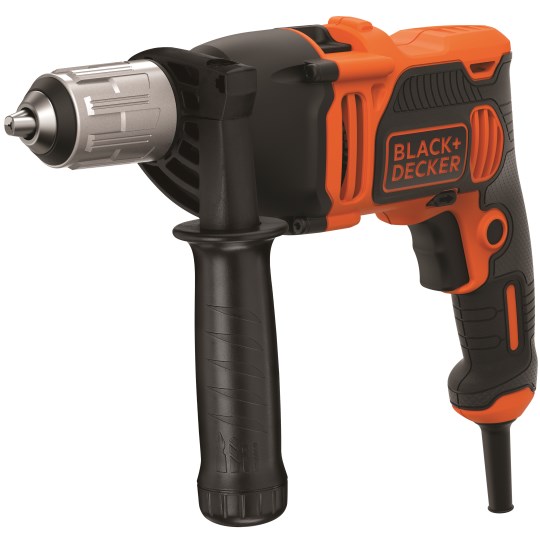

MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEH850K Type 1
[BEH850K Type 1]
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEH850K Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEH850K Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEH850K Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BEH850K Type 1
Click pentru a mari

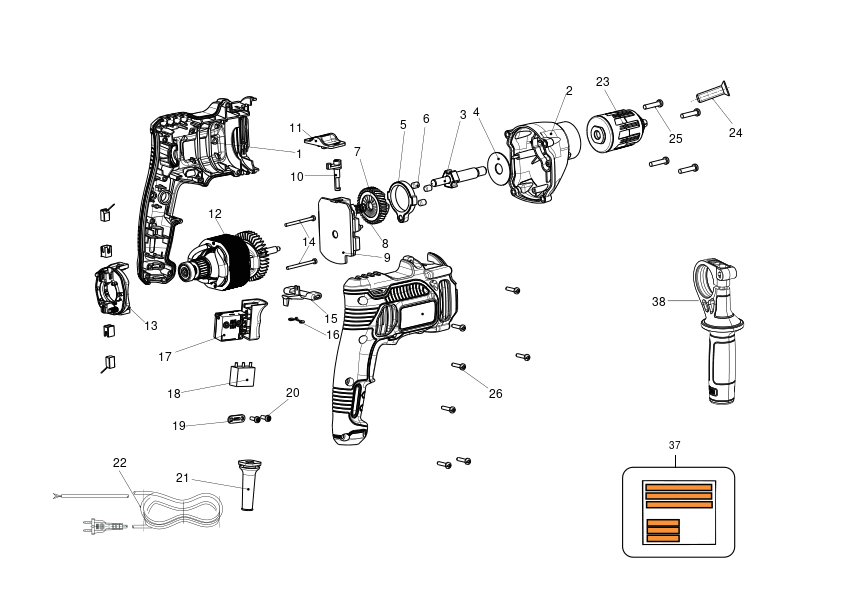

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (N506832) 9012 RON
2 1 1 GEARCASE SA (N664467) 3268 RON
3 1 1 SPINDLE (N664466) 3954 RON
4 1 1 WASHER (478753-00) 558 RON
5 1 1 CARRIER (90564351) 1117 RON
6 1 3 PIN (90571958) 558 RON
7 1 1 GEAR (90567546) 3018 RON
8 1 1 SPRING (90571237) 558 RON
9 1 1 BEARING HOUSING (90564356) 5591 RON
10 1 1 PIN SA (90641385) 114 RON
11 1 1 SELECTOR (N570029) 82 RON
12 1 1 MOTOR SA (N664468) 23244 RON
13 1 1 BRUSH SA (N508445) 4827 RON
14 1 1 Screw M3.15 X42 (330019-63) 558 RON
15 1 1 BAR (90639829) 588 RON
16 1 1 SPRING (90560638) 558 RON
17 1 1 SWITCH SA (90581326) 5591 RON
18 1 1 CAPACITOR (90574765) 2124 RON
19 1 1 CLAMP CORD CORNER (329301-00) 558 RON
20 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
21 1 1 CORD PROTECTOR (770235) 558 RON
22 1 1 CORDSET (90578997-45) 6821 RON
23 1 1 CHUCK KEYLESS (629530-01L) 741 RON
24 1 1 SCREW (N523618) 588 RON
25 1 1 SCREW PLASTITE (330019-32) 558 RON
26 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
37 1 1 N574861 - Indisponibil
37 1 1 RATING LABEL (NA118456) 588 RON
38 1 1 HANDLE SA (614670-01) 3018 RON
