Top » Piese de schimb » PIESE BLACK & DECKER » BDHR26KR Type 1

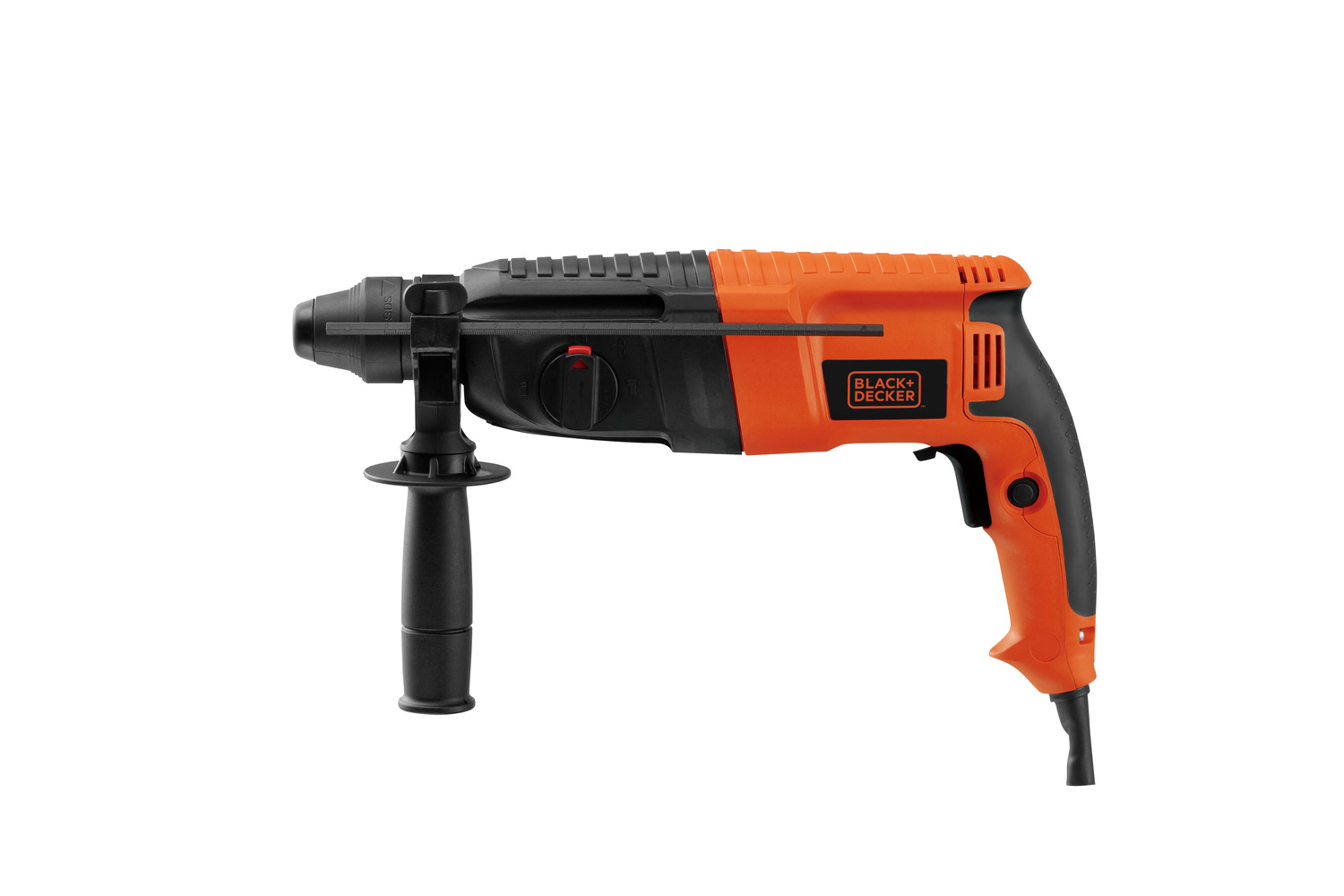

MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BDHR26KR Type 1
[BDHR26KR Type 1]
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BDHR26KR Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BDHR26KR Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE BLACK+DECKER BDHR26KR Type 1
Click pentru a mari

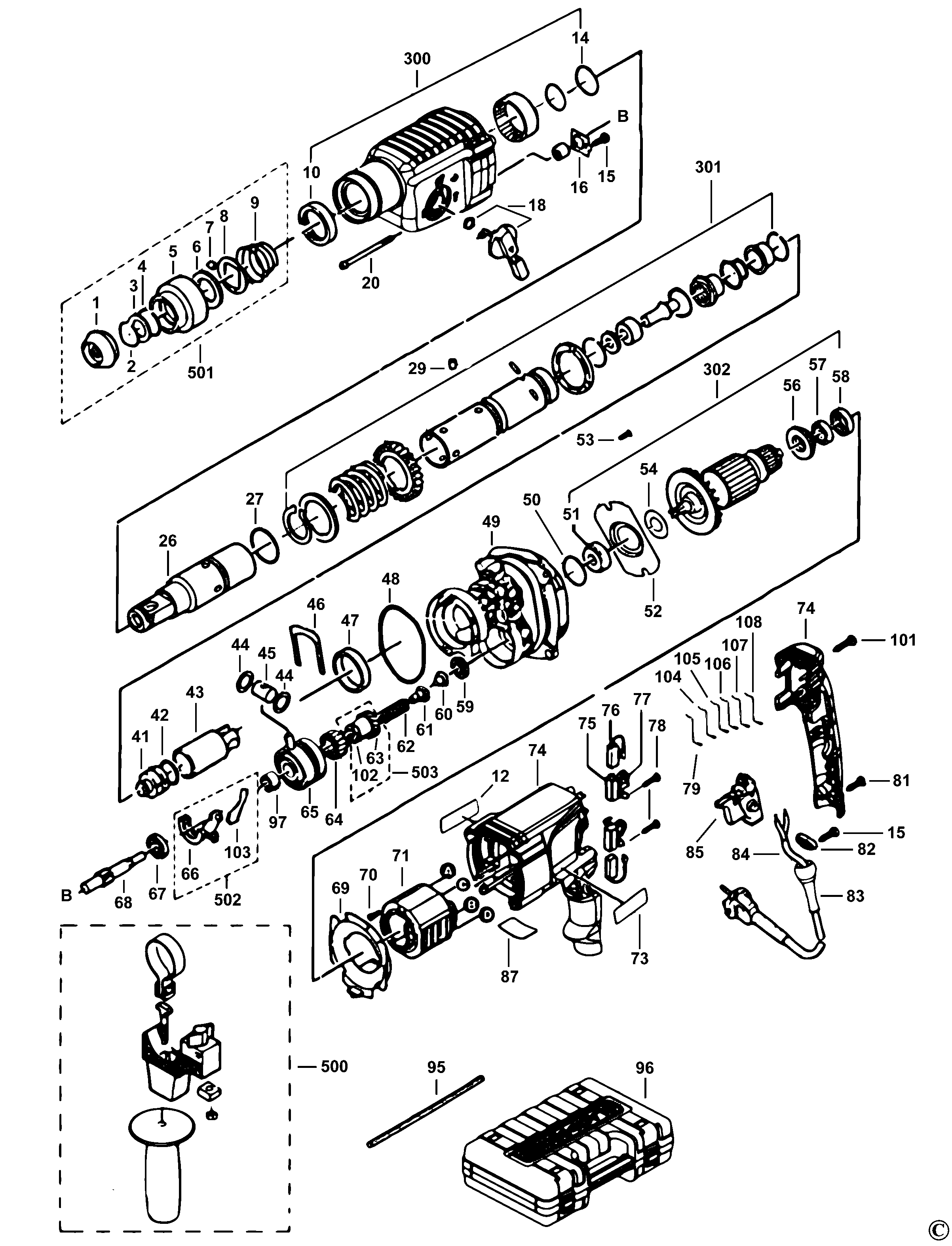

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RUBBER BOOT (4030203012) 588 RON
2 1 1 CIRCLIP (4030204013) 588 RON
3 1 1 WASHER (4030204002) 588 RON
4 1 1 CIRCLIP (4030204014) 588 RON
5 1 1 SLEEVE (4030201010) 668 RON
6 1 1 WASHER. CUP (4030104020) 668 RON
7 1 1 BALL STEEL (4030304014) 588 RON
8 1 1 RETAINER (4030104006) 588 RON
9 1 1 SPRING COMPRESSION (4030108003) 588 RON
10 1 1 SEAL (4030203009) 668 RON
14 1 1 SEAL (4030204029) 588 RON
15 1 3 SCREW (49206018) 588 RON
16 1 1 WASHER (4030204027) 588 RON
18 1 1 KNOB (4030201012) 114 RON
20 1 4 SCREW (49206025) 588 RON
26 1 1 CYLINDER (4030204023) 4827 RON
27 1 1 O RING (N880529) 588 RON
27 1 1 O RING (4030203005) 588 RON
29 1 4 PIN (4030204026) 588 RON
41 1 1 RAM (4030204003) 1933 RON
42 1 1 O RING (4030203003) 588 RON
43 1 1 PLUNGER (4030202001) 3954 RON
44 1 2 WASHER (4030104005) 588 RON
44 1 2 WASHER (N465563) 588 RON
45 1 1 PIN (4030104017) 944 RON
46 1 1 COVER (4030204007) 1318 RON
47 1 1 SLEEVE (4030204021) 668 RON
48 1 1 O RING (4030203007) 588 RON
49 1 1 COVER (4030202002) 12361 RON
50 1 1 O RING (4030203006) 588 RON
51 1 1 BEARING (49111014) 1933 RON
52 1 1 BASEPLATE (4030204028) 1772 RON
53 1 2 SCREW (49204017) 588 RON
54 1 1 WASHER (4020204007) 588 RON
56 1 1 INSULATOR (4030201025) 588 RON
57 1 1 BEARING (49111011) 944 RON
58 1 1 SLEEVE BEARING (4140303002) 588 RON
59 1 1 WASHER (4030203011) 588 RON
60 1 1 SLEEVE (4030204008) 588 RON
61 1 1 SLEEVE (4030201003) 588 RON
62 1 1 SPRING (4030208002) 588 RON
63 1 1 Gear (4030210006) 4827 RON
64 1 1 Gear (49101027) 944 RON
65 1 1 BEARING (49103002) 4827 RON
66 1 1 CLIP (4030201013) 588 RON
67 1 1 BEARING (49113002) 1318 RON
68 1 1 SPINDLE (4030210002) 3268 RON
69 1 1 DEFLECTOR (4030201005) 588 RON
70 1 2 SCREW (49206599) 588 RON
71 1 1 FIELD SA (60303002) 15469 RON
73 1 1 BRAND LABEL (N550091) 588 RON
74 1 1 FIELD CASE (N808080) 9012 RON
75 1 1 BRUSH HOLDER (4030107001) 114 RON
76 1 1 BRUSH PAIR (4030106003) 944 RON
77 1 1 SPRING BRUSH (4030108002) 588 RON
78 1 4 SCREW (49206001) 588 RON
79 1 1 LEADWIRE (N806572) 588 RON
81 1 2 SCREW-self-tapping 4*18; self-tapping 4x (49206020) 588 RON
82 1 1 CORD CLAMP (4100301008) 588 RON
83 1 1 CORD PROTECTOR (49303609) 588 RON
85 1 1 SWITCH (N806571) 741 RON
87 1 1 BRAND LABEL (4030125013) 588 RON
95 1 1 DEPTH ROD (4030101019) 588 RON
96 1 1 KIT BOX (N553092) 11337 RON
97 1 1 BEARING NEEDLE (49101023) 82 RON
101 1 1 SCREW (N547082) 588 RON
102 1 1 SLEEVE (4030210005) 2182 RON
103 1 1 SPRING (4030204030) 668 RON
104 1 1 CONNECTING WIRE (N806573) 588 RON
105 1 1 CONNECTING WIRE (N806574) 588 RON
106 1 1 CONNECTING WIRE (N806575) 588 RON
107 1 1 CONNECTING WIRE (N806576) 588 RON
108 1 1 CONNECTING WIRE (N806577) 588 RON
300 1 1 GEARCASE SA (N563252) 741 RON
301 1 1 CYLINDER SA (N563254) 21676 RON
302 1 1 ARMATURE SA (N563256) 23244 RON
500 1 1 SIDE HANDLE (4030231001) 3268 RON
501 1 1 CHUCK SA (4030231002) 3954 RON
502 1 1 CLAMP (4030231004) 2182 RON
503 1 1 GEAR SA (4030231003) 4827 RON
503 1 1 GEAR SA (4030210010) 3268 RON
