MASINA DE GAURIT CU ACUMULATOR BLACK+DECKER LI-ION144 Type 1
[LI-ION144 Type 1]

Imagini suplimentare

Click pentru a mari

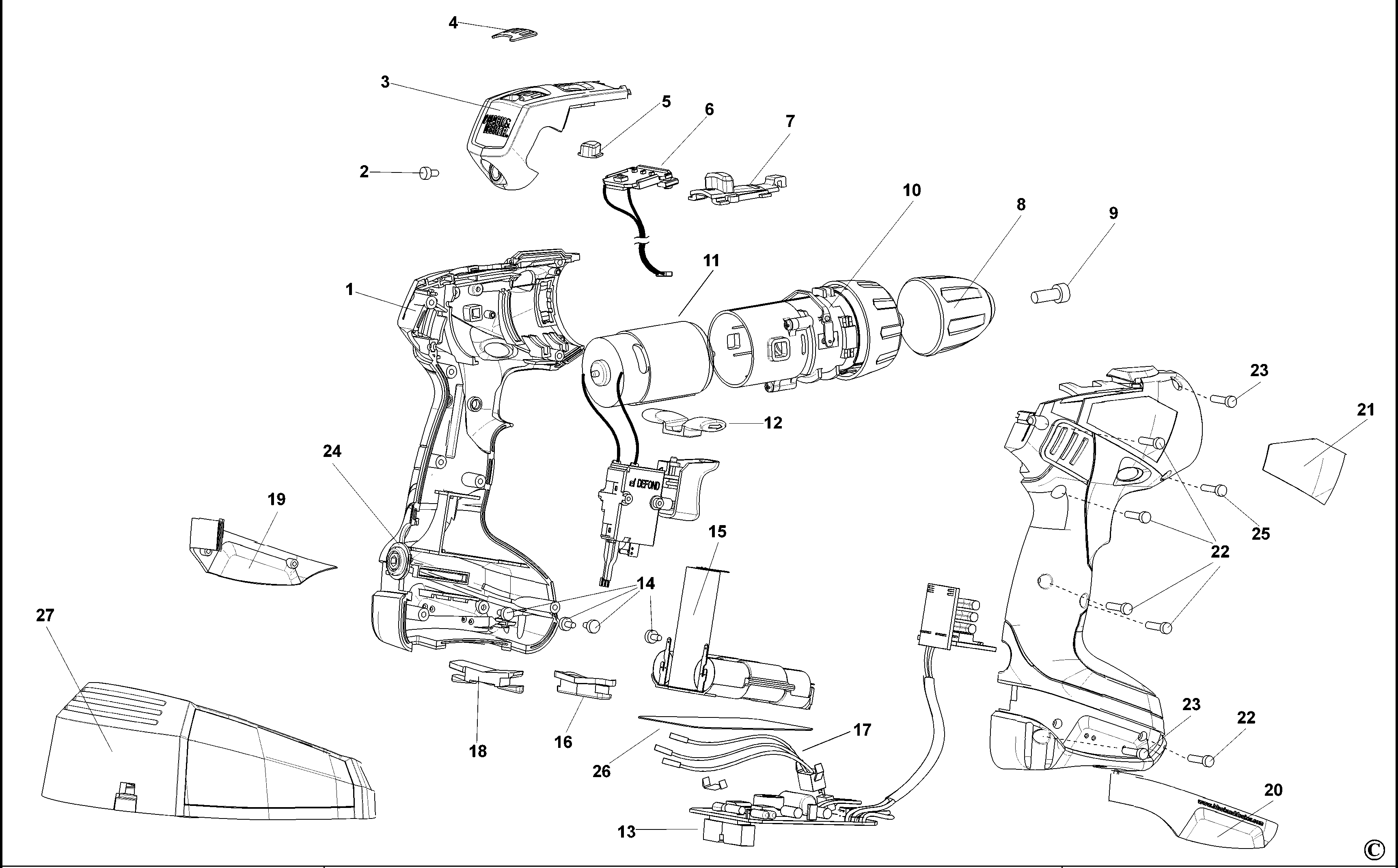

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	CLAMSHELL PAIR (90506243)	55⁹¹ RON
2	1	1	SCREW (90502371)	5⁵⁸ RON
3	1	1	COVER REAR (90502334)	8⁹³ RON
4	1	1	LABEL (90503108)	5⁵⁸ RON
5	1	1	BUTTON (90502056)	5⁵⁸ RON
6	1	1	PCB SA (90502366)	23⁴⁷ RON
7	1	1	ACTUATOR (90506244)	7⁸¹ RON
8	1	1	CHUCK (90504546)	92⁸² RON
9	1	1	SCREW (149518-01)	7⁸¹ RON
11	1	1	MOTOR & SWITCH SA (90509372)	204⁶⁷ RON
12	1	1	ACTUATOR FWD/REV (90502348)	5⁵⁸ RON
13	1	1	PCB SA (90505556)	452⁹⁷ RON
14	1	4	SCREW (90503664)	5⁵⁸ RON
16	1	1	FOOT (90508085)	5⁵⁸ RON
17	1	1	SET OF LEAD WIRES (90505555)	17⁸⁸ RON
18	1	1	FOOT (90502350)	5⁵⁸ RON
20	1	1	COVER (90502341)	7⁸¹ RON
22	1	5	SCREW (90505176)	5⁵⁸ RON
23	1	2	SCREW (90503663)	5⁵⁸ RON
24	1	1	COVER (90502345)	5⁵⁸ RON
25	1	1	SCREW (90505174)	5⁵⁸ RON
26	1	1	INSULATOR (90503670)	7⁸¹ RON
