MASINA D ETUNS GARD VIU BLACK+DECKER GT6530 Type 1
[GT6530 Type 1]
MASINA D ETUNS GARD VIU BLACK+DECKER GT6530 Type 1
Click pentru a mari
Imagini suplimentare
MASINA D ETUNS GARD VIU BLACK+DECKER GT6530 Type 1
Click pentru a mari

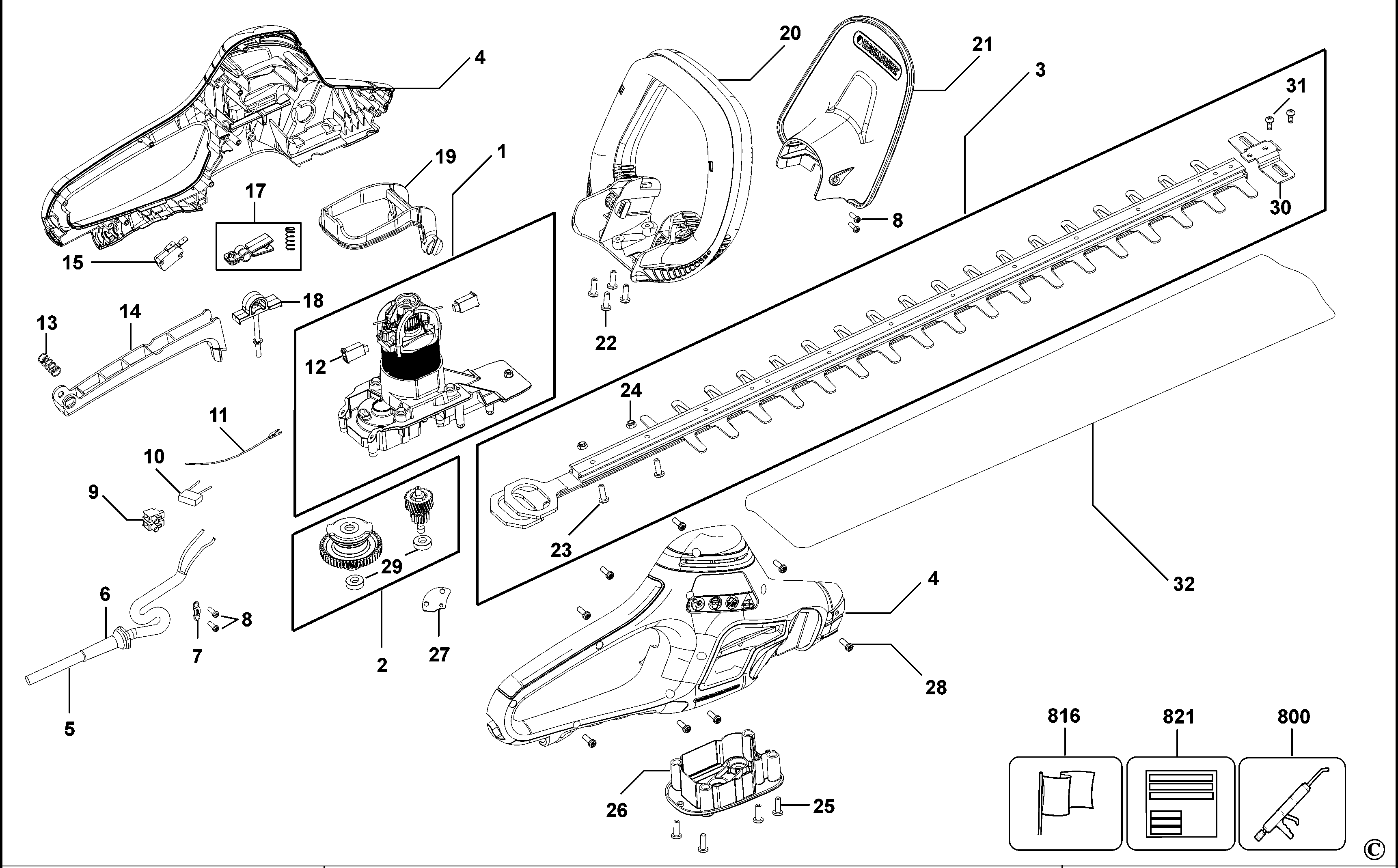

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR & GEARCASE (90531857) 42277 RON
1 1 1 90531857-01 - Indisponibil
2 1 1 PINION & GEAR SA (90543630) 28296 RON
3 1 1 BLADE SA (90544204) 42277 RON
4 1 1 CLAMSHELL SA (90527815-01) 17335 RON
5 1 1 CORDSET (90540131) 11519 RON
6 1 1 CORD PROTECTOR (770235) 558 RON
7 1 1 CLAMP CORD (821070) 558 RON
8 1 4 SCREW NO.6 X 12.7 (821057) 558 RON
9 1 1 TERMINAL BLOCK (373883) 781 RON
10 1 1 CAPACITOR (90537509) 105 RON
11 1 1 LEADWIRE (90532880) 781 RON
12 1 2 BRUSH & HOLDER (90531955) 2124 RON
12 1 1 BRUSH & HOLDER SA (90545659) 3466 RON
13 1 1 SPRING (90532295) 558 RON
14 1 1 TRIGGER (90039466) 190 RON
15 1 1 SWITCH SA (90533781) 1229 RON
17 1 1 ACTUATOR (90543632) 893 RON
18 1 1 ACTUATOR (90532861) 190 RON
18 1 1 ACTUATOR (90556342) 2347 RON
19 1 1 PIVOT (90039468) 1788 RON
20 1 1 HANDLE SA (90532771) 10512 RON
21 1 1 LOWER GUARD SA (90528349) 3466 RON
21 1 1 LOWER GUARD SA (90528349-01) 3954 RON
22 1 4 SCREW (90540971) 558 RON
23 1 2 Screw Metal (330045-16) 558 RON
24 1 2 NUT (90533548) 558 RON
25 1 4 SCREW (330024-36) 558 RON
26 1 1 BOTTOM PLATE (90040523) 190 RON
27 1 1 SUPPORT PLATE (90524440) 893 RON
28 1 9 SCREW (747329) 558 RON
29 1 2 BEARING (574853-06) 1452 RON
30 1 1 GUARD (90527993) 2124 RON
31 1 2 SCREW (330024-34) 558 RON
32 1 1 SHEATH (90535281) 3466 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
816 1 1 BRAND LABEL (90536337) 781 RON
821 1 1 RATING PLATE (90536348) 558 RON
821 1 1 RATING PLATE (90556544) 558 RON
