Top » Piese de schimb » PIESE BLACK & DECKER » CLM5448PC2 Type 1

MASINA DE COSIT BLACK+DECKER CLM5448PC2 Type 1
[CLM5448PC2 Type 1]
MASINA DE COSIT BLACK+DECKER CLM5448PC2 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE COSIT BLACK+DECKER CLM5448PC2 Type 1
Click pentru a mari
MASINA DE COSIT BLACK+DECKER CLM5448PC2 Type 1
Click pentru a mari

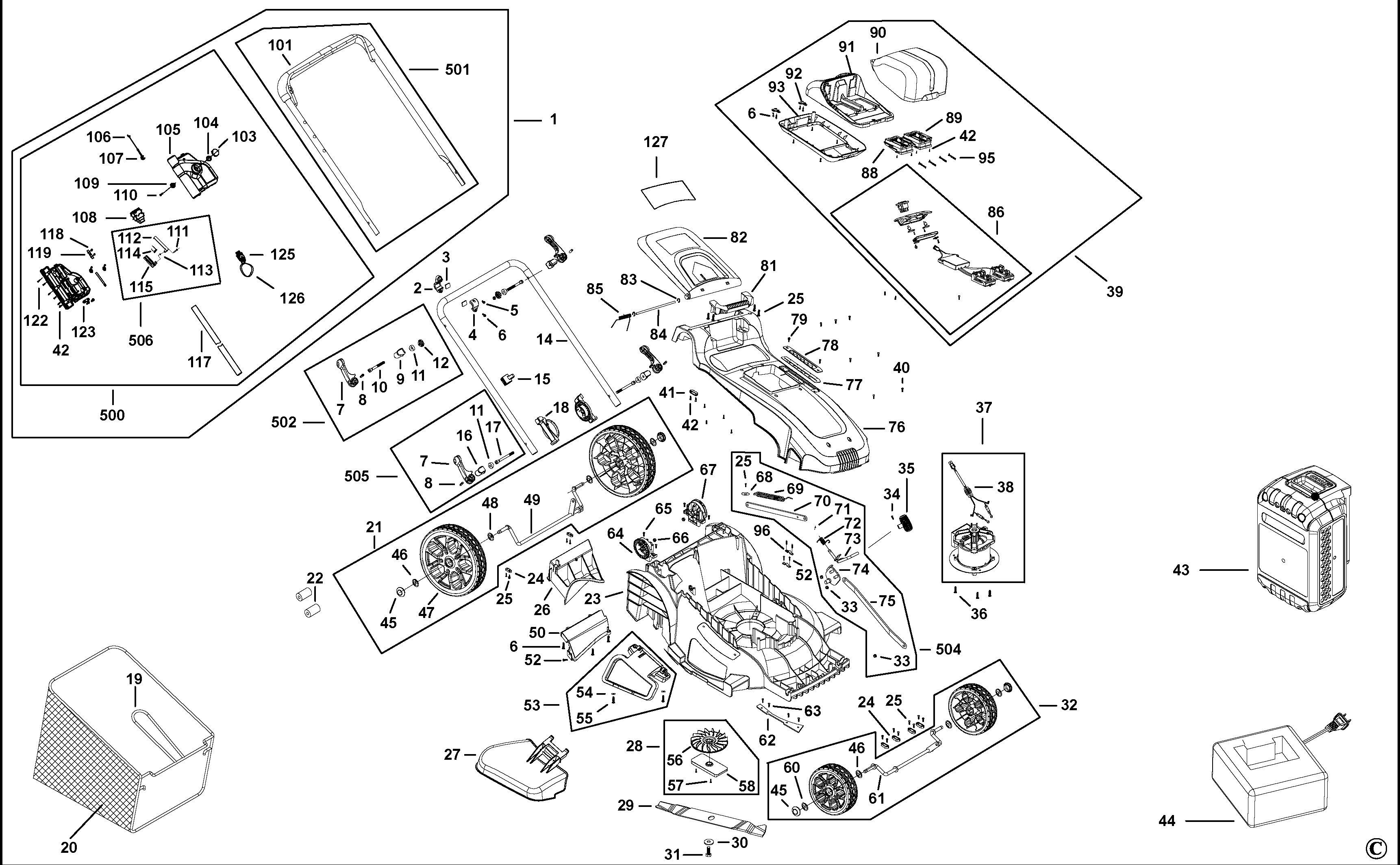

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1004729-40 - Indisponibil
2 1 1 COVER (1004705-83) 588 RON
3 1 2 GASKET (1004705-84) 588 RON
4 1 1 COVER (1004705-85) 588 RON
5 1 1 1004727-98 - Indisponibil
6 1 16 1004728-00 - Indisponibil
7 1 4 1004729-65 - Indisponibil
8 1 4 PIN (1004705-88) 588 RON
9 1 2 1004728-02 - Indisponibil
10 1 1 CONNECTING ROD (1004705-91) 944 RON
11 1 4 1004728-03 - Indisponibil
12 1 2 LOCK KNOB (1004707-39) 3268 RON
14 1 1 1004728-06 - Indisponibil
15 1 1 CABLE GUIDE (1004705-95) 588 RON
16 1 2 1004728-07 - Indisponibil
17 1 1 CONNECTING ROD (1004706-00) 82 RON
18 1 2 1004728-08 - Indisponibil
19 1 1 FRAME (1004705-97) 11337 RON
20 1 1 GRASSBAG (1004728-09) 30769 RON
21 1 1 1004728-10 - Indisponibil
22 1 2 1004728-14 - Indisponibil
23 1 1 1004728-26 - Indisponibil
24 1 6 RETAINING PLATE (1004706-07) 588 RON
25 1 22 1004728-24 - Indisponibil
26 1 1 1004728-33 - Indisponibil
27 1 1 SIDE EXTRUSION (1004728-34) 4827 RON
28 1 1 1004728-35 - Indisponibil
29 1 1 BLADE (1004706-29) 10241 RON
30 1 1 WASHER (1004706-30) 944 RON
31 1 1 BOLT (1004706-31) 668 RON
32 1 1 1004728-37 - Indisponibil
33 1 4 NUT (1004706-57) 588 RON
34 1 1 SCREW (1004706-65) 588 RON
35 1 1 1004728-40 - Indisponibil
36 1 3 SCREW (1004706-36) 588 RON
37 1 1 1004729-41 - Indisponibil
38 1 1 1004729-42 - Indisponibil
39 1 1 1004728-52 - Indisponibil
40 1 2 SCREW (1004728-62) 588 RON
41 1 1 1004728-63 - Indisponibil
42 1 30 1004701-40 - Indisponibil
43 1 1 N492579 - Indisponibil
43 1 1 N694214 - Indisponibil
44 1 1 CHARGER (90642264) 27287 RON
45 1 4 1004728-11 - Indisponibil
46 1 2 RETAINER (1004706-03) 588 RON
47 1 2 1004728-12 - Indisponibil
48 1 2 1004728-13 - Indisponibil
49 1 1 AXLE REAR (1004706-06) 6688 RON
50 1 1 GUIDE (1004706-18) 2556 RON
52 1 5 1004728-17 - Indisponibil
53 1 1 1004729-25 - Indisponibil
54 1 2 WASHER (1004706-12) 588 RON
56 1 1 FAN (1004706-27) 2182 RON
57 1 2 1004728-36 - Indisponibil
58 1 1 PLATE LOCK (1004706-28) 2556 RON
60 1 2 1004728-39 - Indisponibil
61 1 1 AXLE FRONT (1004706-34) 6688 RON
62 1 1 PLATE (1004706-78) 1630 RON
63 1 1 SCREW (1004728-25) 588 RON
64 1 1 1004728-27 - Indisponibil
65 1 4 SCREW (1004728-28) 588 RON
66 1 2 NUT (1004695-01) 558 RON
67 1 1 1004728-30 - Indisponibil
68 1 1 1004728-31 - Indisponibil
69 1 1 SPRING TORSION (1004706-63) 944 RON
70 1 1 CONNECTING ROD (1004706-62) 2796 RON
71 1 1 COTTER PIN (1004706-61) 588 RON
72 1 1 SPRING TORSION (1004706-60) 588 RON
73 1 1 LINK (1004706-59) 2182 RON
74 1 1 SUPPORT PLATE (1004706-58) 3954 RON
75 1 1 CONNECTING ROD (1004706-56) 2796 RON
76 1 1 1004728-45 - Indisponibil
77 1 1 SLEEVE (1004706-53) 82 RON
78 1 1 1004728-46 - Indisponibil
79 1 2 1004728-47 - Indisponibil
81 1 1 1004728-49 - Indisponibil
82 1 1 1004728-50 - Indisponibil
83 1 2 CIRCLIP (1004706-74) 588 RON
84 1 1 SHAFT (1004728-51) 1630 RON
85 1 1 SPRING TORSION (1004706-83) 82 RON
86 1 1 1004728-53 - Indisponibil
88 1 1 1004728-55 - Indisponibil
89 1 1 1004728-56 - Indisponibil
90 1 1 1004728-57 - Indisponibil
91 1 1 1004728-58 - Indisponibil
92 1 2 1004728-59 - Indisponibil
93 1 1 1004728-60 - Indisponibil
95 1 2 SPRING (1004706-48) 588 RON
96 1 1 RETAINING PLATE (1004706-38) 588 RON
101 1 1 FOAM (1004705-56) 1772 RON
103 1 1 BUTTON (1004705-58) 588 RON
104 1 1 SPRING (1004705-59) 588 RON
105 1 1 1004727-81 - Indisponibil
106 1 1 CABLE SA (1004694-78) 14315 RON
107 1 1 HOOK (1004729-36) 11337 RON
108 1 1 1004727-84 - Indisponibil
109 1 1 BOTTOM PLATE (1004705-64) 588 RON
110 1 1 5170016-91 - Indisponibil
111 1 1 SCREW (1004694-84) 1229 RON
112 1 1 CATCHPLATE (1004694-83) 558 RON
113 1 1 NUT (1004694-87) 558 RON
114 1 1 SPRING TORSION (1004694-85) 558 RON
115 1 1 GUIDE (1004729-37) 588 RON
117 1 1 1004727-92 - Indisponibil
118 1 4 BOLT (5170016-95) 588 RON
119 1 1 GUIDE (1004705-75) 588 RON
122 1 1 1004727-96 - Indisponibil
123 1 1 CABLE CLAMP (1004705-79) 588 RON
125 1 1 KEY (1004705-81) 2556 RON
126 1 1 STRAP (1004705-82) 944 RON
127 1 1 1004730-02 - Indisponibil
500 1 1 1004729-22 - Indisponibil
501 1 1 1004729-23 - Indisponibil
502 1 1 1004729-24 - Indisponibil
504 1 1 1004729-26 - Indisponibil
505 1 1 1004729-27 - Indisponibil
506 1 1 1004729-43 - Indisponibil
