Top » Piese de schimb » PIESE BLACK & DECKER » BDMOW1400 Type 1

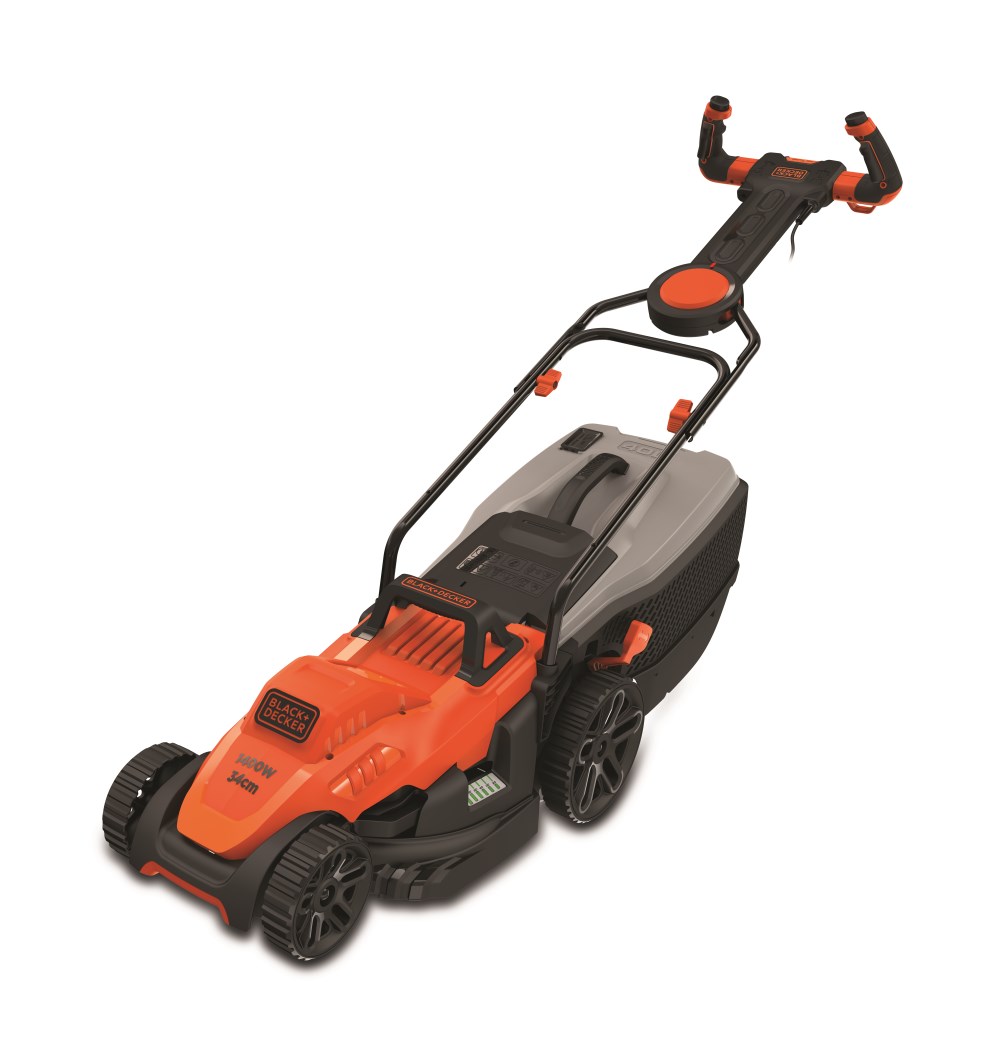

MASINA DE COSIT BLACK+DECKER BDMOW1400 Type 1
[BDMOW1400 Type 1]
MASINA DE COSIT BLACK+DECKER BDMOW1400 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE COSIT BLACK+DECKER BDMOW1400 Type 1
Click pentru a mari
MASINA DE COSIT BLACK+DECKER BDMOW1400 Type 1
Click pentru a mari

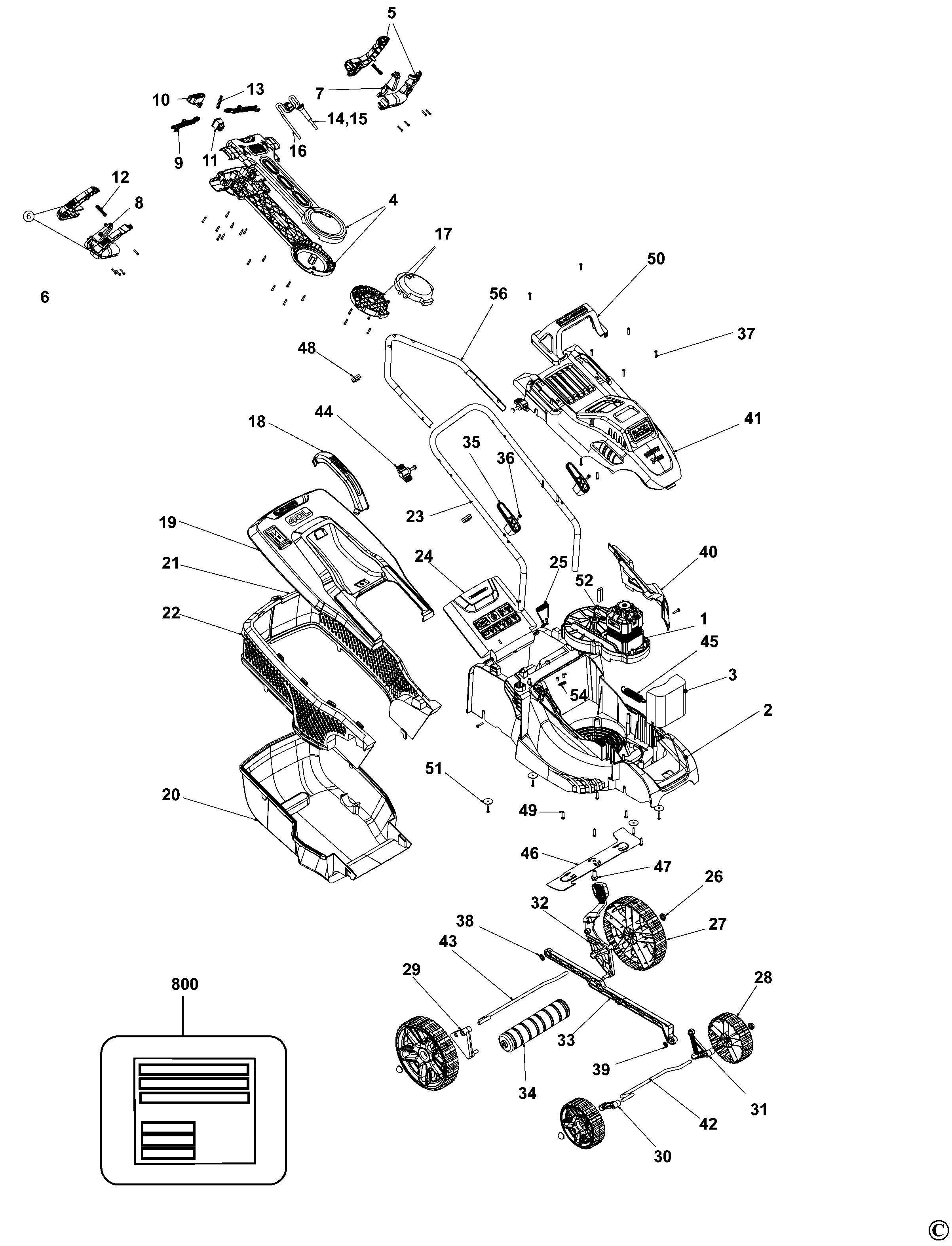

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N715592) 85494 RON
1 1 1 N586332 - Indisponibil
2 1 1 BASE (N518522) 18568 RON
3 1 1 WEIGHT (N547145) 741 RON
4 1 1 HOUSING SWITCH (N549268) 9012 RON
5 1 1 HANDLE LH (N549271) 3268 RON
6 1 1 HANDLE RH (N549272) 3268 RON
7 1 1 TRIGGER (N528681) 668 RON
8 1 1 TRIGGER (N528682) 668 RON
9 1 2 LINK (N529479) 588 RON
10 1 1 BUTTON LOCK-OFF (N529480) 668 RON
11 1 1 SWITCH (90562582) 2124 RON
12 1 1 SPRING (N549280) 588 RON
13 1 1 SPRING (N568719) 588 RON
15 1 1 CORDSET (90580223) 15993 RON
16 1 1 CABLE (N549261) 3954 RON
17 1 2 HOUSING (N549399) 4355 RON
18 1 1 HANDLE (90567333) 1452 RON
19 1 1 N550117 - Indisponibil
20 1 1 GRASSBOX (N572320) 741 RON
21 1 1 GRASSBOX LEFT (90567929) 3466 RON
22 1 1 GRASSBOX RIGHT (90567930) 3466 RON
23 1 2 TUBE LOWER (N530346) 9012 RON
24 1 1 GRASSFLAP (90566433-02) 2556 RON
25 1 1 SPRING TORSION (N564205) 668 RON
26 1 4 Washer Lock (90574276) 781 RON
27 1 2 WHEEL (N525968) 3954 RON
28 1 2 WHEEL FRONT (N525967) 1772 RON
29 1 1 BRACKET (90561676-01) 1630 RON
30 1 1 BRACKET (90561653) 781 RON
31 1 1 BRACKET (90561677) 893 RON
32 1 1 90567592-01 - Indisponibil
32 1 1 LEVER (90567592-02) 2796 RON
33 1 1 LEVER (90562576) 2347 RON
34 1 1 ROLLER (90560648) 2347 RON
35 1 2 CLIP CABLE (90571019-01) 588 RON
36 1 2 SCREW (90589823) 558 RON
37 1 18 SCREW (747329) 558 RON
38 1 2 Washer Lock (90579432) 558 RON
39 1 2 Washer Lock (90579431) 558 RON
40 1 1 COVER (90565736) 190 RON
41 1 1 COVER SA (N546825) 741 RON
42 1 1 SPINDLE (90561652) 2347 RON
43 1 1 AXLE REAR (90561606) 2795 RON
44 1 1 NUT PACK (N548691) 944 RON
45 1 1 SPRING (90569681) 105 RON
46 1 1 BLADE (N520726) 6688 RON
47 1 1 BOLT (90516533) 558 RON
48 1 1 CLAMP (90571653) 558 RON
49 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
50 1 1 HANDLE (N525936) 1772 RON
51 1 4 WASHER (90573272) 588 RON
52 1 1 TUBE (90606208) 588 RON
54 1 2 CLAMP CORD (821070) 558 RON
56 1 1 TUBE (N528692) 4355 RON
