Top » Piese de schimb » PIESE BLACK & DECKER » WM825 Type 2

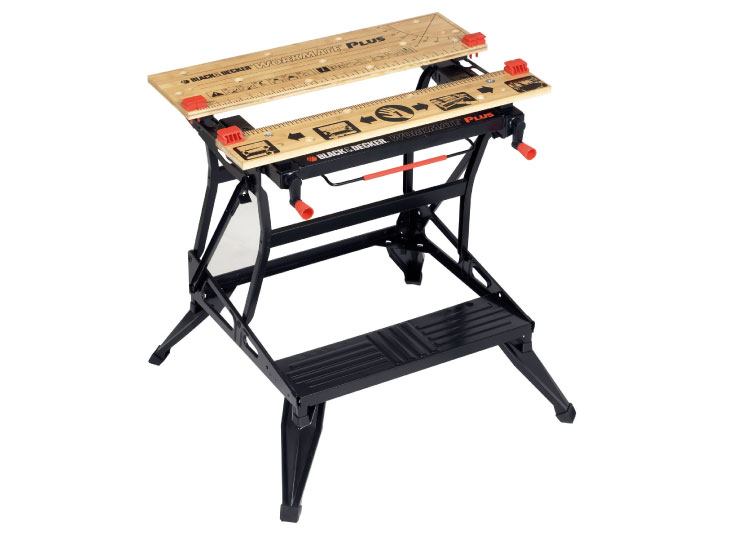

MAS ADE LUCRU PORTABILA BLACK+DECKER WM825 Type 2
[WM825 Type 2]
MAS ADE LUCRU PORTABILA BLACK+DECKER WM825 Type 2
Click pentru a mari
Imagini suplimentare
MAS ADE LUCRU PORTABILA BLACK+DECKER WM825 Type 2
Click pentru a mari
MAS ADE LUCRU PORTABILA BLACK+DECKER WM825 Type 2
Click pentru a mari

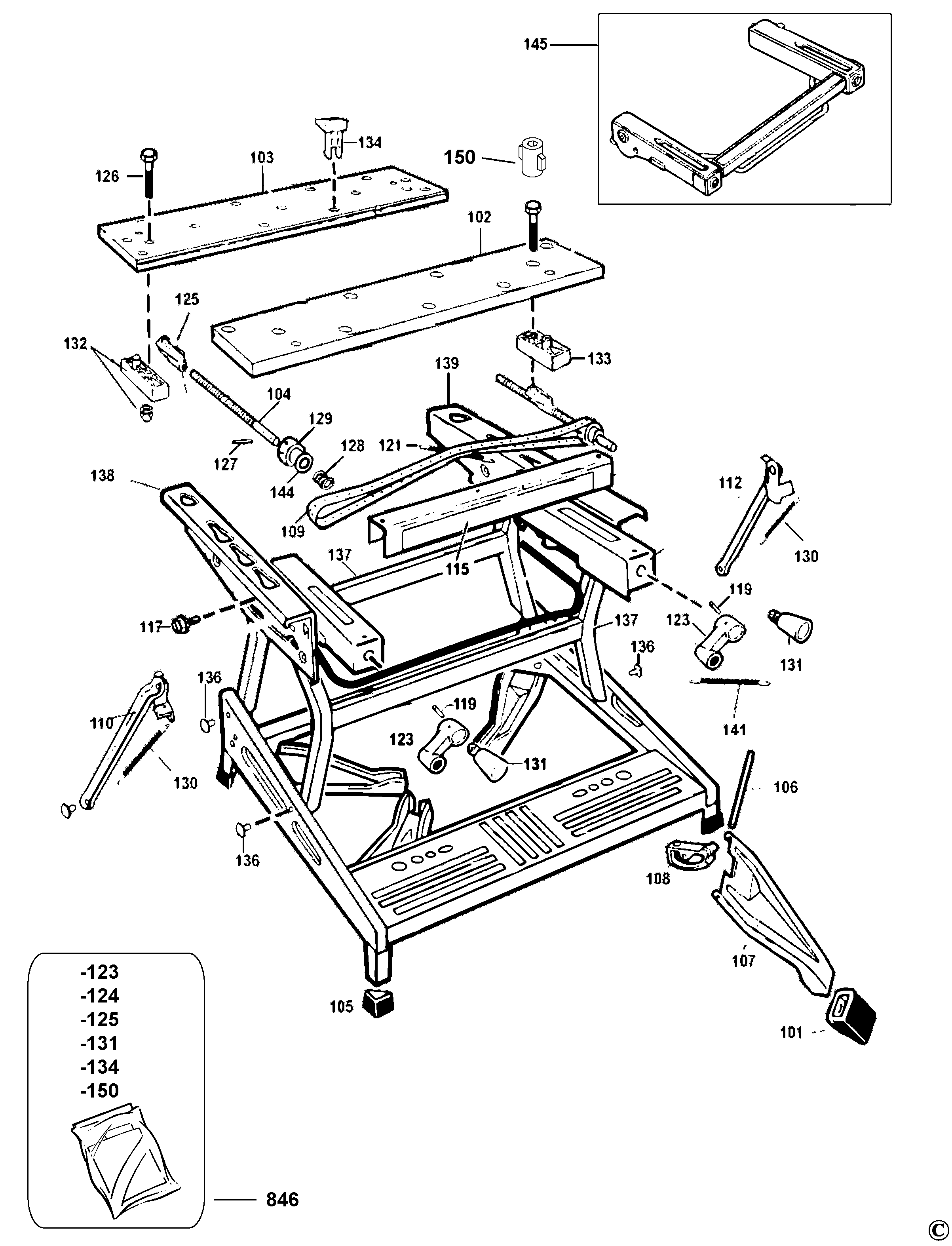

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 4 RIGHT FOOT (723206) 105 RON
102 1 1 vice jaw front (574260-00) 15993 RON
102 1 1 JAWS (569296-00) 26730 RON
103 1 1 VICE JAW REAR (372348-03) 22144 RON
104 1 2 VICE SCREW (574171-00) 190 RON
105 1 4 FOOT (723557) 781 RON
106 1 4 AXLE (374561) 558 RON
107 1 4 LEG (723745-49) 3018 RON
108 1 4 LEG CATCH (373195-01) 781 RON
109 1 1 BELT DRIVE (242821-02) 5031 RON
109 1 1 BELT DRIVE (242821-01) 3018 RON
110 1 1 STAY LH (808161) 9282 RON
112 1 1 STAY RH (808160) 4137 RON
115 1 1 LABEL (572789-00) 1229 RON
117 1 2 SCREW (823385) 105 RON
119 1 2 PIN (807532) 781 RON
121 1 1 SPRING (576465-00) 558 RON
123 1 2 HANDLE ARM (723541) 781 RON
124 1 2 SLIDE BLOCK (820261) 781 RON
124 1 2 INDEXING NUT (839733) 105 RON
124 1 2 BLOCK (242436-01) 781 RON
125 1 2 822076 - Indisponibil
125 1 2 NUT (577199-00) 781 RON
126 1 4 BOLT (98025-40) 558 RON
127 1 2 SPIROL PIN (807531) 558 RON
128 1 2 SPRING (572764-00) 1117 RON
129 1 2 SPROCKET (242836-00) 558 RON
130 1 2 SPRING (797516) 893 RON
131 1 2 KNOB (820728) 105 RON
132 1 2 BLOCK REAR (1004683-00) 1788 RON
133 1 2 SLIDE BLOCK (820261) 781 RON
134 1 4 PEG SWIVEL (807530-02) 105 RON
136 1 10 RIVET (1004688-16) 781 RON
136 1 10 RIVET (792653) 781 RON
137 1 2 FRAME (242408-02) 9282 RON
138 1 1 BRACKET LH (374090-01) 2347 RON
138 1 1 374090 - Indisponibil
139 1 1 BRACKET RH (374091-01) 3018 RON
139 1 1 374091 - Indisponibil
141 1 2 SPRING (242979-00) 105 RON
144 1 4 WASHER SPECIAL (809486) 558 RON
145 1 1 BRACKET SA (572760-01) 23598 RON
150 1 1 WRENCH (723742) 558 RON
846 1 1 PARTS PACK (572780-00) 4472 RON
