MAS ADE LUCRU PORTABILA BLACK+DECKER WM550 Type 13
[WM550 Type 13]

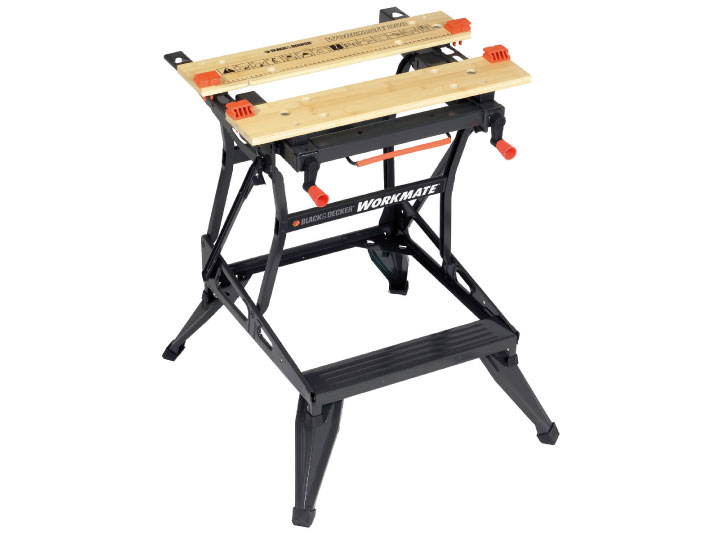

Imagini suplimentare

Click pentru a mari

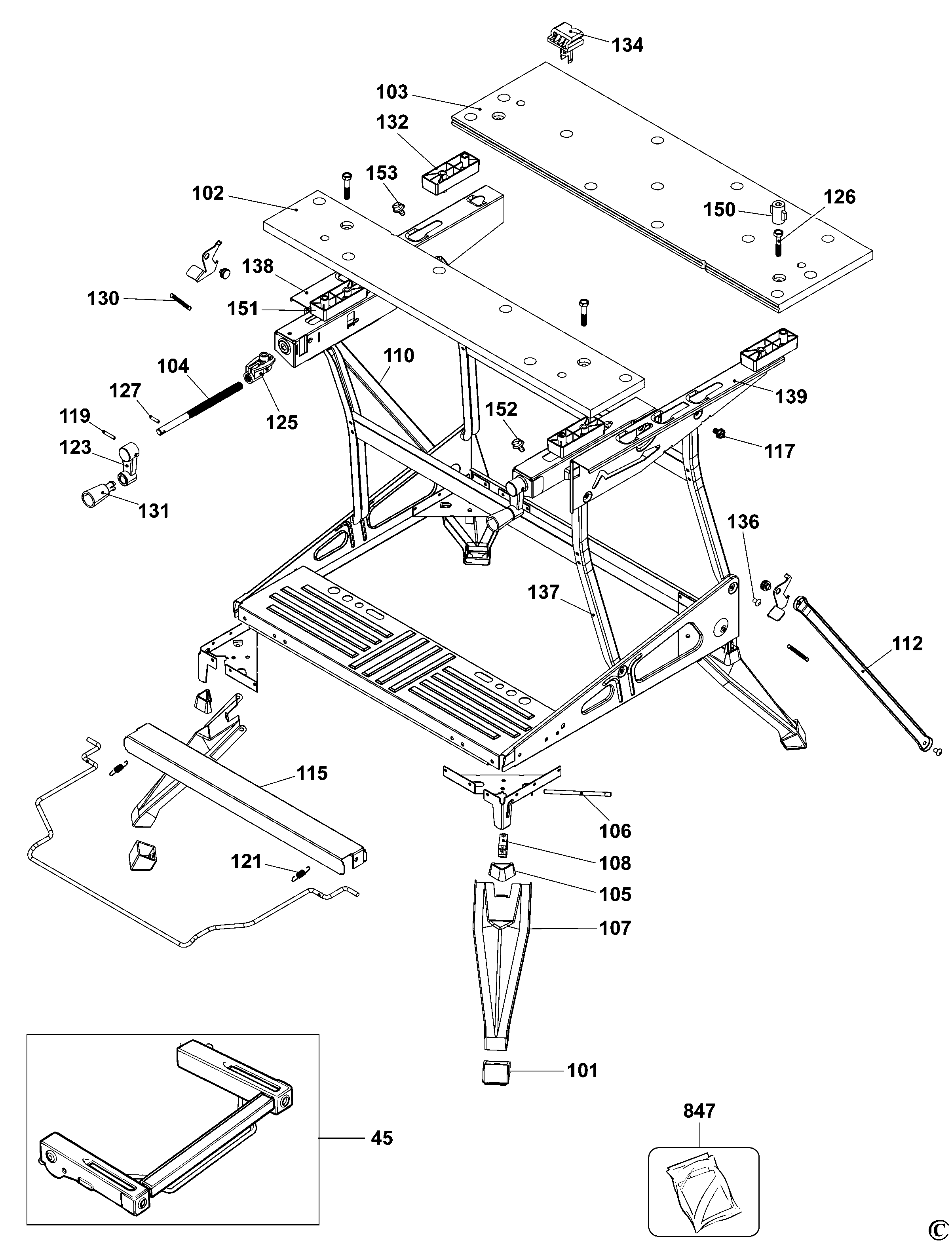

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
45	1	1	BRACKET SA (374089-01)	221⁴⁴ RON
101	1	4	RIGHT FOOT (723206)	10⁵ RON
102	1	1	JAWS (569300-00)	189¹ RON
103	1	1	JAWS (569300-00)	189¹ RON
104	1	2	VICE SCREW SA (807540)	34⁶⁶ RON
105	1	4	FOOT (723557)	7⁸¹ RON
106	1	4	AXLE (374561)	5⁵⁸ RON
107	1	4	LEG (723745-49)	30¹⁸ RON
108	1	4	LEG CATCH (373195-01)	7⁸¹ RON
110	1	1	STAY LH (1004688-17)	92⁸² RON
110	1	1	STAY LH (808161)	92⁸² RON
112	1	1	STAY RH (1004688-18)	92⁸² RON
112	1	1	STAY RH (808160)	41³⁷ RON
115	1	1	000000-00	-	Indisponibil
117	1	8	RIVET (1004688-16)	7⁸¹ RON
117	1	8	RIVET (792653)	7⁸¹ RON
119	1	1	SPIROL PIN (807531)	5⁵⁸ RON
121	1	2	SPRING (242979-00)	10⁵ RON
123	1	2	HANDLE ARM (723541)	7⁸¹ RON
125	1	2	NUT (577199-00)	7⁸¹ RON
126	1	4	SCREW (723593)	5⁵⁸ RON
127	1	1	SPIROL PIN (807531)	5⁵⁸ RON
130	1	2	SPRING (797516)	8⁹³ RON
131	1	2	KNOB (820728)	10⁵ RON
132	1	2	BLOCK REAR (1004683-00)	17⁸⁸ RON
134	1	4	PEG SWIVEL (807530-02)	10⁵ RON
136	1	2	RIVET (1004688-16)	7⁸¹ RON
136	1	2	RIVET (792653)	7⁸¹ RON
137	1	2	FRAME (723581-14)	92⁸² RON
137	1	2	FRAME (1004688-14)	204⁶⁷ RON
138	1	1	BRACKET LH (1004688-20)	105¹² RON
138	1	1	BRACKET LH (374090-01)	23⁴⁷ RON
139	1	1	BRACKET RH (1004688-21)	105¹² RON
139	1	1	BRACKET RH (374091-01)	30¹⁸ RON
150	1	1	WRENCH (723742)	5⁵⁸ RON
151	1	2	SLIDE BLOCK (FRONT) (820262)	12²⁹ RON
152	1	2	SCREW (823385)	10⁵ RON
153	1	2	SCREW.SPECIAL (823386-00)	13¹⁸ RON
153	1	2	SCREW SPECIAL (823386)	14⁵² RON
847	1	1	PARTS PACK (572780-00)	44⁷² RON
847	1	1	PARTS PACK (807542)	115¹⁹ RON
850	1	1	PARTS PACK (369734-01)	41³⁷ RON
