Top » Piese de schimb » PIESE BLACK & DECKER » KW712 Type 2

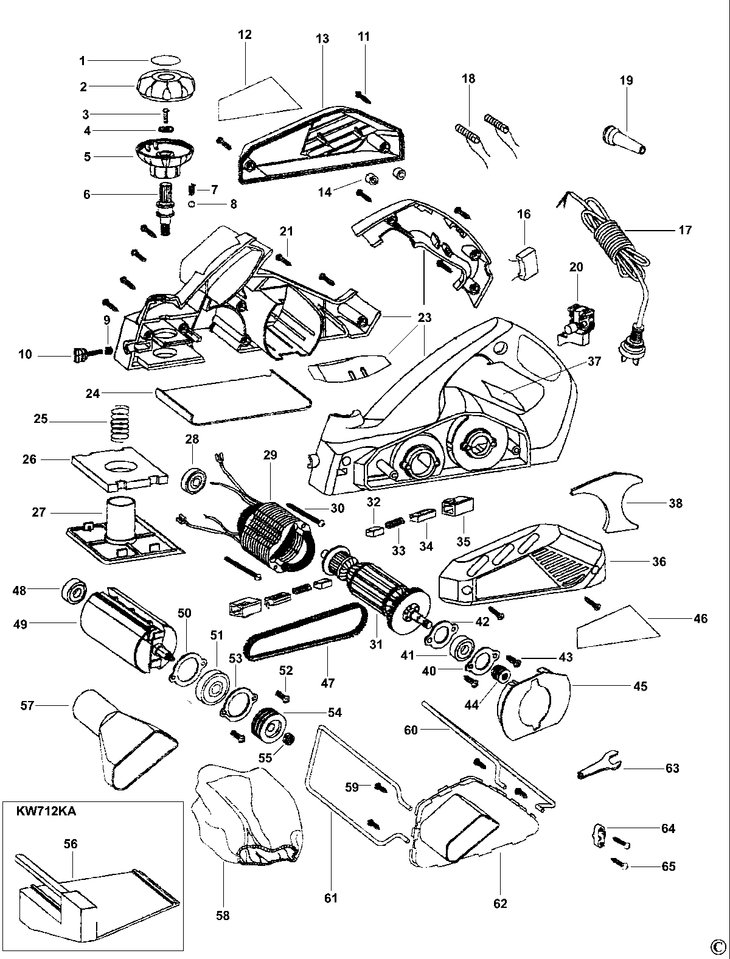

KW712 PLANER Type 2
[KW712 Type 2]
KW712 PLANER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LABEL (569461-00) 558 RON
2 1 1 KNOB UPPER (597720-00) 3018 RON
3 1 1 SCREW (569463-00) 558 RON
4 1 1 WASHER SPRING (569464-00) 558 RON
5 1 1 KNOB LOWER (597721-00) 893 RON
6 1 1 ADJUSTER DEPTH (597722-00) 105 RON
7 1 1 WASHER SPRING (569467-00) 558 RON
8 1 1 BALL STEEL (569468-00) 558 RON
9 1 1 NUT M6 (569469-00) 558 RON
10 1 1 LOCKING SCREW (569470-00) 558 RON
11 1 4 SCREW (569471-00) 558 RON
12 1 1 NAMEPLATE (597723-00) 558 RON
13 1 1 COVER RH (597725-00) 2347 RON
14 1 2 BRUSH PLATE (569474-00) 558 RON
16 1 1 CAPACITOR (569476-00) 781 RON
17 1 1 CORDSET (569477-00) 4472 RON
18 1 2 CONDUCTOR (569479-00) 1229 RON
19 1 1 CORD PROTECTOR (569480-00) 558 RON
20 1 1 SWITCH (569481-00) 2124 RON
21 1 6 SCREW (569482-00) 105 RON
23 1 1 CLAMSHELL SET (597726-00) 1891 RON
24 1 1 BACKPLATE (569485-00) 190 RON
25 1 1 SPRING (569486-00) 558 RON
26 1 1 DUST GUARD (569487-00) 558 RON
27 1 1 SHOE (569488-00) 2795 RON
28 1 1 BEARING (569489-00) 1117 RON
29 1 1 FIELD SA (597727-00) 11519 RON
30 1 2 SCREW (569491-00) 558 RON
31 1 1 ARMATURE KIT 220 (1003726-00) 1891 RON
31 1 1 ARMATURE KIT 220 (1003726-00) 1891 RON
32 1 2 BRUSH (597729-00) 781 RON
33 1 2 BRUSH SPRING (569494-00) 558 RON
34 1 2 BRUSH HOLDER (569495-00) 558 RON
35 1 2 BRUSH HOLDER (569496-00) 558 RON
36 1 1 COVER LH (597730-00) 2124 RON
37 1 1 WARNING LABEL (597732-00) 558 RON
38 1 1 PLATE (597733-00) 558 RON
40 1 1 BEARING PLATE (596001-00) 558 RON
41 1 1 BEARING (596002-00) 1229 RON
42 1 1 BEARING PLATE (596003-00) 558 RON
43 1 2 SCREW (596004-00) 558 RON
44 1 1 WHEEL DRIVING (596005-00) 781 RON
45 1 1 BAFFLE (597734-00) 558 RON
46 1 1 NAMEPLATE (597735-00) 558 RON
47 1 1 BELT GROOVED (596008-00) 2124 RON
48 1 1 BEARING (596009-00) 1452 RON
49 1 1 BLADEDRUM SA (596010-00) 15993 RON
50 1 1 BEARING PLATE (596011-00) 558 RON
51 1 1 BEARING (596012-00) 2124 RON
52 1 2 SCREW (596013-00) 558 RON
53 1 1 BEARING PLATE (596014-00) 105 RON
54 1 1 WHEEL (596015-00) 1229 RON
55 1 1 NUT M5 (596016-00) 558 RON
56 1 1 GUIDE FENCE (596017-00) 3018 RON
57 1 1 VACUUM ADAPTOR (597736-00) 105 RON
58 1 1 BAG DUST (596019-00) 2347 RON
59 1 4 SCREW (596020-00) 558 RON
60 1 1 WIRE (596021-00) 781 RON
61 1 1 WIRE (596022-00) 781 RON
62 1 1 SUPPORT (597737-00) 1117 RON
63 1 1 SPANNER BLADE (596024-00) 781 RON
64 1 1 CORD CLAMP (596025-00) 558 RON
65 1 2 SCREW (596026-00) 558 RON
