Top » Piese de schimb » PIESE BLACK & DECKER » KS890E Type 3

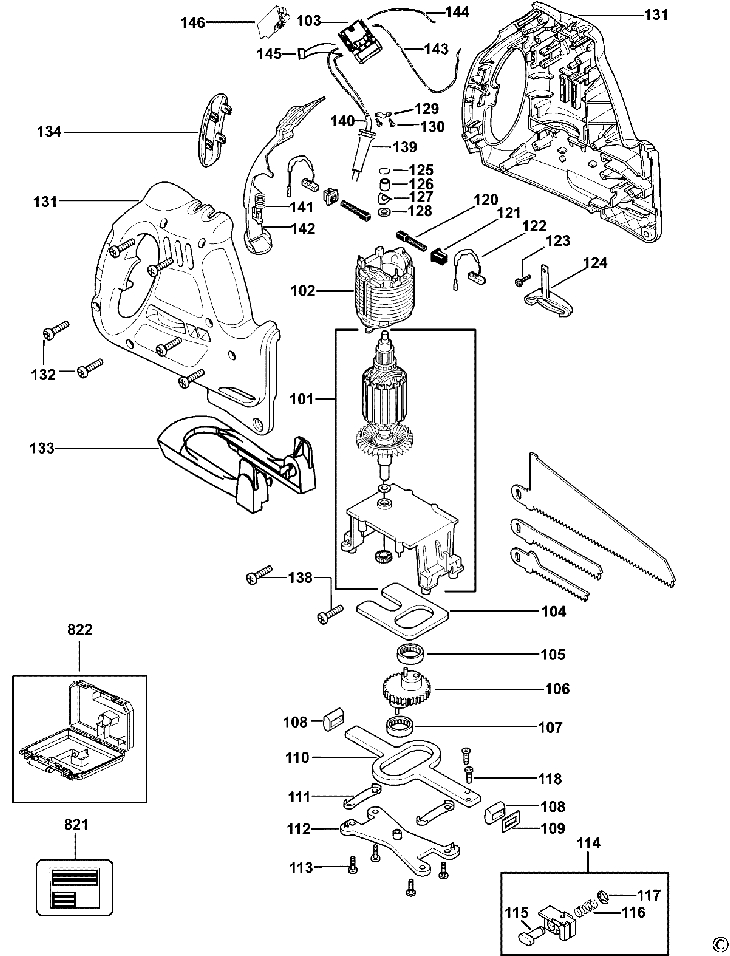

KS890E SAW Type 3
[KS890E Type 3]
KS890E SAW Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE 230V (376446-16) 20467 RON
102 1 1 FIELD 230V (576374-34) 7940 RON
103 1 1 SWITCH SA (580000-02) 11519 RON
104 1 1 BALANCE WEIGHT KS890E (377372) 2347 RON
105 1 1 BEARING KS890E (377454) 190 RON
106 1 1 GEAR SA (376450-04) 2795 RON
107 1 1 BEARING KS890E (377454) 190 RON
108 1 2 TOP BEARING (795680) 893 RON
109 1 1 SEAL (795694) 558 RON
110 1 1 RECIPRICATOR (580377-00) 3466 RON
111 1 2 CLAMP (795647) 558 RON
112 1 1 GEARCASE COVER KS890E (377389) 2795 RON
113 1 4 SCREW (575946-00) 558 RON
114 1 1 SA BLADE CLAMP cod vechi 377375-00 (377375-00) 2347 RON
115 1 1 LOCK PIN (571265-00) 781 RON
116 1 1 SPRING (368671) 558 RON
117 1 1 E CLIP (571181-00) 558 RON
118 1 2 SCREW (577359-00) 558 RON
120 1 2 BRUSH 230V SA (915068-01) 781 RON
121 1 2 BRUSH BOX HOLDER (875735) 558 RON
122 1 2 BRUSHBOX SA (578974-00) 781 RON
123 1 1 SCREW NO.6 X 12.7 (821057) 558 RON
124 1 1 LOCK BUTTON (571182-01) 558 RON
125 1 1 O RING (583894-00) 558 RON
126 1 1 BEARING NEEDLE (330004-02) 1229 RON
127 1 1 RONDELLE (373296-00) 558 RON
128 1 1 WASHER FIBRE (373295-01) 558 RON
129 1 1 CLAMP CORD CORNER (329301-00) 558 RON
130 1 2 SCREW NO.6 X 12.7 (821057) 558 RON
131 1 1 580063-02N - Indisponibil
132 1 6 SCREW (375669) 558 RON
133 1 1 SHOE cod vechi 377450-01 (90594113) 1788 RON
134 1 1 HANDLE (377452-01) 1117 RON
138 1 2 SCREW (747329) 558 RON
139 1 1 CORD PROTECTOR (770235) 558 RON
140 1 1 CORDSET GB (330060-53) 5031 RON
141 1 1 SPRING (575706-00) 558 RON
142 1 1 SWITCH LOCK OFF (577775-01) 781 RON
143 1 1 LEADWIRE (580090-00) 781 RON
144 1 1 LEADWIRE (580091-00) 781 RON
145 1 1 CAPACITOR (807285-06) 781 RON
