Top » Piese de schimb » PIESE BLACK & DECKER » KS888E Type 1

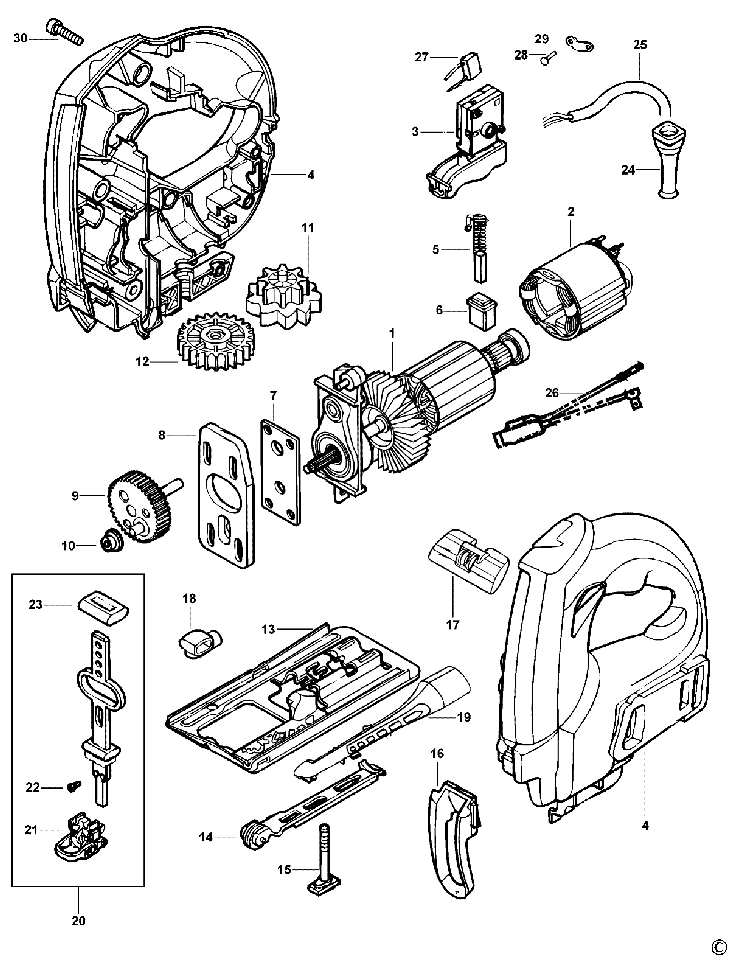

KS888E JIGSAW Type 1
[KS888E Type 1]
KS888E JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (583824-00) 22144 RON
2 1 1 FIELD SA (583820-00) 10512 RON
3 1 1 SWITCH SA (582779-00) 9282 RON
4 1 1 CLAMSHELL SET (582604-00) 9282 RON
5 1 2 BRUSH 230V SA (582761-00) 1229 RON
6 1 1 BRUSHBOX (582696-00) 558 RON
7 1 1 THRUST PLATE (582585-00) 781 RON
8 1 1 BALANCE WEIGHT (492330-00) 3018 RON
9 1 1 GEAR SA (583825-00) 2347 RON
10 1 1 000000-00 - Indisponibil
11 1 1 ACTUATOR (582601-00) 781 RON
12 1 1 GEAR SA (582768-00) 781 RON
13 1 1 SHOE SA (582596-00) 2795 RON
14 1 1 000000-00 - Indisponibil
15 1 1 LOCKING SCREW (582600-00) 781 RON
16 1 1 GUARD (582603-00) 781 RON
17 1 1 BUTTON LOCK-ON (582606-00) 105 RON
18 1 1 ELBOW TUBE (582599-00) 558 RON
19 1 1 VACUUM ADAPTOR (582614-00) 190 RON
20 1 1 SHAFT SA (583826-00) 4472 RON
21 1 1 BLADE CLAMP (582593-00) 2124 RON
22 1 2 SCREW (583173-00) 781 RON
23 1 2 BEARING (810893) 558 RON
24 1 1 CORD PROTECTOR (770235) 558 RON
25 1 1 CORDSET GB (330060-53) 5031 RON
26 1 2 CHOKE LEAD SA (582762-00) 1452 RON
27 1 1 CAPACITOR (807285-14) 781 RON
28 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
29 1 1 CLAMP CORD (821070) 558 RON
30 1 8 SCREW NO.8 X 19 POLY (809961) 558 RON
