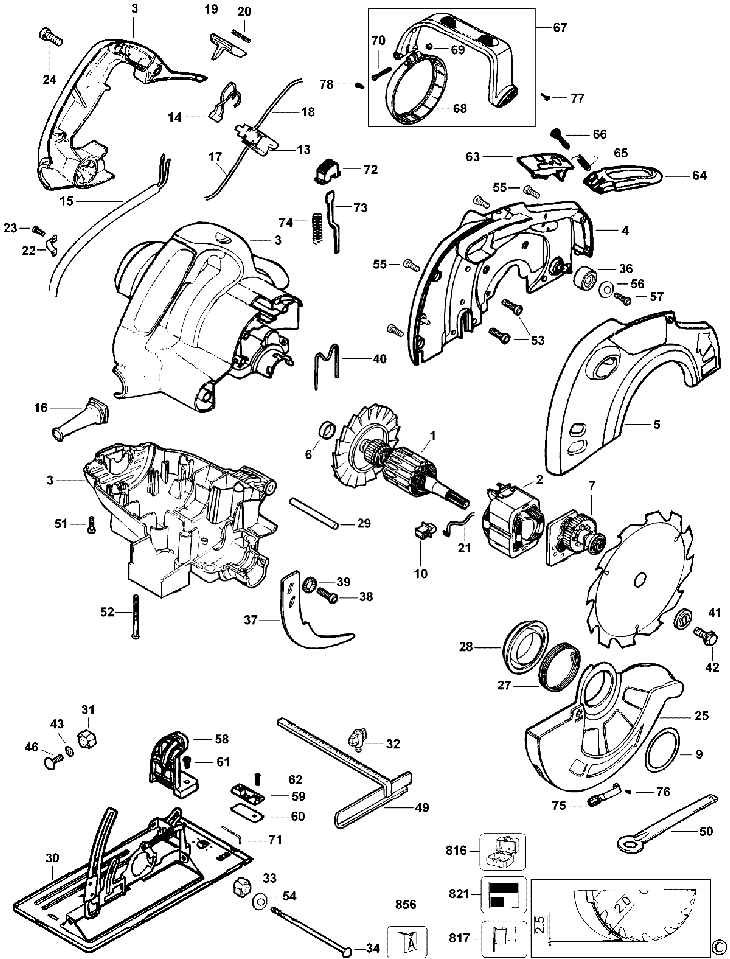

KS65K CIRCULAR SAW Type 1
[KS65K Type 1]
KS65K CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 FIELD SA (579831-01) 12861 RON
3 1 1 000000-00 - Indisponibil
4 1 1 GUARD (577964-00) 7940 RON
5 1 1 000000-00 - Indisponibil
6 1 1 SLEEVE BEARING (930275-00) 558 RON
7 1 1 000000-00 - Indisponibil
9 1 1 SPACER (576536-00) 558 RON
10 1 2 BRUSHBOX SA (578067-00) 2124 RON
13 1 1 SWITCH (574289-01) 6821 RON
14 1 1 CAPACITOR (807285-08) 105 RON
15 1 1 CORDSET GB (589164-08) 5591 RON
16 1 1 CORD PROTECTOR (770235) 558 RON
17 1 1 LEADWIRE (578720-00) 781 RON
18 1 1 LEADWIRE (578722-00) 558 RON
19 1 1 ACTUATOR (575783-00) 781 RON
20 1 1 SPRING (576713-00) 558 RON
21 1 2 000000-00 - Indisponibil
22 1 1 CLAMP CORD (821070) 558 RON
23 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
24 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
25 1 1 LOWER GUARD SA (576490-00) 4472 RON
27 1 1 SPRING (579792-00) 558 RON
28 1 1 SLEEVE (578996-00) 2347 RON
29 1 1 ROLLPIN (397790-00) 781 RON
30 1 1 SHOE SA (577653-00) 12861 RON
31 1 1 KNOB SA (577849-00) 781 RON
32 1 1 SCREW WING (577637-00) 558 RON
33 1 1 KNOB SA (575901-00) 781 RON
34 1 1 BOLT (577852-00) 781 RON
36 1 1 STOP RUBBER (578994-00) 781 RON
37 1 1 RIVING KNIFE (573640-00) 2124 RON
38 1 2 SCREW M5 X 14 TORX / SLOTTED (571056-00) 558 RON
39 1 2 Washer Lock (579005-00) 558 RON
40 1 1 RETAINER (578995-00) 558 RON
41 1 1 OUTER CLAMP WASH (131404-01) 7940 RON
42 1 1 HEX BOLT (70907-00) 558 RON
43 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
46 1 1 000000-00 - Indisponibil
49 1 1 RIP FENCE (582107-01) 2124 RON
50 1 1 WRENCH (576502-00) 781 RON
51 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
52 1 4 SCREW (330019-17) 558 RON
53 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
54 1 1 WASHER (573606-00) 558 RON
55 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
56 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
57 1 1 Screw Metal (330045-15) 781 RON
58 1 1 QUADRANT (577236-00) 1117 RON
59 1 1 INDICATOR (577652-00) 105 RON
60 1 1 HOLDER RUBBER (577672-00) 558 RON
61 1 1 SCREW (580492-00) 558 RON
62 1 1 SCREW (578062-00) 558 RON
63 1 1 LOCKING DEVICE (573659-00) 105 RON
64 1 1 WINDOW (577596-00) 2124 RON
65 1 1 SPRING (497506-00) 558 RON
66 1 1 AXLE (577602-00) 1117 RON
67 1 1 HANDLE SIDE SA (577952-00) 5031 RON
68 1 1 RING (577953-00) 190 RON
69 1 1 STOP NUT (330021-06) 558 RON
70 1 1 BOLT (578073-00) 558 RON
71 1 1 TORX WRENCH (571057-01) 893 RON
72 1 1 LOCK BUTTON (578502-00) 781 RON
73 1 1 SPINDLE LOCK (578503-00) 781 RON
74 1 1 SPRING (603643-00) 558 RON
75 1 1 HANDLE SA (578529-00) 893 RON
76 1 1 SCREW.TEMP (330045-04) 558 RON
77 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
78 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
816 1 1 000000-00 - Indisponibil
817 1 1 BRAND LABEL (579410-00) 781 RON
821 1 1 RATING PLATE (579409-00) 781 RON
856 1 1 VACUUM ADAPTOR (579791-00) 105 RON
