Top » Piese de schimb » PIESE BLACK & DECKER » KS40 Type 1

KS40 CIRCULAR SAW Type 1
[KS40 Type 1]
KS40 CIRCULAR SAW Type 1
Click pentru a mari

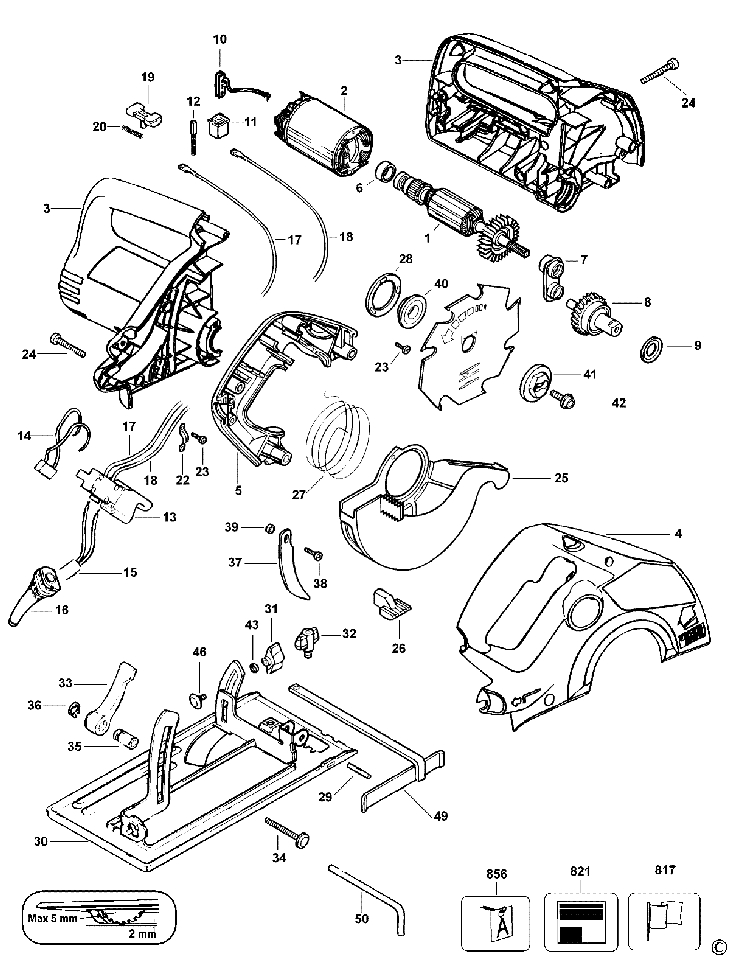

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (1005275-00) 23598 RON
2 1 1 FIELD SA (576374-18) 9282 RON
3 1 1 CLAMSHELL SET (580322-00) 20467 RON
4 1 1 CLAMSHELL SET (580322-00) 20467 RON
5 1 1 CLAMSHELL SET (580322-00) 20467 RON
6 1 1 SLEEVE BEARING (930275-00) 558 RON
7 1 1 BEARING SA (576710-00) 2347 RON
8 1 1 SPINDLE SA (575333-00) 12861 RON
9 1 1 WASHER THRUST (577627-00) 558 RON
10 1 2 BRUSHBOX SA (579463-00) 105 RON
11 1 2 BRUSH BOX HOLDER (875735) 558 RON
12 1 2 BRUSH 230V SA (915068-01) 781 RON
13 1 1 SWITCH (574289-01) 6821 RON
14 1 1 CAPACITOR (807285-08) 105 RON
15 1 1 CORDSET GB (589164-08) 5591 RON
16 1 1 CORD PROTECTOR (770235) 558 RON
17 1 1 LEAD SA (577667-00) 781 RON
18 1 1 LEAD SA (577668-00) 781 RON
19 1 1 ACTUATOR (575783-00) 781 RON
20 1 1 SPRING (576713-00) 558 RON
22 1 1 CLAMP CORD (821070) 558 RON
23 1 5 SCREW (574060-00) 558 RON
24 1 15 SCREW NO.8 X 19 POLY (809961) 558 RON
25 1 1 GUARD SA (574041-00) 3466 RON
26 1 1 LEVER (576780-00) 781 RON
27 1 1 SPRING (914816) 781 RON
28 1 1 PLATE (574078-00) 781 RON
29 1 1 PIN (577628-00) 781 RON
30 1 1 SHOE SA (578750-00) 7940 RON
31 1 1 WING NUT (577638-00) 781 RON
32 1 1 SCREW WING (577637-00) 558 RON
33 1 1 LEVER LOCK (576707-00) 781 RON
34 1 1 PARTS PACK(KIT) (581053-00) 1117 RON
35 1 1 PARTS PACK(KIT) (581053-00) 1117 RON
36 1 1 CLIP (576711-00) 558 RON
37 1 1 RIVING KNIFE (574076-00) 893 RON
38 1 1 SCREW (576709-00) 558 RON
39 1 1 NUT (330015-01) 558 RON
40 1 1 INNER FLANGE (575330-00) 105 RON
41 1 1 OUTER FLANGE (575331-00) 781 RON
42 1 1 BLADE BOLT (575332-00) 558 RON
43 1 1 WASHER (330016-07) 558 RON
46 1 1 BOLT (577612-00) 558 RON
49 1 1 FENCE (578879-00) 2124 RON
50 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
821 1 1 RATING PLATE (90555555) 558 RON
856 1 1 VACUUM ADAPTOR (579791-00) 105 RON
