KS385 UNIVERSAL SAW Type 1
[KS385 Type 1]
KS385 UNIVERSAL SAW Type 1
Click pentru a mari

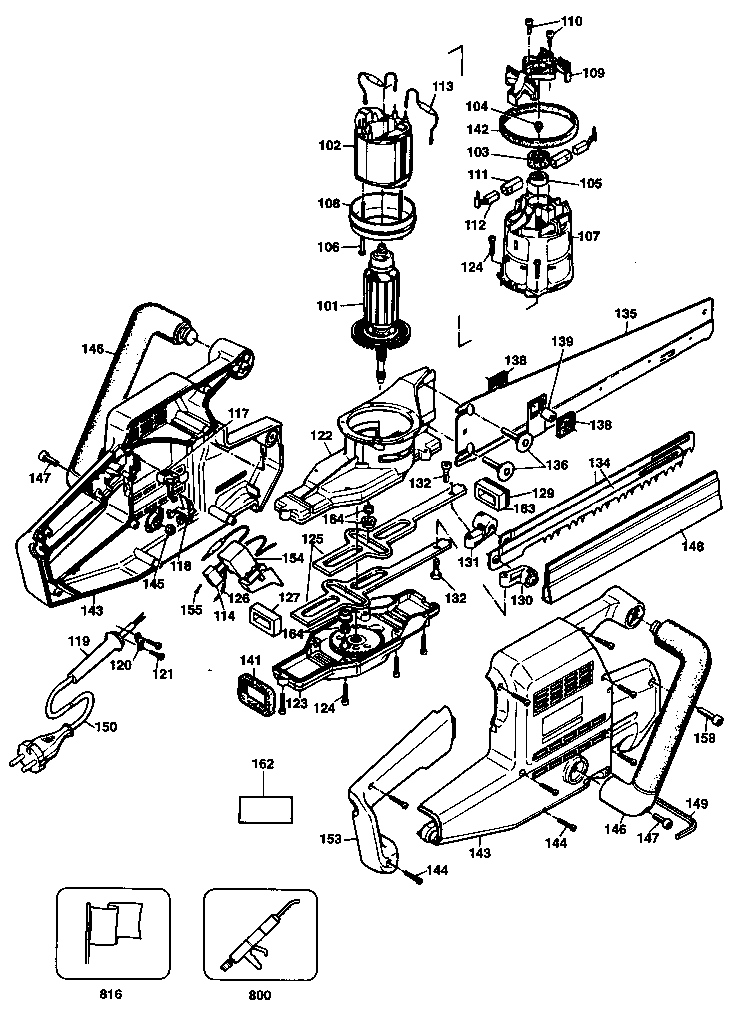

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE ( SERVICE ) (369453-04) 40599 RON
102 1 1 S.A.FIELD M65 ( SERVICE ) (373007-15) 20467 RON
103 1 1 DAMPER. RING (911897) 781 RON
104 1 1 SCREW. AM4 X 12 DIN798 (322491) 558 RON
105 1 1 BEARING BALL (330003-19) 2124 RON
106 1 2 SCREW (916231) 558 RON
107 1 1 MOTOR. CARRIER. (322330) 3018 RON
108 1 1 FAN BAFFLE (916128) 781 RON
109 1 1 CLAMP. BRIDGE (322894) 893 RON
110 1 2 SCREW NO.8 X 13 (894748) 558 RON
111 1 2 SHAFT (C) BRUSH BOX (321337) Indisponibil Indisponibil
112 1 2 SPECIAL SCREW M6 BRUSH 230V SA (322950) Indisponibil Indisponibil
113 1 2 000000-00 - Indisponibil
114 1 1 GEAR CASE CAPACITOR X 0 1 F (321384) Indisponibil Indisponibil
117 1 1 BUTTON. LOCK- OFF (322369-00) 781 RON
118 1 1 LASER COVER LEVER (323136) Indisponibil Indisponibil
119 1 1 000000-00 - Indisponibil
120 1 1 CLAMP CORD (821070) 558 RON
121 1 2 SCREW. 3 . 5 X 13 DIN798 (911324) 558 RON
122 1 1 SA GEAR BOX TOP (324817-00) 34336 RON
123 1 1 S. A. GEARBOX. BOTTOM (322667) 25164 RON
124 1 11 SCREW M4 (810091-00) 558 RON
125 1 1 SA REPAIR KIT (SERVICE) (1008559-01) 4825 RON
126 1 2 DAMPER SWITCH LEAD BLACK (878756) Indisponibil Indisponibil
127 1 1 BEARING. BLACK (322377) 2124 RON
129 1 1 SEAL. FELT (325990-00) 105 RON
130 1 1 S. A. BLADE CLAMP R/H (368469-00) 4472 RON
131 1 1 S. A. BLADE CLAMP L/H (368470-00) 4472 RON
132 1 2 BLADE CLAMP FASTENINGS (SERVICE) (495253-00) 5591 RON
135 1 1 BAR. 11 LOGGER (325334-00) 3124 RON
135 1 1 000000-00 - Indisponibil
136 1 2 SCREW. M6 CSK. CAP (324776-00) 781 RON
138 1 2 DAMPER. BEARING (322661) 105 RON
139 1 1 BRUSHING (322662) 558 RON
141 1 1 DAMPER. BEARING (322659) 1117 RON
142 1 1 DAMPER. MOTOR (322660) 190 RON
143 1 1 CLAMSHELL SET JADE GREEN (325602-04) 17335 RON
144 1 9 SCREW (911325) 558 RON
145 1 2 NUT (911018) 558 RON
146 1 2 000000-00 - Indisponibil
147 1 2 SCREW (911281) 558 RON
148 1 1 000000-00 - Indisponibil
149 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
150 1 1 799334-13 - Indisponibil
153 1 1 HANDLE COVER JADE GREEN (322363-04) 2795 RON
154 1 1 000000-00 - Indisponibil
155 1 4 SCREW (911026) 558 RON
158 1 1 322928 SCREW. HEX SKTM6 X 25 / 8 (322928) Indisponibil Indisponibil
162 1 1 WARNING LABEL (323504-00) 781 RON
163 1 1 BEARING SPEC.LUBRICATION SBI220 (325881-01) 3018 RON
164 1 2 SA REPAIR KIT (SERVICE) (1008559-01) 4825 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 BRAND LABEL KS385 (584453-00) 781 RON
816 1 1 000000-00 - Indisponibil
