Top » Piese de schimb » PIESE BLACK & DECKER » KS1000E Type 1

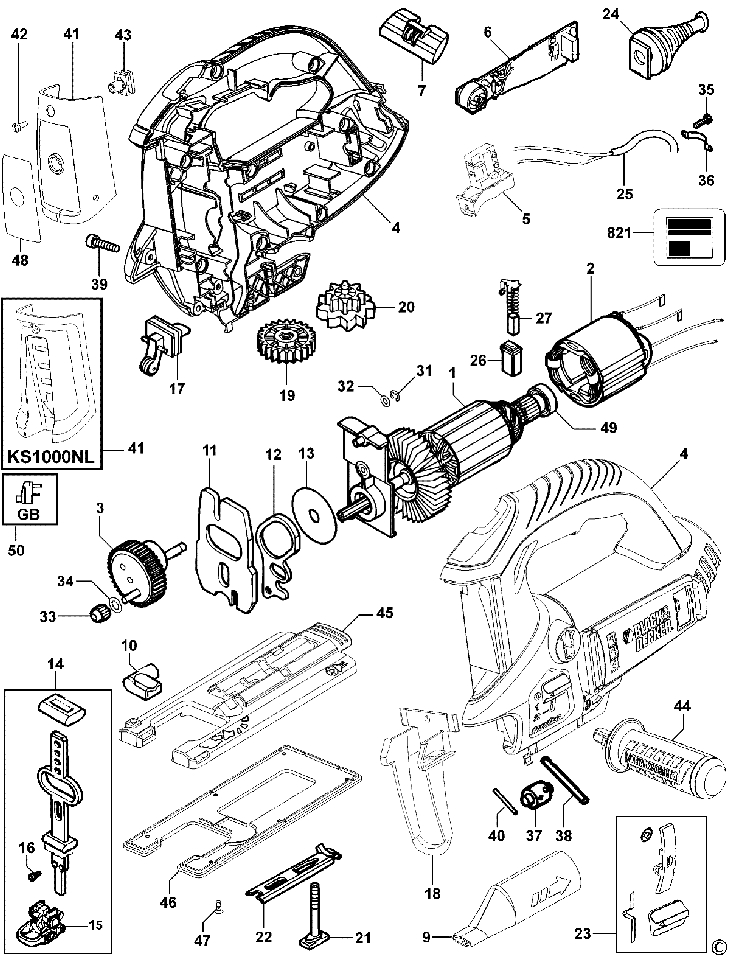

KS1000E JIGSAW Type 1
[KS1000E Type 1]
KS1000E JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V (90501955) 17335 RON
2 1 1 000000-00 - Indisponibil
3 1 1 GEAR SA (583821-00) 3466 RON
4 1 1 CLAMSHELL (90502493) 12861 RON
5 1 1 SWITCH (90500734) 2347 RON
6 1 1 PCB 230V (90501936) 6821 RON
7 1 1 BUTTON LOCK-ON (582606-00) 105 RON
9 1 1 VACUUM ADAPTOR (90501915) 893 RON
10 1 1 ELBOW TUBE (582732-00) 558 RON
11 1 1 BALANCE WEIGHT (583011-00) 3466 RON
12 1 1 FORK (583002-00) 190 RON
13 1 1 000000-00 - Indisponibil
14 1 1 SHAFT SA (583822-00) 5591 RON
15 1 1 BLADE CLAMP (582593-00) 2124 RON
16 1 2 SCREW (583173-00) 781 RON
17 1 1 BLADE SUPPORT SA (585414-00) 2124 RON
18 1 1 GUARD (90500735) 781 RON
19 1 1 GEAR SA (582768-00) 781 RON
20 1 1 ACTUATOR (582601-00) 781 RON
21 1 1 LOCKING SCREW (582600-00) 781 RON
22 1 1 000000-00 - Indisponibil
23 1 1 SELECTOR SA (90505148) 105 RON
24 1 1 CORD PROTECTOR (582722-00) 781 RON
25 1 1 CORDSET QS (330080-03) 4137 RON
26 1 2 BRUSHBOX (582696-00) 558 RON
27 1 2 BRUSH & SPRING KS888/999 HPS6000 (582761-02) 1788 RON
31 1 1 E CLIP (571181-00) 558 RON
32 1 1 WASHER (582717-00) 558 RON
33 1 1 ROLLER DRIVE (795688-00) 1229 RON
34 1 1 SPRING WASHER (823954) 558 RON
35 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
36 1 1 CLAMP CORD (821070) 558 RON
37 1 1 SELECTOR (582925-00) 558 RON
38 1 1 SELECTOR ROD (795675) 558 RON
39 1 9 SCREW NO.8 X 19 POLY (809961) 558 RON
40 1 1 000000-00 - Indisponibil
41 1 1 LASER (90501946) 10512 RON
42 1 1 SCREW (489427-00) 558 RON
43 1 1 INSERT (489246-00) 893 RON
44 1 1 SIDE HANDLE (90501959) 3018 RON
45 1 1 SHOE (90501913) 3466 RON
46 1 1 SOLE PLATE (90501914) 105 RON
47 1 6 SCREW (90502260) 558 RON
48 1 1 LABEL (90501330) 558 RON
49 1 1 BEARING (574853-08) 1117 RON
50 1 1 ADAPTOR SA (588384-00) 2795 RON
821 1 1 000000-00 - Indisponibil
