Top » Piese de schimb » PIESE BLACK & DECKER » KR70L Type 1

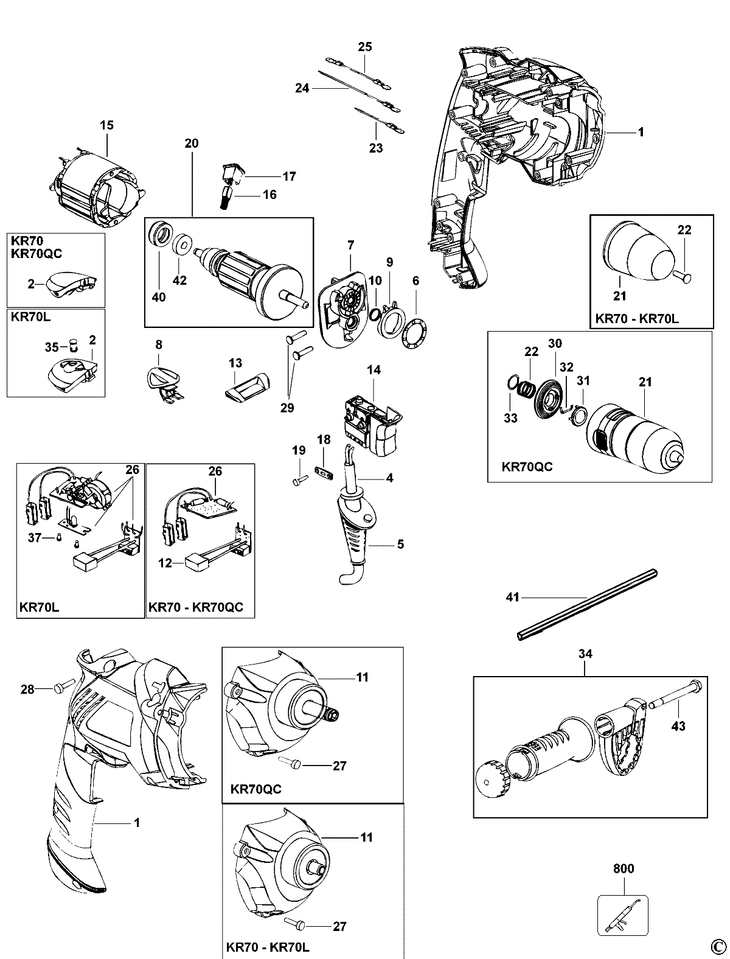

KR70L HAMMER DRILL Type 1
[KR70L Type 1]
KR70L HAMMER DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (617328-00) 9282 RON
2 1 1 000000-00 - Indisponibil
4 1 1 CORDSET GB (330060-53) 5031 RON
5 1 1 CORD PROTECTOR (611721-00) 781 RON
6 1 1 THRUST RACE (892261) 781 RON
7 1 1 SA BEARING HOUSING (374216-00) 5031 RON
8 1 1 SELECTOR (613494-00) 781 RON
9 1 1 CAM RING (374189-00) 781 RON
10 1 1 SPRING (821986) 558 RON
11 1 1 GEARCASE COVER SA (615152-00) 7940 RON
13 1 1 ACTUATOR FWD/REV (614813-00) 781 RON
14 1 1 SWITCH (615133-00) 11519 RON
15 1 1 MOTOR PACK (589235-00) 23598 RON
16 1 2 BRUSH 230V SA (570544-00) 105 RON
17 1 2 BRUSH BOX HOLDER (875735) 558 RON
18 1 1 CLAMP CORD CORNER (329301-00) 558 RON
19 1 2 SCREW (330019-38) 558 RON
20 1 1 MOTOR PACK (589235-00) 23598 RON
21 1 1 CHUCK KEYLESS 13MM 2 SLEEVE 3/8 THREAD cod vechi 586589-00 (586589-00L) 11519 RON
22 1 1 Screw M5X18 (805434) 558 RON
23 1 1 LEAD SA (615145-01) 893 RON
24 1 1 LEAD SA (615145-02) 781 RON
25 1 1 LEAD SA (615145-00) 893 RON
26 1 1 PCB SA (615938-00) 9282 RON
27 1 4 SCREW (330019-14) 558 RON
28 1 7 Screw M3.5X16 T15 (330019-03) 558 RON
29 1 2 SCREW (619657-00) 558 RON
34 1 1 HANDLE SA (614670-01) 3018 RON
35 1 1 000000-00 - Indisponibil
37 1 2 000000-00 - Indisponibil
40 1 1 MOUNTING RING (812970) 558 RON
41 1 1 DEPTH STOP (372814-00) 1229 RON
42 1 1 BEARING D7X19X6 607-2Z C3 (330003-02) 4137 RON
43 1 1 BOLT M8 X 95 HEX (813918) 781 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
