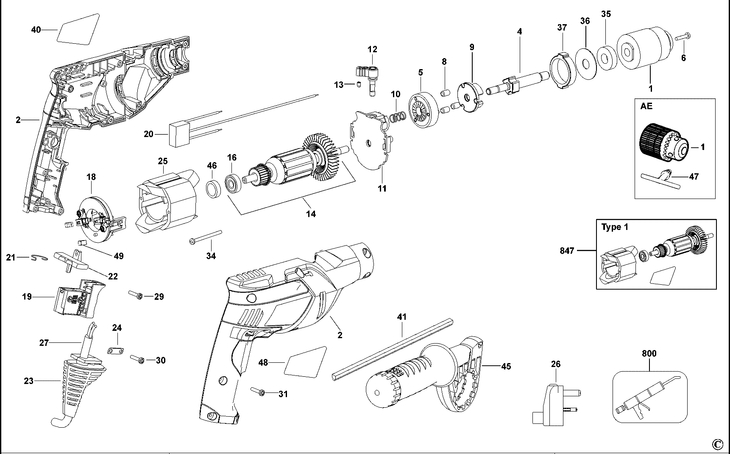

KR603 HAMMER DRILL Type 2
[KR603 Type 2]
KR603 HAMMER DRILL Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CHUCK KEYLESS (629530-01) 11519 RON
2 1 1 HOUSING SA (492470-00) 7940 RON
4 1 1 SPINDLE SA (488643-00) 3018 RON
5 1 1 GEAR (488642-00) 4137 RON
6 1 1 Screw M5X18 (805434) 558 RON
8 1 3 ROLLER (478752-00) 558 RON
9 1 1 CARRIER (478748-00) 1452 RON
10 1 1 SPRING (491055-00) 558 RON
11 1 1 BEARING HOUSING (488624-01) 5031 RON
12 1 1 SELECTOR SA (490715-00) 105 RON
13 1 1 DETENT (326467-00) 558 RON
14 1 1 ARMATURE SA (645698-00) 1891 RON
14 1 1 ARMATURE SA (90566176) 12861 RON
16 1 1 BEARING (606290-01) 1117 RON
18 1 1 BRUSH HOLDER SA (90525184) 2795 RON
19 1 1 SWITCH (492291-00) 5591 RON
20 1 1 CAPACITOR (492230-00) 1452 RON
21 1 1 Spring coil (629167-00) 558 RON
22 1 1 Bar Directional (629168-00) 781 RON
23 1 1 CORD PROTECTOR (635395-00) 893 RON
24 1 1 CLAMP CORD CORNER (329301-00) 558 RON
25 1 1 FIELD SA (90566177) 7940 RON
25 1 1 FIELD SA (645699-00) 9282 RON
26 1 1 ADAPTOR SA (588384-00) 2795 RON
27 1 1 CORDSET GB (589164-00) 5591 RON
29 1 2 SCREW (911026) 558 RON
30 1 2 SCREW (330019-38) 558 RON
31 1 8 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
34 1 2 Screw M3.15 X42 (330019-63) 558 RON
35 1 1 BEARING BALL (606290-00) 190 RON
36 1 1 WASHER (478753-00) 558 RON
37 1 1 LOCKING RING (478793-00) 1117 RON
40 1 1 LABEL (493395-00) 558 RON
41 1 1 DEPTH STOP (372814-00) 1229 RON
45 1 1 HANDLE SA (614670-01) 3018 RON
46 1 1 SLEEVE (635176-00) 558 RON
48 1 1 RATING PLATE (90556830) 558 RON
48 1 1 RATING PLATE (90556835) 558 RON
49 1 1 BRUSH PAIR 230V (90587238) 105 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
