Top » Piese de schimb » PIESE BLACK & DECKER » KG751 Type 1

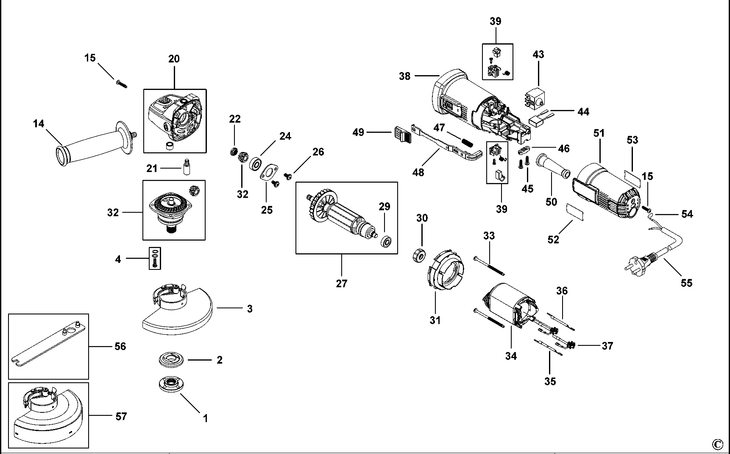

KG751 SMALL ANGLE GRINDER Type 1
[KG751 Type 1]
KG751 SMALL ANGLE GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (569198-00) 105 RON
2 1 1 INNER FLANGE (569200-00) 105 RON
3 1 1 GUARD (1004519-01) 5591 RON
14 1 1 145SIDE HANDLE (1004525-17) 2347 RON
15 1 5 SCREW (569209-00) 558 RON
20 1 1 GEARBOX SA (1004519-04) 7940 RON
21 1 1 SCREW (1004525-23) 893 RON
22 1 1 NUT (569175-00) 558 RON
24 1 1 BEARING (569167-00) 1788 RON
25 1 1 COVERPLATE (569168-00) 558 RON
26 1 2 SCREW (569170-00) 558 RON
27 1 1 ARMATURE SA (1004525-26) 20467 RON
29 1 1 BEARING (1004525-27) 2124 RON
30 1 1 BEARING HOLDER (1004525-28) 558 RON
31 1 1 BAFFLE FAN (1004525-29) 781 RON
32 1 1 SPINDLE & GEAR SA (1004519-10) 14315 RON
33 1 2 SCREW (1004525-32) 558 RON
34 1 1 FIELD (1004525-33) 11519 RON
35 1 1 LEADWIRE (1004525-34) 781 RON
36 1 1 LEADWIRE (1004525-35) 781 RON
37 1 2 CHOKE (1004525-36) 2795 RON
38 1 1 HOUSING (1004519-16) 5591 RON
39 1 1 BRUSH HOLDER PAIR (1004519-17) 4472 RON
43 1 1 SWITCH (1004525-42) 4137 RON
44 1 1 CAPACITOR (1004525-43) 2795 RON
45 1 2 SCREW (596430-00) 558 RON
46 1 1 CABLE CLAMP (569195-00) 558 RON
47 1 1 SPRING (1004525-45) 558 RON
48 1 1 LINKAGE SA (1004525-46) 781 RON
49 1 1 ACTUATOR (1004519-21) 781 RON
50 1 1 CORD PROTECTOR (1004525-48) 781 RON
51 1 1 COVER (1004525-49) 3466 RON
52 1 1 BRAND LABEL (1004519-24) 558 RON
53 1 1 RATING PLATE (1004519-38) 558 RON
54 1 1 LABEL (1004519-30) 558 RON
55 1 1 CORDSET (1004519-33) 12861 RON
56 1 1 SPANNER (569197-00) 105 RON
57 1 1 GUARD CUT OFF (1004484-07) 9282 RON
