Top » Piese de schimb » PIESE BLACK & DECKER » KG75 Type 1

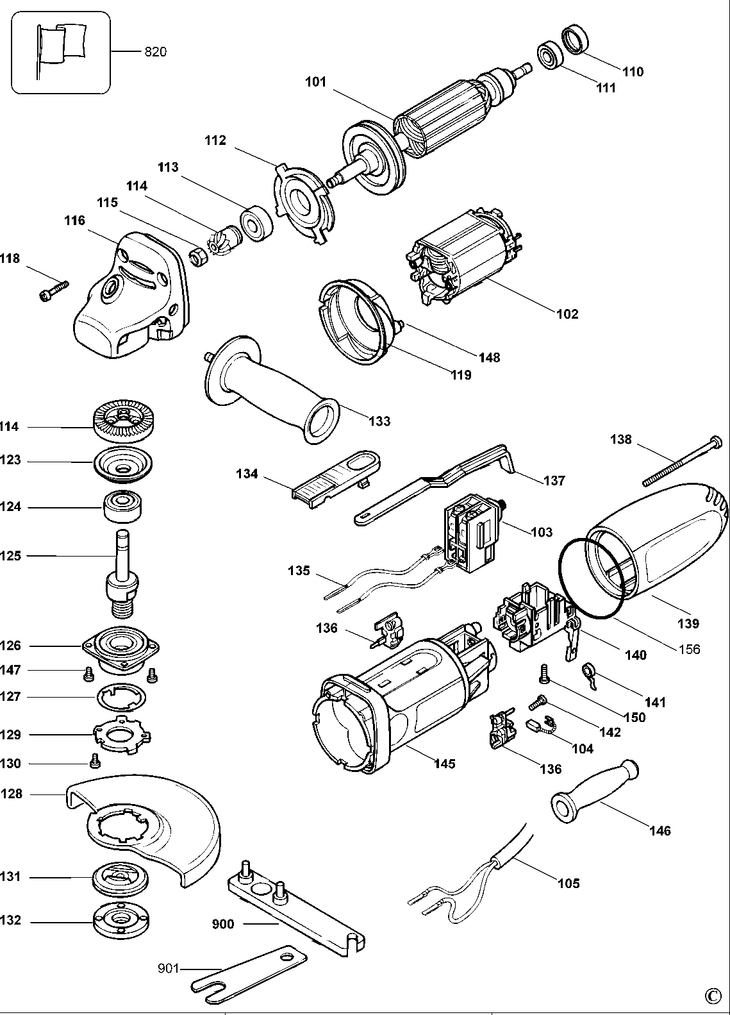

KG75 GRINDER Type 1
[KG75 Type 1]
KG75 GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 000000-00 - Indisponibil
102 1 1 FIELD (573576-00) 15993 RON
103 1 1 SWITCH (945614-00) 4137 RON
104 1 2 BRUSH 230V SA (930151-00) 2124 RON
105 1 1 000000-00 - Indisponibil
110 1 1 SLEEVE BEARING (930275-00) 558 RON
111 1 1 000000-00 - Indisponibil
112 1 1 Fan Flange (401622-01) 105 RON
113 1 1 BEARING (N110358) 2347 RON
114 1 1 GEAR & PINION (945295-01) 10512 RON
115 1 1 Nut (Pinion fixing) (945292-00) 558 RON
116 1 1 000000-00 - Indisponibil
118 1 4 SCREW (562097-01) 558 RON
119 1 1 BAFFLE (401623-00) 781 RON
123 1 1 Gear Flange (945299-00) 781 RON
124 1 1 Bearing DW801 (605040-22) 2347 RON
125 1 1 000000-00 - Indisponibil
126 1 1 GEARCASE COVER (945298-00) 2795 RON
127 1 1 Guard Spring (393576-00) 781 RON
128 1 1 GUARD (944685-00) 3466 RON
129 1 1 FLANGE (605415-00) 781 RON
130 1 3 000000-00 - Indisponibil
131 1 1 FLANGE (560442-00) 1229 RON
132 1 1 FLANGE (560443-00) 1117 RON
133 1 1 SIDE HANDLE (573115-00) 1452 RON
134 1 1 SLIDER SA KG65 (574258-00) 893 RON
135 1 2 000000-00 - Indisponibil
136 1 2 SA BRUSH HOLDER (569666-00) 105 RON
137 1 1 000000-00 - Indisponibil
138 1 1 SCREW (562097-13) 558 RON
139 1 1 000000-00 - Indisponibil
140 1 1 SWITCH SUPPORT (5140000-13) 190 RON
141 1 1 TORSION SPRING (562204-00) 558 RON
142 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
145 1 1 000000-00 - Indisponibil
146 1 1 000000-00 - Indisponibil
147 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
148 1 2 PLUG (949638-01) 558 RON
820 1 1 000000-00 - Indisponibil
900 1 1 000000-00 - Indisponibil
901 1 1 000000-00 - Indisponibil
