Top » Piese de schimb » PIESE BLACK & DECKER » KG2300 Type 2

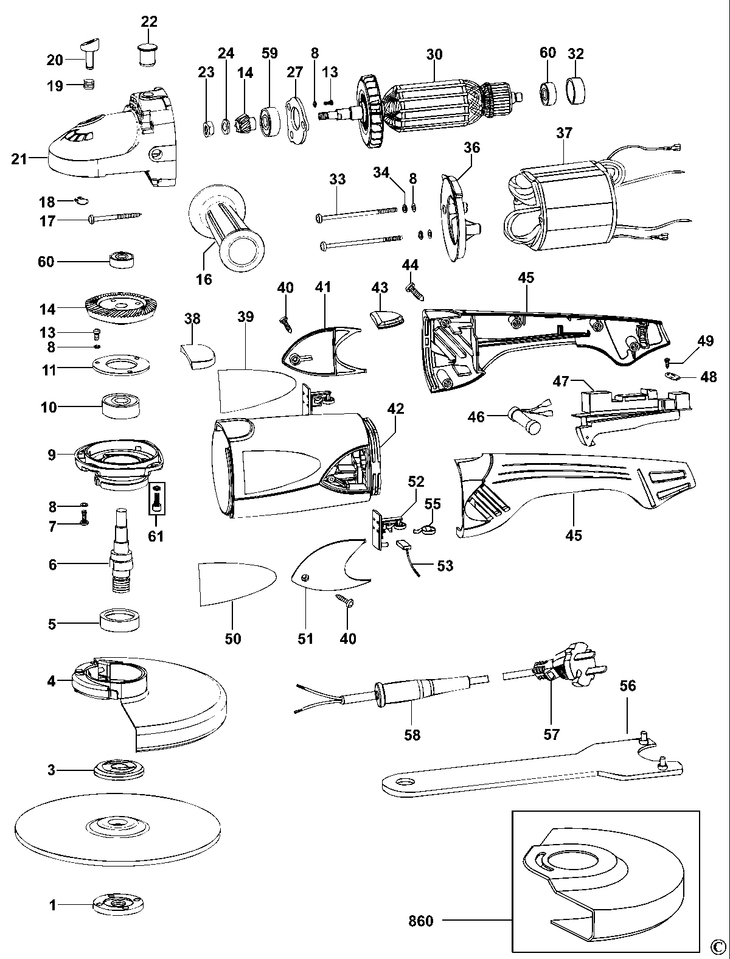

KG2300 ANGLE GRINDER Type 2
[KG2300 Type 2]
KG2300 ANGLE GRINDER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (597870-00) 1117 RON
3 1 1 INNER FLANGE (597871-00) 1117 RON
4 1 1 "GUARD 9""" (597872-00) 7940 RON
5 1 1 SEAL (597873-00) 105 RON
6 1 1 SPINDLE (597874-00) 2347 RON
7 1 5 SCREW (597875-00) 781 RON
8 1 11 WASHER SPRING (597876-00) 558 RON
9 1 1 GEARCASE COVER (597877-00) 3018 RON
10 1 1 BEARING (597878-00) 7940 RON
11 1 1 RETAINER (597879-00) 781 RON
13 1 6 SCREW (597880-00) 558 RON
14 1 1 GEAR & PINION (597881-00) 12861 RON
16 1 1 SIDE HANDLE (597882-00) 2124 RON
17 1 4 SCREW (597883-00) 781 RON
18 1 1 CIRCLIP (597884-00) 558 RON
19 1 1 SPRING (597885-00) 558 RON
20 1 1 PIN (597886-00) 105 RON
21 1 1 GEARCASE (597887-00) 10512 RON
22 1 1 COVER (597888-00) 781 RON
23 1 1 NUT (597889-00) 558 RON
24 1 1 WASHER SPRING (597890-00) 558 RON
27 1 1 RETAINER (597891-00) 781 RON
30 1 1 ARMATURE SA (597892-00) 28296 RON
32 1 1 SLEEVE (597893-00) 781 RON
33 1 2 SCREW (597894-00) 781 RON
34 1 2 WASHER (597895-00) 558 RON
36 1 1 BAFFLE FAN (597896-00) 1452 RON
37 1 1 FIELD SA (597897-00) 22144 RON
38 1 1 BUNG (597898-00) 893 RON
39 1 1 BRAND LABEL (597899-00) 893 RON
40 1 2 SCREW (597900-00) 558 RON
41 1 1 COVER RH (597901-00) 105 RON
42 1 1 FIELDCASE (597902-00) 9282 RON
43 1 1 BUNG (597903-00) 893 RON
44 1 5 SCREW (597904-00) 558 RON
45 1 1 HANDLE SA (597905-00) 5591 RON
46 1 1 RESISTOR (597906-00) 4472 RON
47 1 1 SWITCH (597907-00) 23598 RON
48 1 1 CORD CLAMP (597908-00) 558 RON
49 1 2 SCREW (597909-00) 558 RON
50 1 1 LABEL (597910-00) 893 RON
51 1 1 COVER LH (597911-00) 105 RON
52 1 2 BRUSH HOLDER SA (597912-00) 190 RON
53 1 2 BRUSH (597913-00) 2347 RON
55 1 2 BRUSH SPRING (597914-00) 893 RON
56 1 1 SPANNER (597916-00) 2347 RON
57 1 1 CORDSET (597919-00) 7940 RON
58 1 1 CORD PROTECTOR (597915-00) 105 RON
59 1 1 BEARING (569347-00) 2124 RON
60 1 2 BEARING (569337-00) 2124 RON
61 1 1 SCREW.SPECIAL (1004505-00) 781 RON
860 1 1 GUARD SA (1004484-02) 15993 RON
