KG2000 ANGLE GRINDER Type 3
[KG2000 Type 3]

Click pentru a mari

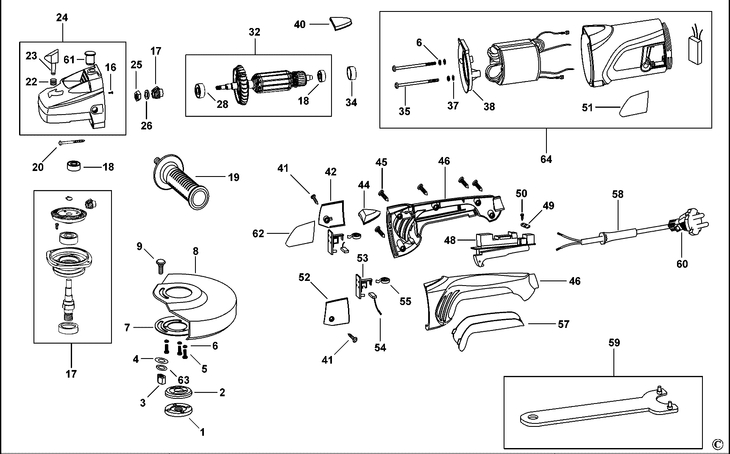

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	FLANGE (569320-00)	12²⁹ RON
2	1	1	INNER FLANGE (569321-00)	12²⁹ RON
3	1	1	NUT (569322-00)	5⁵⁸ RON
4	1	1	WASHER (569323-00)	7⁸¹ RON
5	1	3	SCREW (569324-00)	5⁵⁸ RON
6	1	3	WASHER SPRING (569325-00)	5⁵⁸ RON
7	1	1	FLANGE (569326-00)	5⁵⁸ RON
8	1	1	GUARD (569327-00)	68²¹ RON
9	1	1	BOLT (569328-00)	5⁵⁸ RON
16	1	3	SCREW (1004449-00)	5⁵⁸ RON
17	1	1	SPINDLE & GEAR SA (1004450-01)	173³⁵ RON
18	1	2	BEARING (569337-00)	21²⁴ RON
19	1	1	HANDLE (569338-00)	17⁸⁸ RON
20	1	4	SCREW (569339-00)	5⁵⁸ RON
22	1	1	SPRING (569341-00)	5⁵⁸ RON
23	1	1	SPINDLE LOCK (569342-00)	5⁵⁸ RON
24	1	1	GEARCASE SA (1004451-00)	143¹⁵ RON
25	1	1	NUT (569344-00)	5⁵⁸ RON
26	1	1	WASHER SPRING (569345-00)	5⁵⁸ RON
28	1	1	BEARING (569347-00)	21²⁴ RON
32	1	1	ARMATURE (569351-00)	251⁶⁴ RON
34	1	1	BEARING HOLDER (569353-00)	5⁵⁸ RON
35	1	2	SCREW (569354-00)	5⁵⁸ RON
37	1	2	WASHER (569356-00)	5⁵⁸ RON
38	1	1	BAFFLE (569357-00)	14⁵² RON
40	1	1	PAD (569359-00)	8⁹³ RON
41	1	2	SCREW (569360-00)	5⁵⁸ RON
42	1	1	BRUSH CAP (569361-00)	7⁸¹ RON
44	1	1	PAD (569363-00)	7⁸¹ RON
45	1	5	SCREW (569364-00)	5⁵⁸ RON
46	1	1	HANDLE SA (1004449-07)	30¹⁸ RON
48	1	1	SWITCH (1004449-03)	298⁶² RON
49	1	1	CABLE CLAMP (569368-00)	5⁵⁸ RON
50	1	2	SCREW (569369-00)	5⁵⁸ RON
51	1	1	BRAND LABEL (569370-00)	5⁵⁸ RON
52	1	1	BRUSH CAP (569371-00)	7⁸¹ RON
53	1	2	BRUSH HOLDER (569372-00)	10⁵ RON
54	1	2	BRUSH 230V SA (569373-00)	23⁴⁷ RON
55	1	2	BRUSH SPRING (569374-00)	7⁸¹ RON
57	1	1	HANDLE COVER (569376-00)	12²⁹ RON
58	1	1	CORD PROTECTOR (569377-00)	7⁸¹ RON
59	1	1	WRENCH (569378-00)	17⁸⁸ RON
60	1	1	CORDSET (569379-00)	128⁶¹ RON
61	1	2	CAP (569283-00)	7⁸¹ RON
62	1	1	RATING PLATE (1004449-05)	7⁸¹ RON
63	1	1	WASHER (1004449-06)	5⁵⁸ RON
64	1	1	FIELD CASE KIT (1004530-03)	548⁴ RON
