Top » Piese de schimb » PIESE BLACK & DECKER » KD650 Type 3

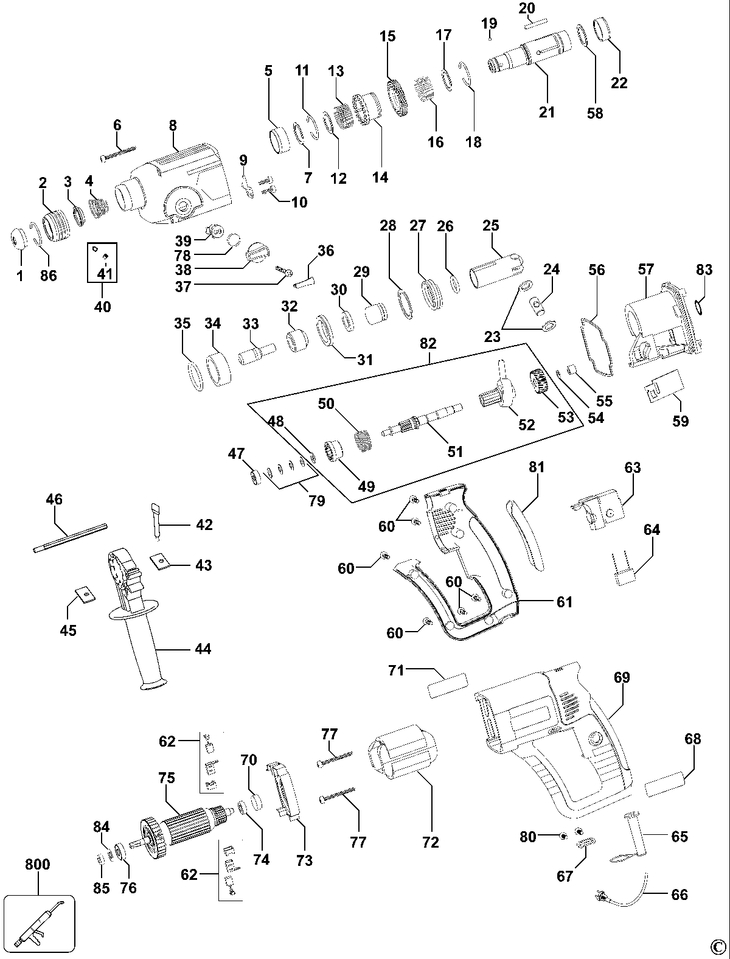

KD650 ROTARY HAMMER Type 3
[KD650 Type 3]
KD650 ROTARY HAMMER Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (569381-00) 781 RON
2 1 1 COVER (569382-00) 781 RON
3 1 1 RETAINER (569383-00) 781 RON
4 1 1 SPRING (569384-00) 558 RON
5 1 1 BEARING (90553475) 3018 RON
6 1 4 SCREW (569386-00) 558 RON
7 1 1 WASHER (90553476) 781 RON
8 1 1 HOUSING FRONT (569388-00) 4137 RON
9 1 1 BRAKE (90553471) 1117 RON
10 1 2 SCREW (90553472) 558 RON
11 1 1 RING (90553477) 781 RON
12 1 1 RING (90553478) 781 RON
13 1 1 SPRING (90553479) 105 RON
14 1 1 SLEEVE (90553480) 3466 RON
15 1 1 GEAR (90553481) 4137 RON
16 1 1 SPRING (90553482) 1117 RON
17 1 1 RING (90553483) 781 RON
18 1 1 RING (90553484) 781 RON
19 1 1 BALL STEEL (90550363) 558 RON
20 1 1 PIN (90553487) 781 RON
21 1 1 SPINDLE (1002744-00) 14315 RON
22 1 1 SEAL (569402-00) 3018 RON
23 1 2 WASHER (90549884) 558 RON
24 1 1 PIN (90553557) 2347 RON
25 1 1 CYLINDER (90553506) 4137 RON
26 1 1 O RING (569406-00) 781 RON
27 1 1 HAMMER (569407-00) 1788 RON
28 1 1 RING (569408-00) 558 RON
29 1 1 SLEEVE (569409-00) 1788 RON
30 1 1 O RING (569410-00) 781 RON
31 1 1 O RING (569411-00) 558 RON
32 1 1 SLEEVE (569412-00) 1229 RON
33 1 1 HAMMER (569413-00) 1229 RON
34 1 1 BLOCK (569414-00) 893 RON
35 1 1 WASHER (569415-00) 3466 RON
36 1 1 COVER (569416-00) 558 RON
37 1 1 SCREW (569417-00) 558 RON
38 1 1 KNOB (569418-00) 781 RON
39 1 1 REVERSER (569419-00) 558 RON
40 1 1 000000-00 - Indisponibil
41 1 1 000000-00 - Indisponibil
42 1 1 LOCKING KNOB (569422-00) 558 RON
43 1 1 WASHER CLAMP (569423-00) 558 RON
44 1 1 SIDE HANDLE (569424-00) 2124 RON
45 1 1 NUT (569425-00) 558 RON
46 1 1 DEPTH ROD (569426-00) 781 RON
47 1 1 BEARING (90553558) 190 RON
48 1 1 RING (90553508) 781 RON
49 1 1 CLUTCH (90553510) 3466 RON
50 1 1 SPRING (90553511) 1452 RON
51 1 1 SHAFT (569431-00) 2795 RON
52 1 1 BEARING (569432-00) 6821 RON
53 1 1 GEAR (569433-00) 190 RON
54 1 1 SEAL (569434-00) 893 RON
55 1 1 SEAL (569435-00) 1229 RON
56 1 1 GASKET (569436-00) 781 RON
57 1 1 HOLDER (569437-00) 4472 RON
58 1 1 WASHER (569438-00) 558 RON
59 1 1 SLIDER (569439-00) 558 RON
60 1 6 SCREW (1002080-00) 893 RON
61 1 1 HANDLE COVER (569440-00) 2347 RON
61 1 1 HOUSING REPAIR KIT (1003708-00) 12861 RON
62 1 2 BRUSH HOLDER 230V (90592921-01) 3466 RON
63 1 1 SWITCH (569442-00) 14315 RON
64 1 1 CAPACITOR (1004141-00) 1117 RON
65 1 1 CORD PROTECTOR (569444-00) 781 RON
66 1 1 CORDSET (569445-00) 5031 RON
67 1 1 CABLE CLAMP (569447-00) 558 RON
68 1 1 NAMEPLATE (569448-00) 558 RON
69 1 1 HOUSING REPAIR KIT (1003708-00) 12861 RON
69 1 1 HOUSING REAR (569449-00) 7940 RON
70 1 1 SLEEVE BEARING (569450-00) 1229 RON
71 1 1 RATING PLATE (1004141-02) 1229 RON
72 1 1 FIELD (569452-00) 9282 RON
73 1 1 BAFFLE (569453-00) 781 RON
74 1 1 BEARING (569454-00) 1117 RON
75 1 1 000000-00 - Indisponibil
76 1 1 BEARING (569456-00) 1117 RON
77 1 2 SCREW (569457-00) 558 RON
78 1 1 RING (569458-00) 781 RON
79 1 1 000000-00 - Indisponibil
80 1 2 SCREW (569460-00) 558 RON
81 1 1 COVER REAR (1002081-00) 2347 RON
81 1 1 HOUSING REPAIR KIT (1003708-00) 12861 RON
82 1 1 INTERSHAFT SA (1002481-00) 14315 RON
83 1 1 SEAL (1002746-00) 558 RON
84 1 1 RING (1002747-00) 558 RON
85 1 1 SLEEVE (1002748-00) 781 RON
86 1 1 RETAINER (1002745-00) 558 RON
