Top » Piese de schimb » PIESE BLACK & DECKER » KD1001K Type 1

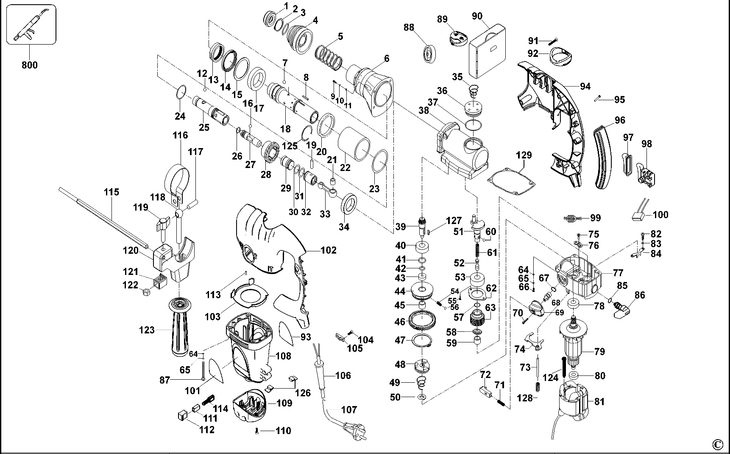

KD1001K ROTARY HAMMER Type 1
[KD1001K Type 1]
KD1001K ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LIP SEAL (597393-00) 105 RON
2 1 1 000000-00 - Indisponibil
3 1 1 O RING (1004509-00) 781 RON
4 1 1 SLEEVE SA (597396-00) 190 RON
5 1 1 SPRING (597397-00) 558 RON
6 1 1 000000-00 - Indisponibil
7 1 1 BALL STEEL (597399-00) 558 RON
8 1 1 INSERT (597400-00) 558 RON
9 1 4 SCREW (597401-00) 558 RON
10 1 4 WASHER SPRING (597402-00) 558 RON
11 1 4 WASHER (597403-00) 558 RON
12 1 1 BALL STEEL (597404-00) 558 RON
13 1 1 COVER (597405-00) 1229 RON
14 1 1 SEAL (597406-00) 893 RON
15 1 1 O RING (597407-00) 558 RON
16 1 1 BEARING (597409-00) 2795 RON
17 1 1 BALL STEEL (597408-00) 558 RON
18 1 1 CYLINDER (597410-00) 9282 RON
19 1 1 PIN (597411-00) 558 RON
20 1 1 RING (597412-00) 781 RON
21 1 1 BEARING NEEDLE (597413-00) 3018 RON
22 1 1 BUSH (597414-00) 105 RON
23 1 1 O RING (597415-00) 558 RON
24 1 1 O RING (597416-00) 558 RON
25 1 1 SPINDLE (1004509-01) 5031 RON
26 1 1 O RING (597418-00) 558 RON
27 1 1 BEAT PIECE (597419-00) 190 RON
28 1 1 GEAR (597420-00) 4472 RON
29 1 1 RAM (597421-00) 190 RON
30 1 1 O RING (597422-00) 105 RON
31 1 1 O RING (597423-00) 105 RON
32 1 1 PISTON (597424-00) 2347 RON
33 1 1 CON ROD (597425-00) 190 RON
34 1 1 BEARING (597426-00) 105 RON
35 1 1 SPRING (597427-00) 558 RON
36 1 1 COVER (597428-00) 781 RON
37 1 1 O RING (597429-00) 558 RON
38 1 1 CRANKCASE (597430-00) 9282 RON
39 1 1 PINION GEAR (597431-00) 4472 RON
40 1 1 BEARING (597432-00) 3018 RON
41 1 1 WASHER (597433-00) 558 RON
42 1 1 RING (597434-00) 558 RON
43 1 1 BEARING (597435-00) 1229 RON
44 1 1 WHEEL (597436-00) 6821 RON
45 1 1 BEARING NEEDLE (597437-00) 1229 RON
46 1 1 GEAR (597438-00) 4472 RON
47 1 1 CIRCLIP (597439-00) 781 RON
48 1 1 CLUTCH SA (597440-00) 2795 RON
49 1 1 SPRING (597441-00) 558 RON
50 1 1 WASHER (597443-00) 558 RON
51 1 1 CRANK (597444-00) 3018 RON
52 1 1 SPINDLE (597445-00) 781 RON
53 1 1 BEARING (597446-00) 2795 RON
54 1 1 SPRING (597447-00) 558 RON
55 1 2 SCREW (597448-00) 558 RON
56 1 1 BALL STEEL (597449-00) 558 RON
57 1 1 RING (597450-00) 558 RON
58 1 1 SEAL (597451-00) 558 RON
59 1 1 BEARING (597452-00) 2124 RON
60 1 1 BALL (597453-00) 558 RON
61 1 1 SPRING (597454-00) 558 RON
62 1 1 COVER BEARING (597455-00) 558 RON
63 1 1 GEAR (597456-00) 4137 RON
64 1 4 WASHER (597457-00) 558 RON
65 1 4 WASHER SPRING (597458-00) 558 RON
66 1 4 SCREW (597459-00) 558 RON
67 1 1 RING (597460-00) 558 RON
68 1 1 SHAFT (597461-00) 1452 RON
69 1 1 KNOB (597462-00) 558 RON
70 1 1 SCREW (597463-00) 558 RON
71 1 1 SPRING (597464-00) 558 RON
72 1 1 COVER (597465-00) 558 RON
73 1 1 BOLT (597466-00) 558 RON
74 1 1 FORK (597468-00) 1452 RON
75 1 1 SCREW (597469-00) 558 RON
76 1 1 STOP (597470-00) 781 RON
77 1 1 GEARBOX (597471-00) 6821 RON
78 1 1 BEARING (597472-00) 2795 RON
79 1 1 ARMATURE 230V (597473-00) 22144 RON
80 1 1 BEARING (597474-00) 190 RON
81 1 1 FIELD 230V (597475-00) 17335 RON
82 1 2 SCREW (597476-00) 558 RON
83 1 2 WASHER SPRING (597477-00) 558 RON
84 1 1 LOCKING DEVICE (597478-00) 558 RON
85 1 1 O RING (597479-00) 558 RON
86 1 1 KNOB (597480-00) 2795 RON
87 1 2 SCREW (597481-00) 558 RON
88 1 1 DUST GUARD (597482-00) 893 RON
89 1 1 COVER (597483-00) 893 RON
90 1 1 CASE (597484-00) 22144 RON
91 1 1 SCREW (597485-00) 558 RON
92 1 1 INSERT (597486-00) 893 RON
93 1 1 NAMEPLATE (597487-00) 558 RON
94 1 1 HOUSING RH (597488-00) 7940 RON
95 1 7 SCREW (597489-00) 558 RON
96 1 1 HANDLE COVER (597490-00) 1452 RON
97 1 1 SWITCH COVER (597491-00) 558 RON
98 1 1 SWITCH (597492-00) 4137 RON
99 1 1 CHOKE (597493-00) 105 RON
100 1 1 CAPACITOR (1004531-00) 781 RON
101 1 1 BRAND LABEL (597495-00) 558 RON
102 1 1 HOUSING LH (597496-00) 7940 RON
103 1 1 BAFFLE (597497-00) 781 RON
104 1 2 SCREW (597498-00) 558 RON
105 1 1 CORD CLAMP (597499-00) 558 RON
106 1 1 CORD PROTECTOR (597500-00) 558 RON
107 1 1 CORDSET (M/PLUG) (1003709-00) 7940 RON
108 1 1 HOUSING MOTOR (597502-00) 9282 RON
109 1 1 END CAP (1004509-03) 190 RON
110 1 2 SCREW (597504-00) 558 RON
111 1 2 BRUSHBOX SA (1004075-01) 1117 RON
112 1 2 BRUSHBOX SA (1004075-01) 1117 RON
113 1 1 DAMPER (597507-00) 558 RON
114 1 2 BRUSH 230V SA (597508-00) 2347 RON
115 1 1 DEPTH STOP (597509-00) 1117 RON
116 1 1 CLAMP (597510-00) 781 RON
117 1 1 BOLT (597511-00) 558 RON
118 1 1 NUT (597512-00) 893 RON
119 1 1 SCREW WING (597513-00) 558 RON
120 1 1 HOLDER (597514-00) 1452 RON
121 1 1 CLAMP (597515-00) 558 RON
122 1 1 NUT (597516-00) 558 RON
123 1 1 SIDE HANDLE (597517-00) 2795 RON
124 1 2 SCREW (597518-00) 558 RON
125 1 1 RING (597519-00) 558 RON
126 1 2 RUBBER PAD (597520-00) 781 RON
127 1 1 INSERT (597442-00) 558 RON
128 1 1 SPRING (597467-00) 558 RON
129 1 1 GASKET (1003529-00) 781 RON
130 1 1 BRUSHBOX SA (1004075-01) 1117 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
