Top » Piese de schimb » PIESE BLACK & DECKER » KC1800 Type 1

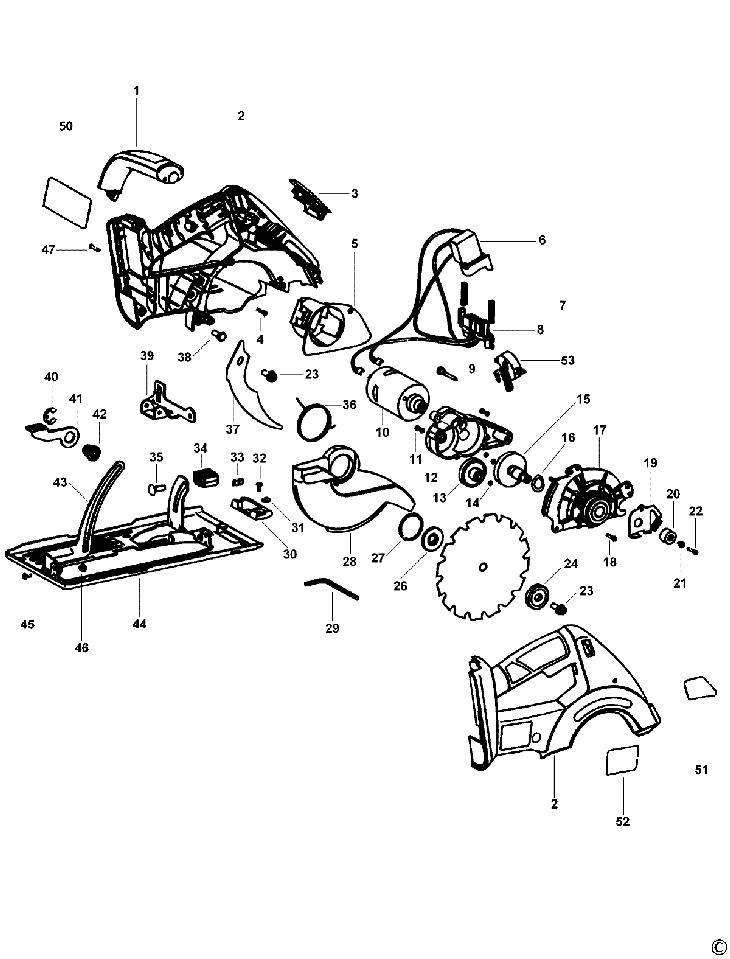

KC1800 CIRCULAR SAW Type 1
[KC1800 Type 1]
KC1800 CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA KC 1440 (497492-00) 1788 RON
2 1 1 CLAMSHELL SA (5104511-00) 7940 RON
3 1 1 SHROUD kc1440 (498693-00) 558 RON
4 1 2 SCREW (486563-00) 558 RON
5 1 1 BAFFLE kc1440 (497549-00) 781 RON
6 1 1 SWITCH & LEAD SA KC1440 (497515-00) 6821 RON
7 1 2 SPRING (5100035-01) 558 RON
8 1 1 TERMINAL BLOCK (5100034-01) 781 RON
9 1 1 PIN kc1440 (497486-01) 781 RON
10 1 1 MOTOR & PINION (497546-03) 39145 RON
11 1 2 SCREW kc1440 (498154-00) 558 RON
12 1 1 MOUNT SA (5106906-00) 7940 RON
13 1 1 INTERGEAR SA KC1440 (497535-00) 2795 RON
14 1 10 WASHER BOW (497174-00) 2124 RON
15 1 1 SPINDLE & GEAR SA kc1440 (497532-00) 4472 RON
16 1 1 WASHER BOW (499603-00) 558 RON
17 1 1 GEARCASE COVER (497527-00) 6821 RON
18 1 4 SCREW (497526-00) 558 RON
19 1 1 PLATE kc1440 (498507-00) 1117 RON
20 1 1 RUBBER kc1440 (497524-00) 558 RON
21 1 1 EYELET (497577-00) 558 RON
22 1 1 SCREW kc1440 (498156-00) 558 RON
23 1 2 BLADE BOLT kc1440 (497476-00) 781 RON
24 1 1 WASHER OUTER CLAMP kc1440 (497477-00) 1117 RON
26 1 1 WASHER kc1440 (497478-00) 105 RON
27 1 1 RETAINER kc1440 (497479-00) 1117 RON
28 1 1 GUARD KC1440 (498504-00) 2347 RON
29 1 1 KEY kc1440 (497570-02) 781 RON
30 1 1 INDICATOR kc1440 (497552-00) 558 RON
31 1 1 WASHER kc1440 (498513-00) 558 RON
32 1 1 CLIP KC1440 (497575-00) 781 RON
33 1 1 RUBBER (497583-00) 558 RON
34 1 1 KNOB SA kc1440 (497915-00) 893 RON
35 1 1 BOLT kc1440 (497558-00) 558 RON
36 1 1 SPRING KC1440 (497481-02) 781 RON
37 1 1 RIVING KNIFE kc1440 (498508-00) 3018 RON
38 1 1 BOLT kc1440 (497485-00) 558 RON
39 1 1 BRACKET kc1440 (497559-00) 2347 RON
40 1 1 CLIP KC1440 (497575-00) 781 RON
41 1 1 LEVER kc1440 (497576-00) 190 RON
42 1 1 NUTkc1440 (497898-00) 190 RON
43 1 1 BRACKET kc1440 (498506-00) 3018 RON
44 1 1 SHOE SA kc1440 (498505-00) 5591 RON
45 1 2 VIS kc1440 (497556-00) 558 RON
46 1 2 NUT kc1440 (497557-00) 558 RON
47 1 10 SCREW kc1440 (497495-00) 558 RON
50 1 1 BRAND LABEL (498586-04) 558 RON
51 1 1 BRAND LABEL (498586-00) 781 RON
52 1 1 RATING PLATE (498587-05) 558 RON
53 1 1 ACTUATOR KC1440 (499022-00) 893 RON
