Top » Piese de schimb » PIESE BLACK & DECKER » KA85 Type 3

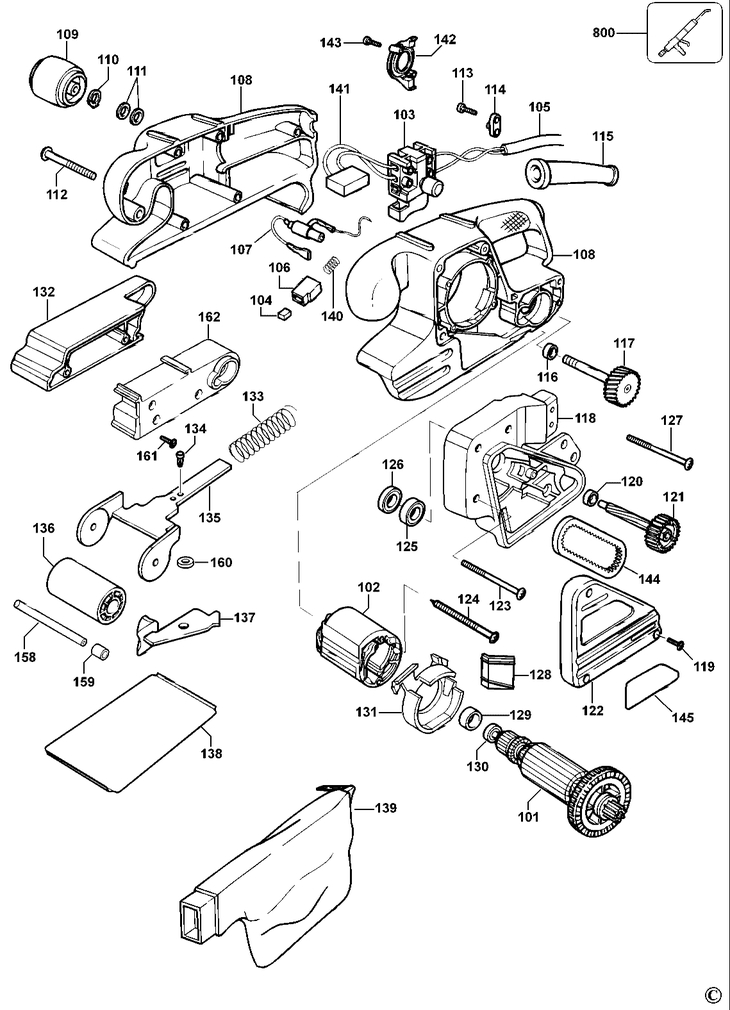

KA85 BELT SANDER Type 3
[KA85 Type 3]
KA85 BELT SANDER Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE SA (597707-00) 17335 RON
102 1 1 FIELD (597708-00) 12861 RON
103 1 1 SWITCH (569137-00) 3018 RON
104 1 2 BUSH KA85 (568274-00) 3018 RON
105 1 1 CORDSET (568277-00) 7940 RON
106 1 2 BRUSH HOLDER KA85 (568278-00) 105 RON
107 1 2 CHOKE SA KA85 (568279-00) 1229 RON
108 1 1 CLAMSHELL SET (597709-00) 15993 RON
109 1 1 ROLLER SA (568658-00) 3466 RON
110 1 1 CIRCLIP KA85 (568282-00) 558 RON
111 1 3 WASHER KA85 (568283-00) 558 RON
112 1 6 000000-00 - Indisponibil
113 1 2 SCREW KA85 (568285-00) 781 RON
114 1 1 CORD CLAMP (597711-00) 781 RON
115 1 1 CORD PROTECTOR KA85 (568287-00) 781 RON
116 1 1 BEARING KA85 (568406-00) 5591 RON
117 1 1 SPINDLE & GEAR KA85 (568289-00) 4137 RON
118 1 1 000000-00 - Indisponibil
119 1 5 SCREW KA85 (568291-00) 893 RON
120 1 1 BEARING (568292-00) 2124 RON
121 1 1 000000-00 - Indisponibil
122 1 1 COVER BELT (597713-00) 190 RON
123 1 3 SCREW KA85 (568295-00) 1117 RON
124 1 2 SCREW KA85 (568296-00) 781 RON
125 1 1 000000-00 - Indisponibil
126 1 1 SLEEVE KA85 (568298-00) 893 RON
127 1 2 SCREW KA85 (568299-00) 781 RON
128 1 1 COVER (597714-00) 3018 RON
129 1 1 SLEEVE KA85 (568301-00) 558 RON
130 1 1 BEARING KA85 (568302-00) 2124 RON
131 1 1 COVER (597718-00) 893 RON
132 1 1 COVER (597719-00) 3018 RON
133 1 1 SPRING KA85 (568305-00) 781 RON
134 1 1 RIVET KA85 (568306-00) 558 RON
135 1 1 FORK KA85 (568307-00) 2347 RON
136 1 1 000000-00 - Indisponibil
137 1 1 LEVER (569142-00) 893 RON
138 1 1 PLATE KA85 (568310-00) 105 RON
139 1 1 DUST BAG SA KA85 (568311-00) 3018 RON
140 1 2 SPRING KA85 (568312-00) 893 RON
141 1 1 CAPACITOR (568602-00) 1229 RON
142 1 2 BRUSH COVER (597715-00) 105 RON
143 1 2 000000-00 - Indisponibil
144 1 1 000000-00 - Indisponibil
145 1 1 LABEL (597717-00) 1117 RON
158 1 1 SHAFT KA85 (568405-00) 1117 RON
159 1 2 BEARING KA85 (568406-00) 5591 RON
160 1 1 WASHER KA85 (568407-00) 558 RON
161 1 3 SCREW KA85 (568408-00) 893 RON
162 1 1 SUPPORT BRACKET KA85 (568409-00) 5031 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
