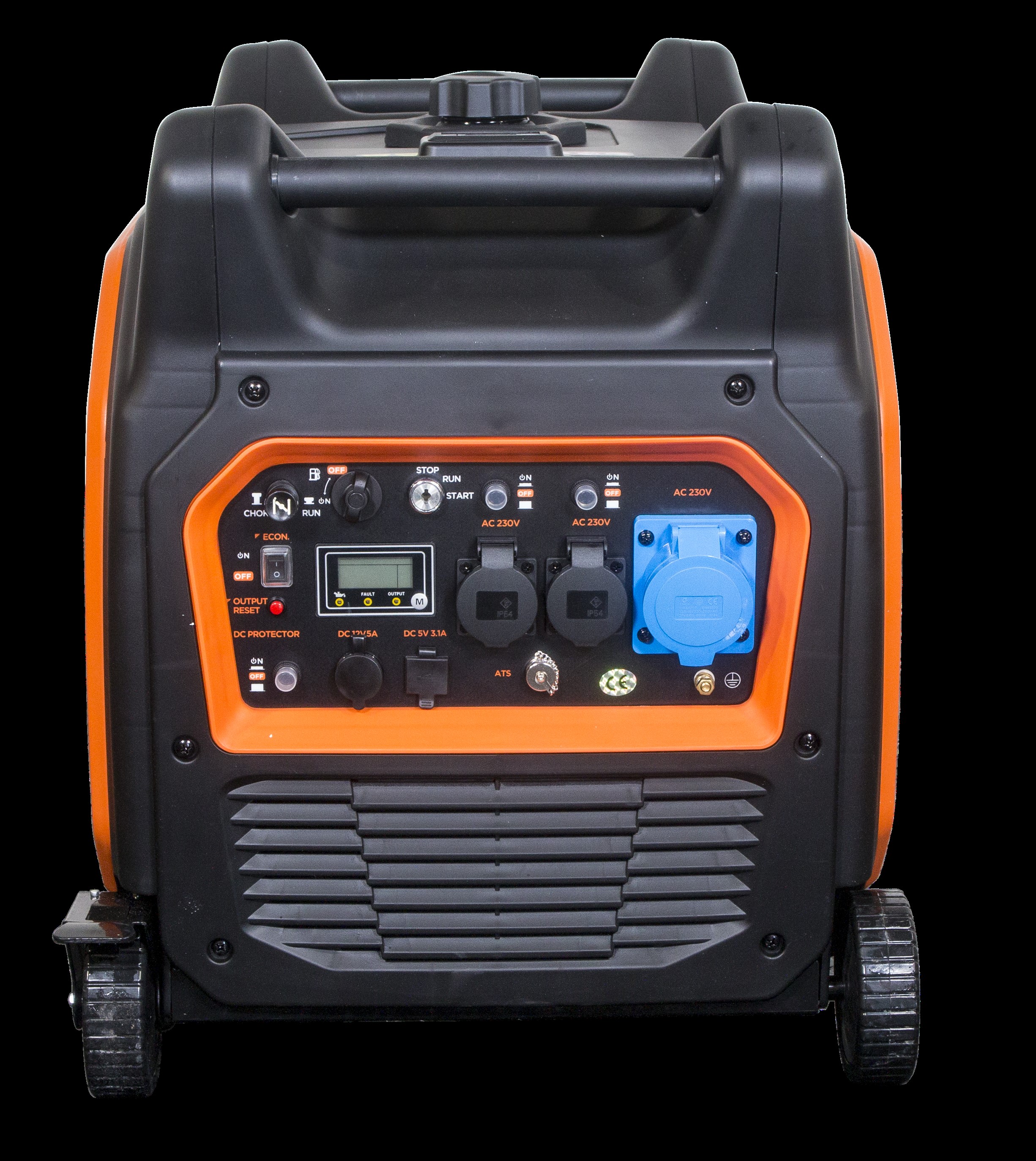

INVERTOR BLACK+DECKER BXGNI6500E Type 1
[BXGNI6500E Type 1]
INVERTOR BLACK+DECKER BXGNI6500E Type 1
Click pentru a mari
Imagini suplimentare
INVERTOR BLACK+DECKER BXGNI6500E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI6500E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI6500E Type 1
Click pentru a mari

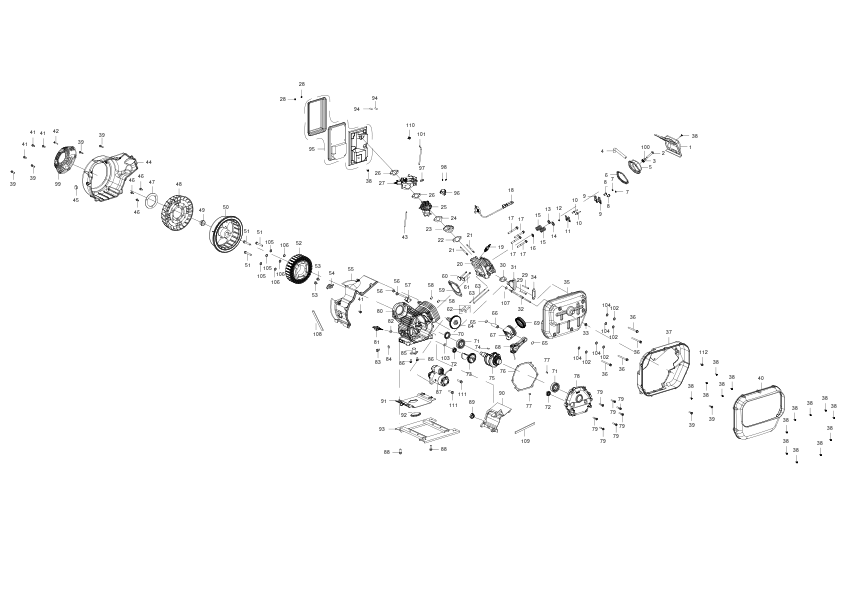

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (SP-6500-G01) 12361 RON
2 1 1 SCREW (SP-XY188F-B10) 3268 RON
3 1 1 NUT (SP-XY188F-B09) 6688 RON
4 1 1 PIPE (SP-XY188F-E10) 4827 RON
5 1 1 COVER (SP-XY188F-B08) 20216 RON
6 1 1 GASKET (SP-XY188F-B07) 6688 RON
7 1 2 NUT (SP-XY188F-D14) 2556 RON
8 1 2 NUT (SP-XY188F-D15) 1630 RON
9 1 2 ARM (SP-XY188F-D13) 3268 RON
10 1 2 BOLT (SP-XY188F-D12) 1630 RON
11 1 1 PLATE (SP-XY188F-D11) 3954 RON
12 1 1 COVER (SP-XY188F-D10) 1630 RON
13 1 1 PLATE (SP-XY188F-D09) 2796 RON
14 1 2 PLATE (SP-XY188F-D08) 2796 RON
15 1 2 SPRING (SP-XY188F-D07) 3268 RON
16 1 2 RING (SP-XY188F-D06) 1630 RON
17 1 4 BOLT (SP-XY188F-B06) 2182 RON
18 1 1 COIL (SP-XY188F-I11) 12361 RON
19 1 1 SPARK PLUG (SP-BUJIA-F7RTC) 9012 RON
19 1 1 SPARK PLUG (SP-BUJIA-F6RTC) 9012 RON
20 1 1 CYLINDER HEAD (3SP-XY188F-B03) 67932 RON
21 1 2 BOLT (SP-XY188F-B04) 5370 RON
22 1 1 GASKET (SP-XY188F-E06) 1772 RON
23 1 1 PAD (SP-XY188F-E05) 9012 RON
24 1 1 GASKET (SP-XY188F-E04) 1772 RON
25 1 1 CARBURETTOR SA (SP-XY188F-F01) 78485 RON
26 1 2 GASKET (SP-XY188F-E02) 1630 RON
27 1 1 CHOKE (SP-XY188F-E03) 44688 RON
28 1 3 BOLT (SP-XY188F-E07) 1630 RON
29 1 2 SCREW (SP-XY188F-B05) 1630 RON
30 1 1 GASKET (SP-6500-H01) 2182 RON
31 1 1 MUFFLER (SP-6500-H02) 30769 RON
32 1 1 STUD (SP-XY188F-A15) 3954 RON
34 1 1 GASKET (SP-6500-H04) 2182 RON
35 1 1 MUFFLER (SP-6500-H05) 139195 RON
36 1 4 BOLT (SP-6500-H06) 1630 RON
37 1 1 COVER (SP-6500-G14) 36994 RON
38 1 16 BOLT (SP-XY188F-E07) 1630 RON
39 1 6 BOLT (SP-6500-G03) 1630 RON
40 1 1 COVER (SP-6500-G15) 32327 RON
41 1 4 BOLT (SP-6500-G04) 1630 RON
44 1 1 FUNNEL (SP-6500-G05) 42426 RON
45 1 1 PLUG (SP-6500-G06) 1630 RON
46 1 3 BOLT (SP-6500-G07) 1630 RON
47 1 1 PLATE (SP-6500-G08) 3954 RON
48 1 1 FAN (SP-6500-G09) 18568 RON
49 1 1 NUT (SP-6500-I01) 4355 RON
50 1 1 ARMATURE (SP-6500-I02) 277356 RON
51 1 3 SCREW (SP-6500-I03) 1630 RON
52 1 1 FIELD (SP-6500-I04) 356963 RON
53 1 2 BOLT (SP-6500-I05) 1630 RON
54 1 1 CLAMP (SP-6500-I06) 1772 RON
55 1 1 GUIDE (SP-6500-G10) 13697 RON
56 1 2 BOLT (SP-6500-I08) 1630 RON
58 1 2 DOWEL (SP-XY188F-B01) 1630 RON
59 1 1 GASKET (SP-XY188F-B02) 6688 RON
60 1 1 VALVE (SP-XY188F-D05) 9012 RON
61 1 1 VALVE (SP-XY188F-D04) 10241 RON
62 1 1 TAP (SP-XY188F-D02) 2556 RON
63 1 2 SHAFT (SP-XY188F-D03) 4827 RON
64 1 1 CAM (SP-XY188F-D01) 27287 RON
65 1 2 CLIP (SP-XY188F-C05) 2796 RON
66 1 1 PIN (SP-XY188F-C06) 4827 RON
67 1 1 PISTON (SP-XY188F-C04) 24962 RON
68 1 1 CONNECTING ROD (SP-XY188F-C03) 24962 RON
69 1 1 RING (SP-XY188F-C07) 18568 RON
70 1 2 SEAL (SP-XY188F-A08) 3268 RON
71 1 2 BEARING (SP-XY188F-A12) 15469 RON
72 1 2 BEARING (SP-XY188F-A11) 6688 RON
73 1 1 SHAFT (SP-XY188F-C01) 21676 RON
74 1 1 WOODRUFF KEY (SP-XY188F-C08) 1630 RON
75 1 1 CONNECTING ROD (SP-XY188F-C02) 99395 RON
76 1 1 GASKET (SP-XY188F-A09) 4827 RON
77 1 2 DOWEL (SP-XY188F-A10) 1630 RON
78 1 1 CAP (SP-XY188F-A13) 44688 RON
79 1 7 BOLT (SP-XY188F-A14) 1630 RON
80 1 1 CRANKCASE (SP-XY188F-A01) 148269 RON
81 1 1 DIPSTICK (SP-XY188F-A02) 2556 RON
82 1 1 O RING (SP-XY188F-A03) 1772 RON
83 1 1 BOLT (SP-XY188F-A04) 6688 RON
84 1 1 WASHER (SP-XY188F-A05) 1630 RON
85 1 1 SENSOR (SP-XY188F-A06) 12361 RON
86 1 2 SCREW (SP-XY188F-A07) 1630 RON
87 1 1 MOTOR (SP-XY188F-J01) 139195 RON
88 1 2 BOLT (SP-6500-G17) 1630 RON
89 1 1 BUSHING (SP-6500-I07) 2556 RON
90 1 1 GUIDE (SP-6500-G11) 12361 RON
91 1 1 GUIDE (SP-6500-G12) 11337 RON
92 1 1 PLUG (SP-6500-G13) 2556 RON
93 1 1 TRAY (SP-6500-G16) 16689 RON
94 1 2 BUSHING (SP-XY188F-E11) 1630 RON
95 1 1 FILTER (SP-XY188F-E01) 30769 RON
96 1 1 REGULATOR (SP-6500-M05) 13697 RON
97 1 1 BLOCK (SP-XY188F-E12) 4355 RON
98 1 2 SCREW (SP-6500-M06) 1318 RON
100 1 1 SCREW (SP-XY188F-B10) 3268 RON
101 1 1 PIPE (SP-XY188F-E10) 4827 RON
110 1 1 CLAMP (SP-6500-I06) 1772 RON
111 1 2 BOLT (SP-XY188F-J02) 3954 RON
112 1 1 BOLT (SP-6500-G04) 1630 RON
201 1 1 CAP (SP-6500-K01) 13697 RON
202 1 1 SEAL (SP-6500-K03) 9012 RON
203 1 1 WINDOW (SP-6500-K09) 1630 RON
204 1 1 SEAL (SP-6500-K08) 2182 RON
205 1 1 COVER (SP-6500-L14) 12361 RON
206 1 1 FILTER (SP-6500-K02) 5370 RON
207 1 1 TANK (SP-6500-K07) 67932 RON
208 1 4 SCREW (SP-6500-K04) 1630 RON
209 1 4 WASHER (SP-6500-K05) 1630 RON
210 1 4 PAD (SP-6500-K06) 6688 RON
211 1 2 SCREW (SP-6500-K10) 1630 RON
212 1 1 GAUGE (SP-6500-K11) 6688 RON
213 1 1 TUBE (SP-6500-K14) 10241 RON
214 1 2 CLAMP (SP-6500-K13) 1630 RON
215 1 1 VALVE (SP-6500-K12) 15469 RON
217 1 4 NUT (SP-6500-L34) 1630 RON
218 1 1 ENGINE (IT-XY188F) 468096 RON
219 1 1 RELAY (SP-6500-M13) 6688 RON
220 1 3 WASHER (SP-6500-O33) 1630 RON
221 1 4 BOLT (SP-6500-L21) 1630 RON
222 1 4 BOLT (SP-6500-L30) 1630 RON
223 1 4 PAD (SP-6500-L31) 741 RON
224 1 1 BATTERY (SP-BAT-18AH-XY) 161583 RON
225 1 1 FITTING (SP-6500-M07) 4355 RON
226 1 1 PAD (SP-6500-M09) 3268 RON
227 1 4 SCREW (SP-6500-L16) 1630 RON
228 1 1 COVER (SP-6500-L23-BD) 21676 RON
230 1 4 BOLT (SP-6500-L24) 1630 RON
231 1 20 BOLT (SP-6500-L38) 1630 RON
232 1 1 COVER (SP-6500-L26) 23244 RON
233 1 12 CLIP (SP-6500-L28) 1630 RON
234 1 4 BUSHING (SP-6500-L25) 1933 RON
235 1 15 CLIP (SP-6500-L29) 1630 RON
237 1 4 BOLT (SP-6500-L11) 1630 RON
238 1 1 FRAME (SP-6500-L12) 25728 RON
239 1 4 BOLT (SP-6500-L13) 1630 RON
240 1 2 TUBE (SP-6500-L08) 6688 RON
241 1 4 RUBBER (SP-6500-L09) 2556 RON
242 1 2 HANDLE (SP-6500-L07) 4827 RON
243 1 6 CLIP (SP-6500-L27) 1630 RON
244 1 2 HOUSING (SP-6500-L10) 10241 RON
245 1 4 BOLT (SP-6500-L17) 1630 RON
246 1 3 WASHER (SP-6500-L18) 1630 RON
247 1 4 WHEEL (SP-6500-L19) 18568 RON
248 1 1 BRAKE (SP-6500-L20) 23244 RON
249 1 1 CHASSIS (SP-6500-L32) 188451 RON
250 1 1 SPONGE (SP-6500-L04) 3954 RON
251 1 1 SEAL (SP-6500-L05) 9012 RON
252 1 10 SCREW (SP-6500-L06) 1630 RON
253 1 1 COVER (SP-6500-L03) 23244 RON
254 1 2 COVER (SP-6500-L02) 12361 RON
255 1 12 SCREW (SP-6500-L01) 1630 RON
256 1 1 FRAME (SP-6500-L15) 27287 RON
257 1 1 FUNNEL (SP-6500-L33) 3954 RON
258 1 1 INVERTER (SP-6500-N01) 462423 RON
259 1 5 BOLT (SP-6500-L39) 1630 RON
260 1 1 HOLDER (SP-6500-L36) 2556 RON
261 1 2 WASHER (SP-6500-O11) 1630 RON
262 1 1 NUT (SP-6500-O24) 1630 RON
263 1 1 REGULATOR (SP-6500-M11) 33797 RON
264 1 1 PLATE (SP-6500-L35) 6688 RON
265 1 2 SCREW (SP-6500-K16) 1630 RON
267 1 1 VALVE (SP-6500-K12) 15469 RON
270 1 1 THROTTLE CONTROL (SP-6500-O15) 5370 RON
271 1 5 SCREW (SP-6500-O01) 1630 RON
272 1 1 BOX (SP-6500-O02) 9012 RON
273 1 1 MODULE (SP-6500-O30) 85494 RON
274 1 1 CONTROLLER (SP-6500-O29) 23244 RON
275 1 1 SCREW (SP-6500-O28) 1630 RON
276 1 2 OVERLOAD PROTECTOR (SP-PC-OVER-16A) 741 RON
277 1 1 STARTER (SP-6500-O04) 21676 RON
278 1 1 SCREW (SP-6500-O22) 1772 RON
279 1 1 RECTIFIER (SP-PC-RECTI-3502) 20216 RON
280 1 3 NUT (SP-6500-O03) 1630 RON
281 1 1 DISPLAY (SP-6500-O06) 63720 RON
282 1 1 OVERLOAD PROTECTOR (SP-PC-OVER-6A) 12361 RON
283 1 4 NUT (SP-6500-O31) 1630 RON
284 1 5 SCREW (SP-6500-O10) 1630 RON
285 1 1 SCREW (SP-6500-O32) 1630 RON
286 1 1 PANEL (SP-6500-O12-BD) 21676 RON
287 1 1 KNOB (SP-6500-K18) 1630 RON
289 1 1 CAP (SP-6500-K20) 1630 RON
290 1 1 SWITCH (SP-6500-O16) 3954 RON
291 1 1 SWITCH (SP-PC-SWITCH-C) 4355 RON
292 1 1 CAP (1004786-61) 2556 RON
293 1 1 SOCKET (SP-6500-O18) 6688 RON
294 1 3 CAP (SP-PC-OVER-PROTEC) 3268 RON
295 1 1 SOCKET (SP-6500-O19) 10241 RON
297 1 1 SOCKET (SP-6500-O35) 12361 RON
298 1 8 SCREW (SP-6500-M04) 1630 RON
299 1 2 NUT (SP-6500-O27) 1630 RON
300 1 1 WASHER (SP-6500-O25) 1630 RON
301 1 1 WASHER (SP-6500-O26) 1630 RON
302 1 1 SOCKET (1004786-62) 33797 RON
303 1 4 SCREW (SP-6500-O23) 1772 RON
304 1 1 BOX (SP-6500-O02) 9012 RON
