Top » Piese de schimb » PIESE BLACK & DECKER » BXGNI4000E Type 1

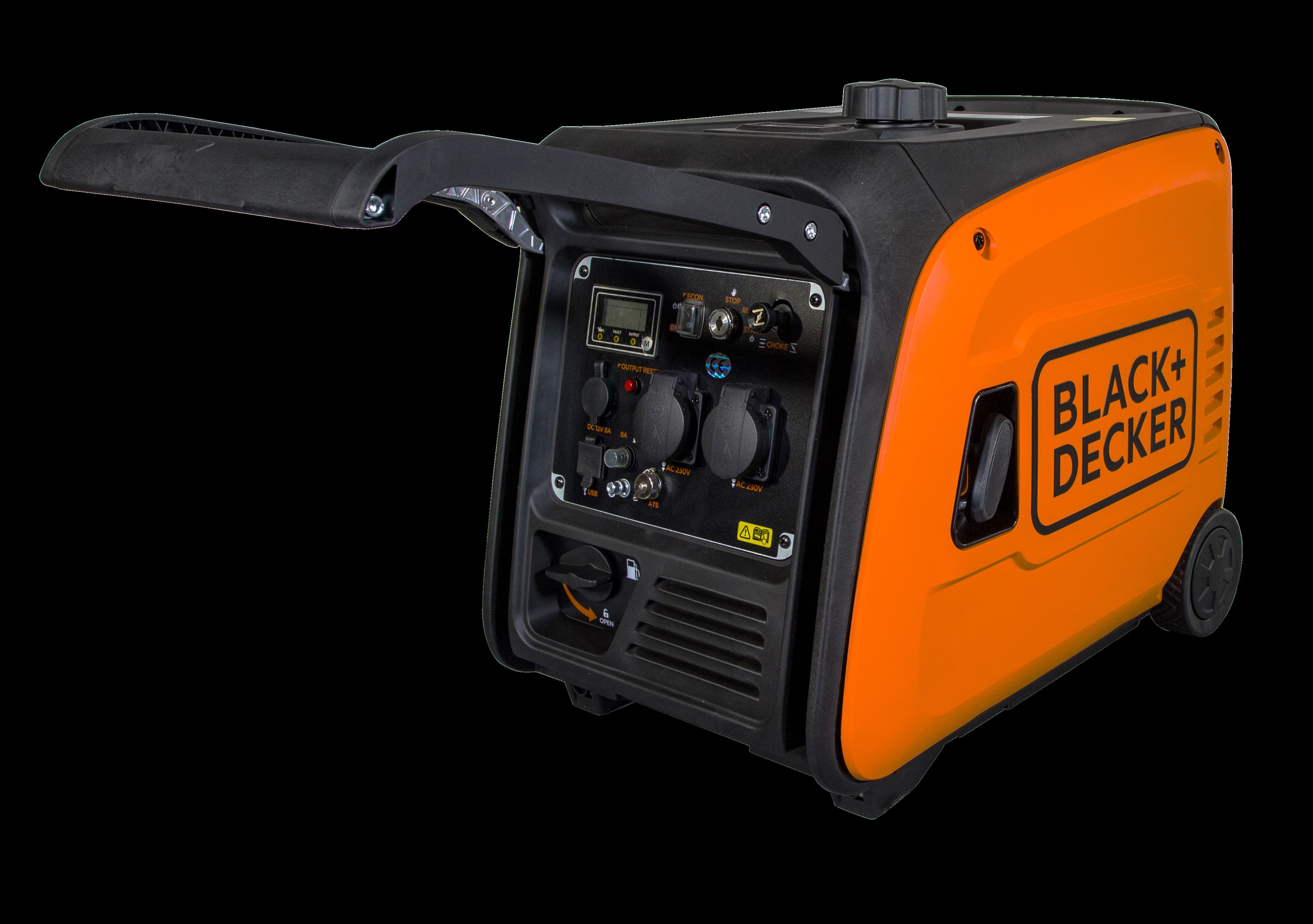

INVERTOR BLACK+DECKER BXGNI4000E Type 1
[BXGNI4000E Type 1]
INVERTOR BLACK+DECKER BXGNI4000E Type 1
Click pentru a mari
Imagini suplimentare
INVERTOR BLACK+DECKER BXGNI4000E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI4000E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI4000E Type 1
Click pentru a mari

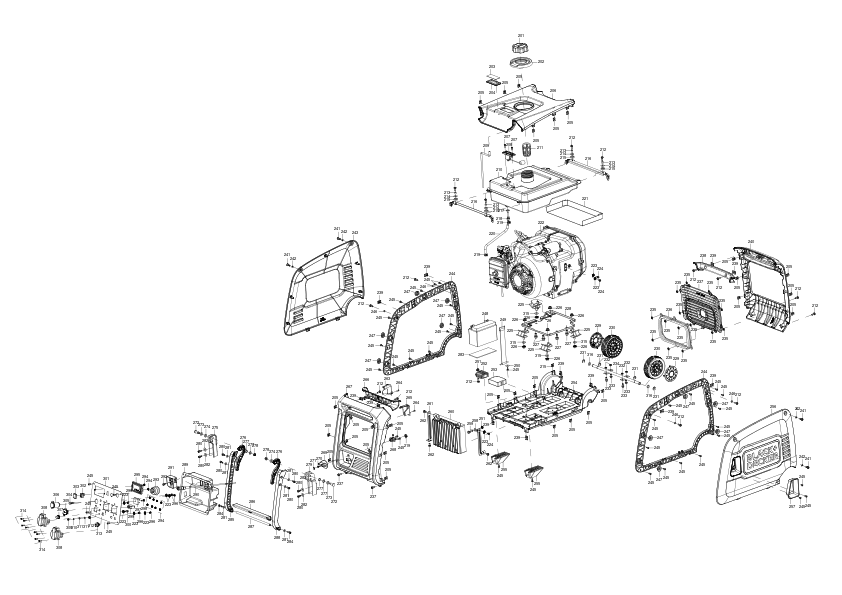

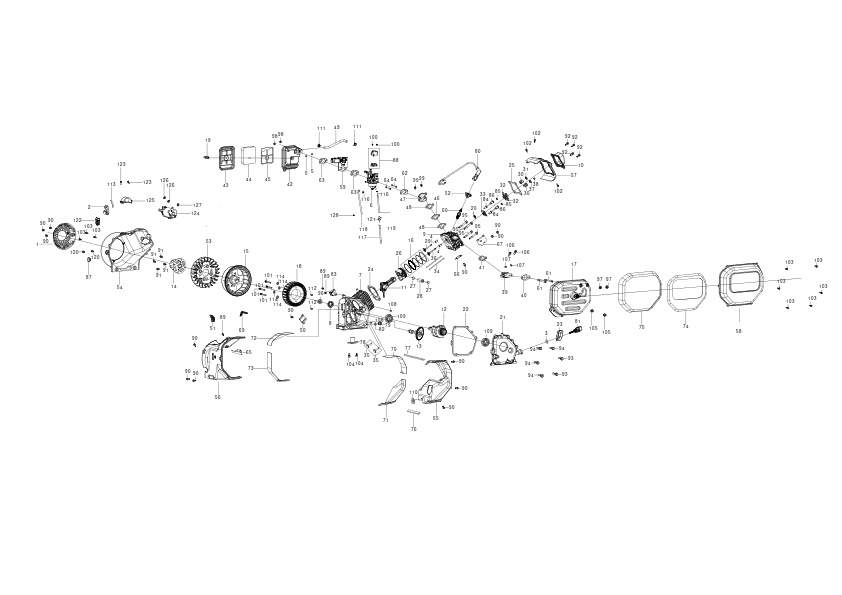

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 STARTER ROPE (SP-XY170F1A-G02) 49827 RON
3 1 1 O RING (SP-XY170F1A-A08) 1630 RON
4 1 2 PIN (SP-XY170F1A-B01) 1630 RON
5 1 2 BUSHING (SP-XY170F1A-E08) 161583 RON
6 1 1 CARBURETTOR SA (SP-XY170F1A-F01) 48037 RON
7 1 1 CRANKCASE (SP-XY170F1A-A02) 3954 RON
8 1 1 SEAL (SP-XY170F1A-A01) 11337 RON
9 1 1 CYLINDER HEAD (SP-XY170F1A-B03) 28836 RON
10 1 1 COVER (SP-XY170F1A-B06) 24962 RON
11 1 1 CONNECTING ROD (SP-XY170F1A-C03) 21676 RON
12 1 1 CONNECTING ROD (SP-XY170F1A-C01) 46247 RON
13 1 1 CAM (SP-XY170F1A-D14) 12361 RON
14 1 1 HUB (SP-XY170F1A-G11) 99395 RON
15 1 1 ROTOR (SP-XY170F1A-I02) 1630 RON
16 1 1 PISTON RING (SP-XY170F1A-C07) 12361 RON
17 1 1 MUFFLER (SP-XY170F1A-H06) 44688 RON
18 1 1 FIELD (SP-XY170F1A-I04) 125542 RON
21 1 1 CAP (SP-XY170F1A-A12) 2556 RON
22 1 1 GASKET (SP-XY170F1A-A03) 2796 RON
23 1 1 SEAL (SP-XY170F1A-G22) 3954 RON
24 1 1 GASKET (SP-XY170F1A-B02) 4355 RON
25 1 1 GASKET (SP-XY170F1A-B05) 13697 RON
26 1 1 PISTON (4SP-XY170F1A-C04) 1630 RON
27 1 2 CLIP (SP-XY170F1A-C06) 3268 RON
28 1 1 PIN (SP-XY170F1A-C05) 4827 RON
29 1 1 INTAKE VALVE (SP-XY170F1A-D01) 1630 RON
30 1 2 VALVE SPRING (SP-XY170F1A-D03) 1630 RON
31 1 1 PLATE (SP-XY170F1A-D04) 1630 RON
32 1 1 ROCKER (SP-XY170F1A-D09) 1630 RON
33 1 1 PLATE (SP-XY170F1A-D07) 1630 RON
34 1 2 SHAFT (SP-XY170F1A-D12) 1630 RON
35 1 1 TAP (SP-XY170F1A-D13) 4827 RON
36 1 1 VALVE (SP-XY170F1A-D02) 1630 RON
37 1 1 PLATE (SP-XY170F1A-D05) 1630 RON
38 1 1 COVER (SP-XY170F1A-D06) 24962 RON
39 1 1 MUFFLER (SP-XY170F1A-H02) 1630 RON
40 1 1 GASKET (SP-XY170F1A-H03) 1630 RON
41 1 1 GASKET (SP-XY170F1A-H01) 2556 RON
42 1 1 FILTER (SP-XY170F1A-E06) 13697 RON
43 1 1 COVER (SP-XY170F1A-E02) 6688 RON
44 1 1 FOAM (SP-XY170F1A-E03) 741 RON
45 1 1 BRACKET (SP-XY170F1A-E04) 1630 RON
46 1 1 PAD (SP-XY170F1A-E14) 16689 RON
47 1 1 GASKET (SP-XY170F1A-E12) 1630 RON
48 1 2 GASKET (SP-XY170F1A-E15) 741 RON
49 1 1 PIPE (SP-XY170F1A-E17) 1630 RON
50 1 1 CLAMP (SP-XY170F1A-I07) 1630 RON
51 1 1 BUSHING (SP-XY170F1A-I05) 1630 RON
52 1 1 SEAL (SP-XY170F1A-G08) 12361 RON
53 1 1 FAN (SP-XY170F1A-G12) 15469 RON
54 1 1 FUNNEL (SP-XY170F1A-G06) 13697 RON
55 1 1 GUIDE (SP-XY170F1A-G16) 13697 RON
56 1 1 GUIDE (SP-XY170F1A-G14) 10241 RON
57 1 1 COVER (SP-XY170F1A-G09) 12361 RON
58 1 1 COVER (SP-XY170F1A-G21) 33797 RON
59 1 1 CHOKE (SP-XY170F1A-E18) 1630 RON
60 1 1 SPARK PLUG (SP-BUJIA-A7RTC) 9012 RON
61 1 2 BOLT (SP-XY170F1A-H04) 1630 RON
62 1 1 GASKET (SP-XY170F1A-E10) 1630 RON
63 1 2 GASKET (SP-XY170F1A-E07) 1630 RON
64 1 2 BOLT (SP-XY170F1A-E09) 1933 RON
65 1 1 DEFLECTOR (SP-XY170F1A-G17) 1630 RON
66 1 1 DEFLECTOR (SP-XY170F1A-G18) 1630 RON
67 1 1 DEFLECTOR (SP-XY170F1A-G19) 1630 RON
78 1 1 SENSOR (SP-XY170F1A-A09) 11337 RON
79 1 1 BOLT (SP-XY170F1A-A05) 12361 RON
80 1 1 COIL (SP-XY170F1A-I10) 1630 RON
81 1 1 DIPSTICK (SP-XY170F1A-A07) 2556 RON
82 1 1 WASHER (SP-XY170F1A-A04) 6688 RON
83 1 1 TRIGGER (SP-XY170F1A-I13) 1772 RON
84 1 2 BOLT (SP-XY170F1A-D08) 1630 RON
85 1 2 NUT (SP-XY170F1A-D10) 1630 RON
86 1 2 NUT (SP-XY170F1A-D11) 1630 RON
87 1 1 PLUG (SP-XY170F1A-G07) 12361 RON
88 1 1 MOTOR (SP-39I-N02) 1772 RON
89 1 3 BOLT (SP-XY170F1A-I12) 1772 RON
90 1 13 BOLT (SP-XY170F1A-I06) 1772 RON
91 1 4 BOLT (SP-XY170F1A-A10) 1772 RON
92 1 4 BOLT (SP-XY170F1A-B07) 1772 RON
93 1 2 BOLT (SP-XY170F1A-A13) 1772 RON
94 1 4 BOLT (SP-XY170F1A-A14) 1772 RON
95 1 4 BOLT (SP-XY170F1A-B04) 3954 RON
96 1 1 BOLT (SP-XY170F1A-I01) 1630 RON
97 1 2 BOLT (SP-XY170F1A-E05) 1630 RON
98 1 2 BOLT (SP-XY170F1A-H07) 1772 RON
101 1 4 BOLT (SP-XY170F1A-I03) 1772 RON
102 1 3 SCREW (SP-XY170F1A-G03) 1630 RON
103 1 9 SCREW (SP-XY170F1A-G05) 1772 RON
108 1 2 BOLT (SP-XY170F1A-A06) 741 RON
109 1 2 BEARING (SP-XY170F1A-A11) 1630 RON
110 1 1 OIL (SP-XY170F1A-G13) 1630 RON
111 1 2 CLAMP (SP-XY170F1A-E16) 1630 RON
117 1 1 TUBE (SP-39I-K16) 4827 RON
118 1 1 TUBE (SP-39I-L56) 1772 RON
119 1 1 TUBE (SP-39I-K15) 1772 RON
122 1 1 PANEL (SP-39I-L16BD) 1772 RON
123 1 2 SCREW (SP-XY170F1A-G24) 2556 RON
124 1 1 MOTOR (SP-XY170F1A-J03) 139195 RON
125 1 1 MOTOR COVER (SP-XY170F1A-G04) 1772 RON
126 1 2 SCREW (SP-XY170F1A-J01) 1772 RON
201 1 1 CAP SA (SP-39I-K01) 5370 RON
202 1 1 SEAL (SP-39I-K03) 1630 RON
203 1 1 WINDOW (SP-39I-K09) 1933 RON
204 1 1 SEAL (SP-39I-K08) 1630 RON
205 1 29 NUT (SP-39I-L09) 24962 RON
206 1 1 COVER (SP-39I-L07) 1772 RON
207 1 2 SCREW (SP-39I-K10) 4827 RON
208 1 1 GAUGE (SP-39I-K11) 5370 RON
209 1 1 TUBE (SP-39I-L56) 1772 RON
210 1 1 FUEL TANK (SP-39I-K12) 1772 RON
211 1 1 FILTER (SP-39I-K02) 4827 RON
212 1 14 SCREW (SP-39I-K04) 1630 RON
215 1 5 PAD (SP-39I-K06) 6688 RON
218 1 1 OUTLET (SP-39I-K13) 1630 RON
219 1 3 CLAMP (SP-39I-K14) 3268 RON
224 1 3 SCREW (SP-XY170F1A-G23) 4355 RON
225 1 4 MOUNT (SP-39I-L23) 1630 RON
226 1 7 BOLT (SP-39I-L21) 1772 RON
227 1 3 BOLT (SP-39I-L24) 15469 RON
228 1 1 PLATE (SP-39I-L22) 1933 RON
229 1 2 CAP (SP-39I-L30BD) 9012 RON
230 1 2 WHEEL REAR (SP-39I-L27) 1630 RON
231 1 4 CIRCLIP (SP-39I-L29) 1630 RON
232 1 4 NUT (SP-39I-L25) 1772 RON
233 1 4 BOLT (SP-39I-L32) 15469 RON
234 1 1 AXLE (SP-39I-L28) 1630 RON
235 1 14 CLAMP (SP-39I-L05) 6688 RON
236 1 1 SEAL (SP-39I-L06) 33797 RON
237 1 3 COVER (SP-39I-L57) 13697 RON
238 1 1 COVER (SP-39I-L03) 1630 RON
239 1 12 NUT (SP-39I-L02) 23244 RON
240 1 1 COVER (SP-39I-L01) 1772 RON
241 1 4 SCREW (SP-39I-L13) 1630 RON
242 1 4 WASHER (SP-39I-L11) 24962 RON
243 1 1 COVER RH (SP-39I-L19BD) 25728 RON
244 1 2 FRAME (SP-39I-L10) 1772 RON
245 1 37 SCREW (SP-39I-L18) 1630 RON
246 1 4 BUSH (SP-39I-L58) 1630 RON
247 1 10 RUBBER (SP-39I-L08) 3268 RON
248 1 1 BATTERY (SP-BAT-6.5) 139195 RON
249 1 1 FITTING (SP-39I-N08) 1630 RON
250 1 1 WASHER (SP-39I-N09) 1630 RON
251 1 2 BOLT (SP-39I-N05) 85494 RON
252 1 1 REGULATOR (SP-39I-N06) 36994 RON
253 1 1 MODULE (SP-39I-N12) 46247 RON
254 1 1 CHASSIS (SP-39I-L26) 6688 RON
255 1 2 DAMPER (SP-39I-L31) 23244 RON
256 1 1 COVER LH (SP-39I-L12BD) 9012 RON
257 1 1 PANEL (SP-39I-L16BD) 1772 RON
258 1 1 HOLDER LH (SP-39I-L35) 1772 RON
259 1 1 BOLT (SP-39I-L36) 2556 RON
260 1 1 INVERTER (SP-39I-M01) 356963 RON
261 1 1 HOLDER RH (SP-39I-L33) 1772 RON
262 1 3 SCREW (SP-39I-L60) 5370 RON
263 1 1 CAP (SP-39I-L42) 1772 RON
264 1 2 SCREW (SP-39I-L63) 5370 RON
265 1 1 CAP (SP-39I-L46) 33797 RON
266 1 1 HANDLE (SP-39I-L45) 23244 RON
267 1 1 COVER (SP-39I-L48) 3268 RON
268 1 1 VALVE (SP-39I-K18) 3954 RON
269 1 1 KNOB (SP-39I-K19) 1772 RON
270 1 1 SCREW (SP-39I-K20) 1630 RON
271 1 1 CAP (SP-39I-K21) 1772 RON
272 1 1 BOLT (SP-39I-L37) 1630 RON
273 1 2 WASHER (SP-39I-L38) 1630 RON
274 1 2 BUSHING (SP-39I-L40) 6688 RON
275 1 1 BRACKET RH (SP-39I-L41) 6688 RON
276 1 2 ARM (SP-39I-L44) 1630 RON
277 1 4 WASHER (SP-39I-L39) 1630 RON
278 1 2 NUT (SP-39I-L43) 6688 RON
279 1 1 BRACKET LH (SP-39I-L47) 1772 RON
280 1 8 SCREW (SP-XY170F1A-J02) 1318 RON
281 1 6 WASHER (SP-39I-L62) 1630 RON
284 1 2 SCREW (SP-39I-L52) 15469 RON
285 1 1 ARM (SP-39I-L49) 9012 RON
286 1 1 HANDLE (SP-39I-L54) 5370 RON
287 1 1 SHAFT (SP-39I-L53) 15469 RON
288 1 1 ARM (SP-39I-L50) 24962 RON
289 1 1 BOX (SP-39I-O01) 3954 RON
290 1 1 THROTTLE CONTROL (SP-39I-O28) 1630 RON
291 1 1 CONTROLLER (SP-39I-O02) 24962 RON
292 1 1 SCREW (SP-39I-O03) 4355 RON
293 1 1 SWITCH (SP-PC-SWITCH-C) 4355 RON
294 1 3 NUT (SP-39I-O04) 1772 RON
295 1 1 DISPLAY (SP-39I-O05) 1772 RON
296 1 4 SCREW (SP-39I-O11) 20216 RON
297 1 1 RECTIFIER (SP-PC-RECTI-3502) 20216 RON
298 1 1 SCREW (SP-39I-O06) 741 RON
299 1 1 OVERLOAD PROTECTOR (SP-PC-OVER-10A) 1318 RON
300 1 1 BOLT (SP-39I-O09) 18568 RON
301 1 1 PANEL (SP-39I-O12) 2796 RON
302 1 1 SWITCH (SP-39I-O27) 46247 RON
303 1 1 CAP (1004786-64) 3268 RON
304 1 1 RESET TRIG (SP-39I-O15) 10241 RON
305 1 1 SOCKET (SP-39I-O14) 6688 RON
306 1 1 SOCKET (SP-39I-O13) 3268 RON
307 1 1 CAP (SP-PC-OVER-PROTEC) 3268 RON
308 1 1 SOCKET (1004786-65) 1630 RON
309 1 1 NUT (SP-39I-O20) 1630 RON
310 1 1 WASHER (SP-39I-O19) 1630 RON
311 1 2 WASHER (SP-39I-O18) 1630 RON
313 1 1 WIRE (SP-39I-O29) 1772 RON
314 1 2 SCREW (SP-39I-O21) 1630 RON
