Top » Piese de schimb » PIESE BLACK & DECKER » BXGNI2200E Type 1

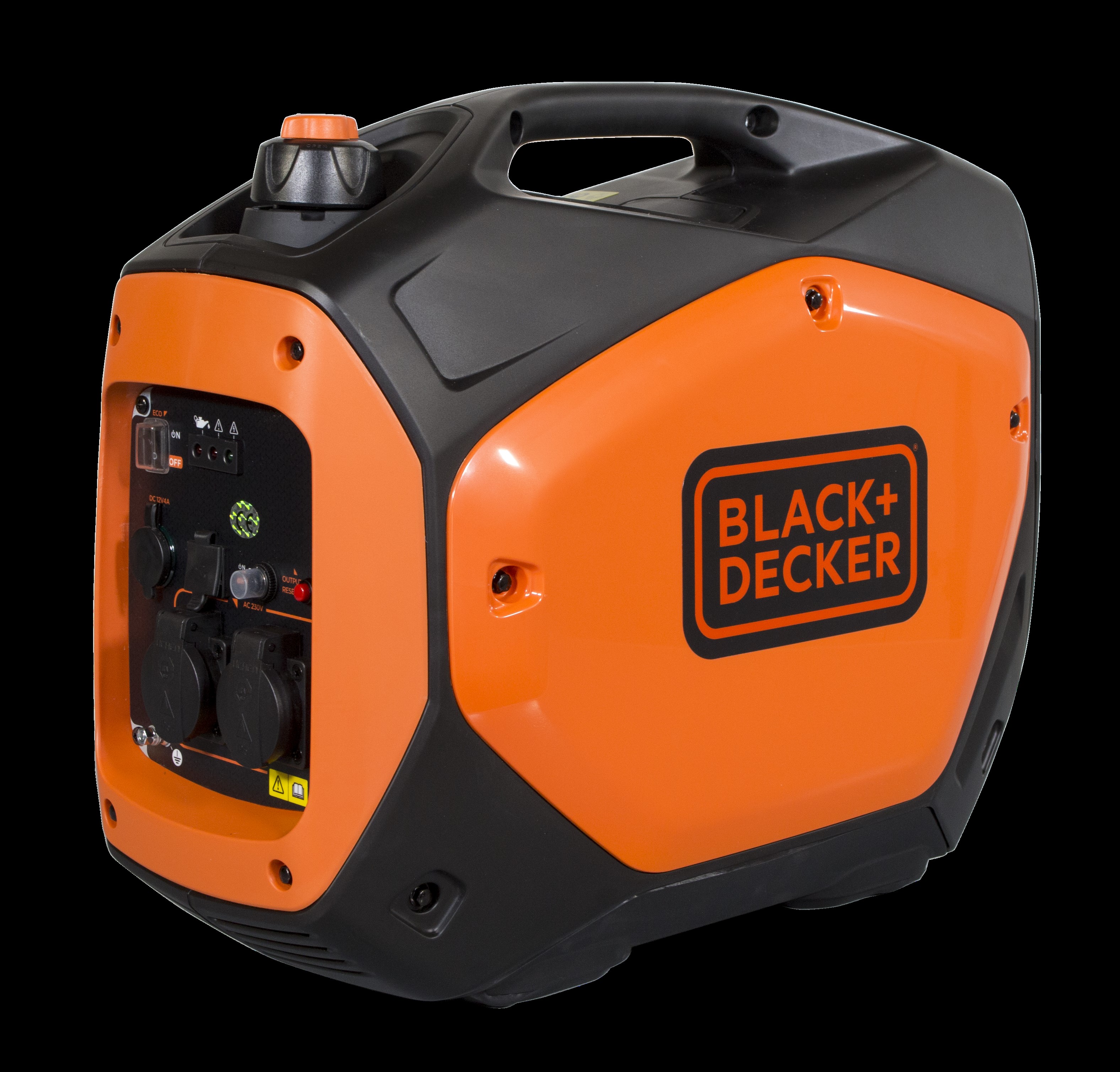

INVERTOR BLACK+DECKER BXGNI2200E Type 1
[BXGNI2200E Type 1]
INVERTOR BLACK+DECKER BXGNI2200E Type 1
Click pentru a mari
Imagini suplimentare
INVERTOR BLACK+DECKER BXGNI2200E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI2200E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI2200E Type 1
Click pentru a mari
INVERTOR BLACK+DECKER BXGNI2200E Type 1
Click pentru a mari

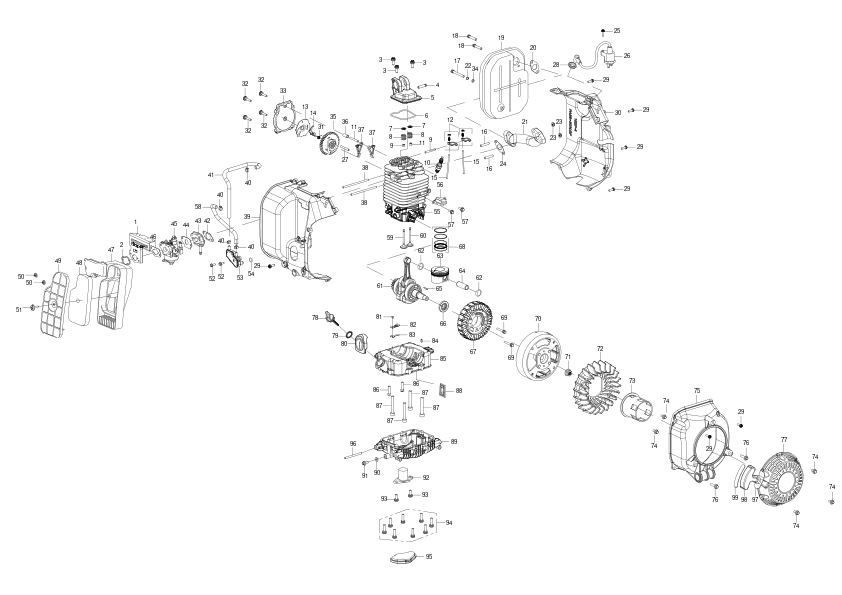

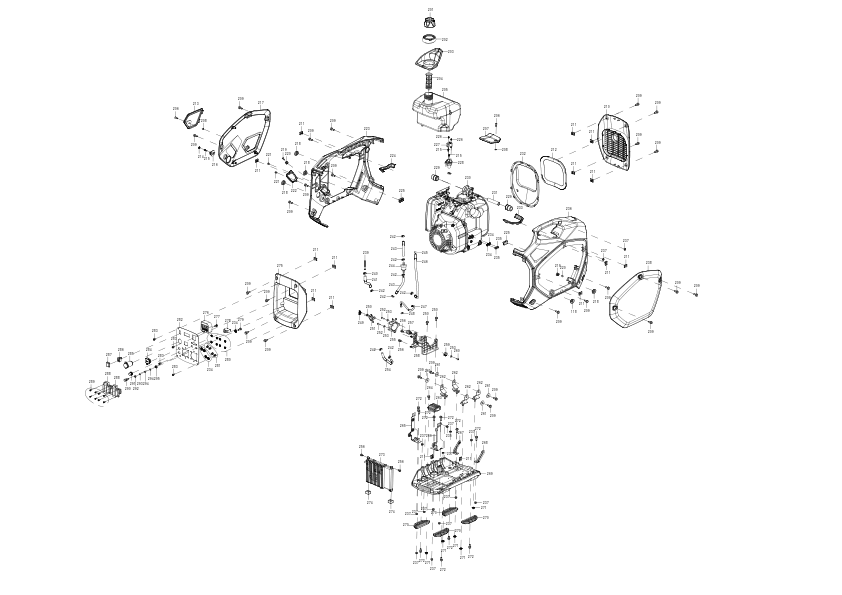

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CHOKE (SP-XY156F-E05) 24962 RON
3 1 3 BOLT (SP-XY156F-A01) 1772 RON
4 1 1 NOZZLE (SP-XY156F-A02) 3954 RON
5 1 1 CYLINDER HEAD (SP-XY156F-A03) 28836 RON
6 1 1 SEAL (SP-XY156F-A04) 3268 RON
7 1 2 SEAT (SP-XY156F-C08) 3954 RON
8 1 2 SPRING (SP-XY156F-C09) 2796 RON
9 1 2 SEAL (SP-XY156F-A10) 1772 RON
10 1 1 SPARK PLUG (SP-BUJIA-A5RTC) 9012 RON
11 1 1 PIN (SP-XY156F-C03) 1772 RON
12 1 1 ROCKER (SP-XY156F-C07) 10241 RON
15 1 1 TAP (SP-XY156F-C01) 5370 RON
16 1 2 SEAL (SP-XY156F-A10) 1772 RON
17 1 1 BOLT (SP-22I-H02) 1772 RON
18 1 2 BOLT (SP-22I-H01) 1772 RON
19 1 1 MUFFLER (SP-22I-H03) 10889 RON
20 1 1 GASKET (SP-22I-H04) 3268 RON
21 1 1 PIPE (SP-22I-H06) 24962 RON
22 1 1 SEAL (SP-22I-H07) 1630 RON
23 1 2 NUT (SP-22I-H08) 1630 RON
24 1 1 GASKET (SP-22I-H05) 3268 RON
25 1 1 SCREW (SP-22I-I08) 1772 RON
26 1 1 COIL (SP-22I-I09) 38463 RON
27 1 1 PIN (SP-XY156F-C06) 3268 RON
28 1 1 SEAL (SP-22I-I11) 1772 RON
29 1 7 SCREW (SP-XY156F-G04) 1772 RON
30 1 1 GUIDE (SP-XY156F-G03) 15469 RON
32 1 4 BOLT (SP-XY156F-A06) 1772 RON
33 1 1 COVER (SP-XY156F-A07) 30769 RON
34 1 1 SEAL (SP-22I-H07) 1630 RON
35 1 1 CAM (SP-XY156F-C05) 38463 RON
36 1 1 BUSH (SP-XY156F-C04) 2796 RON
37 1 2 ROCKER (SP-XY156F-C02) 741 RON
38 1 2 BOLT (SP-XY156F-A08) 1772 RON
39 1 1 GUIDE (SP-XY156F-G02) 15469 RON
40 1 4 CLAMP (SP-XY156F-D03) 1630 RON
41 1 1 TUBE (SP-XY156F-D01) 6688 RON
42 1 1 GASKET (SP-XY156F-E09) 1933 RON
43 1 1 PAD (SP-XY156F-E08) 5370 RON
44 1 1 GASKET (SP-XY156F-E07) 2556 RON
45 1 1 CARBURETTOR SA (SP-XY156F-F01) 85494 RON
46 1 1 GASKET (SP-XY156F-E06) 2182 RON
47 1 1 GASKET (SP-XY156F-E03) 30769 RON
48 1 1 FILTER (SP-XY156F-E12) 10241 RON
50 1 2 BOLT (SP-XY156F-E01) 1630 RON
51 1 1 SCREW (SP-XY156F-E10) 1772 RON
52 1 2 BOLT (SP-XY156F-D04) 1772 RON
53 1 1 VALVE (SP-XY156F-D05) 9012 RON
54 1 1 O RING (SP-XY156F-D06) 1772 RON
55 1 1 CRANKCASE (SP-XY156F-A09) 85494 RON
56 1 1 TRIGGER (SP-22I-I06) 10241 RON
57 1 2 BOLT (SP-22I-I07) 1772 RON
58 1 1 TUBE (SP-XY156F-D02) 3954 RON
59 1 1 INTAKE VALVE (SP-XY156F-C10) 9012 RON
60 1 1 VALVE (SP-XY156F-C11) 12361 RON
61 1 1 ROD SA (SP-XY156F-B04) 96047 RON
62 1 2 CLIP (SP-XY156F-B01) 1630 RON
63 1 1 PISTON (SP-XY156F-B02) 40734 RON
64 1 1 PIN (SP-XY156F-B03) 3954 RON
65 1 1 WOODRUFF KEY (SP-XY156F-B05) 1630 RON
66 1 1 SEAL (SP-XY156F-A21) 9012 RON
67 1 1 FIELD (SP-22I-I01) 176482 RON
68 1 1 PISTON RING (SP-XY156F-B06) 21676 RON
69 1 2 BOLT (SP-22I-I03) 1772 RON
70 1 1 ARMATURE (SP-22I-I04) 113822 RON
71 1 1 NUT (SP-22I-I05) 1933 RON
72 1 1 FAN (SP-XY156F-G06) 11337 RON
73 1 1 HUB (SP-XY156F-G07) 12361 RON
74 1 5 SCREW (SP-XY156F-G13) 1772 RON
75 1 1 FUNNEL (SP-XY156F-G09) 28836 RON
76 1 2 BOLT (SP-XY156F-G11) 1772 RON
77 1 1 STARTER ROPE (SP-XY156F-G12) 46247 RON
78 1 1 GAUGE (SP-XY156F-A16) 3268 RON
79 1 1 O RING (SP-XY156F-A17) 1630 RON
80 1 1 PAD (SP-XY156F-G01) 3954 RON
81 1 1 SCREW (SP-XY156F-A12) 1772 RON
82 1 1 LIMITER (SP-XY156F-A13) 2182 RON
83 1 1 PLATE (SP-XY156F-A14) 3268 RON
84 1 1 BOLT (SP-XY156F-A15) 1772 RON
85 1 1 CRANKCASE (SP-XY156F-A18) 91363 RON
86 1 2 SCREW (SP-XY156F-A19) 1772 RON
87 1 4 SCREW (SP-XY156F-A20) 1772 RON
88 1 1 GASKET (SP-XY156F-A28) 3954 RON
89 1 1 PAN (SP-XY156F-A22) 85494 RON
90 1 1 WASHER (SP-XY156F-A24) 1630 RON
91 1 1 BOLT (SP-XY156F-A23) 1772 RON
92 1 1 SENSOR (SP-XY156F-A25) 32327 RON
93 1 1 SCREW (SP-XY156F-A26) 1772 RON
94 1 8 BOLT (SP-XY156F-A27) 1772 RON
95 1 1 COVER (SP-XY156F-G05) 4355 RON
96 1 1 BOLT (SP-XY156F-A29) 2556 RON
201 1 1 CAP SA (SP-22I-J01-BD) 18568 RON
202 1 1 SEAL (SP-22I-J02) 11337 RON
203 1 1 PAD (SP-22I-K15) 6688 RON
204 1 1 FILTER (SP-22I-J03) 5370 RON
205 1 1 TANK (SP-22I-J05) 67932 RON
206 1 1 SCREW (SP-22I-K05) 1772 RON
207 1 1 COVER (SP-22I-K06) 4827 RON
208 1 1 WASHER (SP-22I-K07) 1630 RON
209 1 25 SCREW (SP-22I-K01) 1772 RON
210 1 1 COVER (SP-22I-K02) 24962 RON
211 1 15 NUT (SP-22I-K26) 1318 RON
212 1 1 SEAL (SP-22I-K03) 6688 RON
213 1 1 PLATE (SP-22I-K18) 4827 RON
214 1 1 COVER (SP-22I-J16) 1933 RON
215 1 3 SCREW (SP-22I-J15) 1772 RON
216 1 1 VALVE (SP-22I-J14) 3268 RON
217 1 1 COVER RH (SP-22I-K17) 15469 RON
218 1 4 FASTENER (SP-22I-K12) 2796 RON
220 1 2 NUT (SP-22I-K22) 1630 RON
221 1 2 SCREW (SP-22I-K19) 1772 RON
222 1 1 PROTECTOR (SP-22I-K20) 5370 RON
223 1 1 HOUSING RH (SP-22I-K16) 57833 RON
224 1 1 PROTECTOR (SP-22I-K08-BD) 2182 RON
225 1 1 PAD (SP-22I-J04) 1933 RON
226 1 2 SCREW (SP-22I-L01) 1772 RON
227 1 1 MOTOR (SP-22I-L02) 23244 RON
228 1 1 HOLDER (SP-22I-L04) 3954 RON
229 1 2 PAD (SP-22I-K10) 3954 RON
231 1 1 TUBE (SP-22I-K11) 2796 RON
232 1 1 COVER (SP-22I-K04) 10241 RON
233 1 1 PROTECTOR (SP-22I-K09-BD) 2556 RON
235 1 3 SCREW (SP-22I-K32) 1772 RON
236 1 1 HOUSING LH (SP-22I-K13) 52855 RON
237 1 14 NUT (SP-22I-K26) 1318 RON
238 1 1 COVER LH (SP-22I-K14-BD) 12361 RON
239 1 1 FILTER (SP-22I-J06) 3954 RON
240 1 1 CLAMP (SP-22I-J07) 1772 RON
241 1 1 HOSE (SP-22I-J08) 4827 RON
242 1 8 CLAMP (SP-22I-J09) 1630 RON
243 1 2 HOSE (SP-22I-J24) 3268 RON
244 1 1 FILTER (SP-22I-J25) 4355 RON
245 1 1 CLAMP (SP-22I-J09) 1630 RON
246 1 1 HOSE (SP-22I-J23) 3954 RON
247 1 1 TUBE (SP-22I-J22) 3268 RON
248 1 1 CLAMP (SP-22I-J21) 1630 RON
249 1 1 MICRO SWITCH (SP-22I-L16) 13697 RON
250 1 3 SCREW (SP-22I-J13) 1772 RON
251 1 1 VALVE (SP-22I-J12) 6688 RON
252 1 2 SCREW (SP-22I-J18) 1772 RON
253 1 3 GASKET (SP-22I-J19) 1630 RON
254 1 1 HOSE (SP-22I-J17) 3954 RON
255 1 1 PUMP (SP-22I-J20) 42426 RON
256 1 4 BOLT (SP-22I-M02) 1772 RON
257 1 1 OIL (SP-22I-J11) 6688 RON
258 1 1 BRACKET (SP-22I-J10) 13697 RON
259 1 1 MICRO SWITCH (SP-22I-L15) 9012 RON
260 1 1 SCREW (SP-22I-L13) 1772 RON
261 1 4 WASHER (SP-22I-L14) 1630 RON
262 1 4 PAD (SP-22I-K21) 1772 RON
263 1 1 RECTIFIER (SP-22I-L11) 36994 RON
264 1 1 SCREW (SP-22I-L12) 1772 RON
265 1 1 SUPPORT RH (SP-22I-K29) 4827 RON
266 1 1 SUPPORT LH (SP-22I-K28) 5370 RON
267 1 1 SUPPORT REAR (SP-22I-K25) 4355 RON
268 1 1 NUT (SP-22I-K26) 1318 RON
269 1 1 CHASSIS (SP-22I-K30) 52855 RON
270 1 4 PAD (SP-22I-K33) 3954 RON
271 1 5 NUT (SP-22I-K31) 1630 RON
272 1 10 SCREW (SP-22I-K32) 1772 RON
273 1 1 INVERTER (SP-22I-M01) 29222 RON
274 1 2 GASKET (SP-22I-M03) 2182 RON
275 1 1 BOX (SP-22I-N01-BD) 15469 RON
276 1 1 CONTROLLER (SP-22I-N04) 28836 RON
277 1 2 SCREW (SP-22I-N03) 1772 RON
279 1 1 BOLT (SP-22I-N10) 1772 RON
280 1 6 NUT (SP-22I-N07) 1630 RON
281 1 4 SCREW (SP-22I-N05) 1772 RON
282 1 1 PANEL (SP-22I-N11) 24962 RON
283 1 2 SCREW (SP-22I-N02) 1772 RON
284 1 1 SOCKET (SP-22I-N17) 10241 RON
285 1 1 SOCKET (SP-22I-N20) 6688 RON
286 1 1 SWITCH (SP-22I-N13) 5370 RON
289 1 8 SCREW (SP-22I-N19) 1772 RON
290 1 1 SWITCH (SP-22I-N15) 3268 RON
292 1 1 NUT (SP-22I-N24) 1630 RON
293 1 4 WASHER (SP-22I-N23) 1630 RON
294 1 2 WASHER (SP-22I-N22) 1630 RON
295 1 1 NUT (SP-22I-N21) 1630 RON
