Top » Piese de schimb » PIESE BLACK & DECKER » REVOS12C Type 1

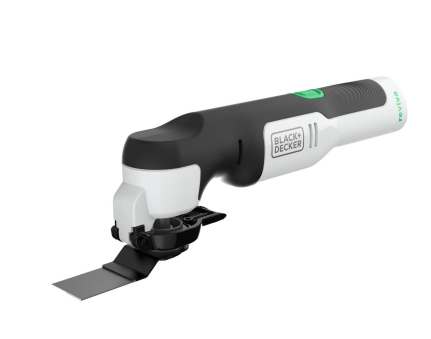

INSTRUMENT DE OSCILATIE BLACK+DECKER REVOS12C Type 1
[REVOS12C Type 1]
INSTRUMENT DE OSCILATIE BLACK+DECKER REVOS12C Type 1
Click pentru a mari
Imagini suplimentare
INSTRUMENT DE OSCILATIE BLACK+DECKER REVOS12C Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE BLACK+DECKER REVOS12C Type 1
Click pentru a mari

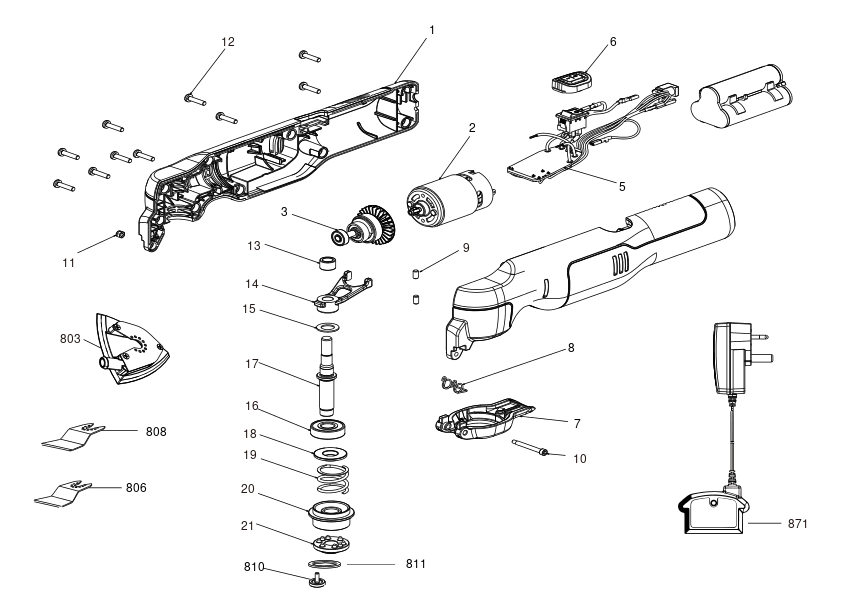

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA117384) 20216 RON
2 1 1 MOTOR SA (N924720) 13697 RON
3 1 1 SHAFT SA (90592735SV) 9012 RON
5 1 1 PCB SA (NA123312) 18568 RON
6 1 1 BOOT (NA111930) 944 RON
7 1 1 LEVER (NA123121) 1630 RON
8 1 1 SPRING (90582688) 588 RON
9 1 2 PLUG (N505530) 588 RON
10 1 1 SCREW (90581542) 558 RON
11 1 1 NUT (90581543) 558 RON
12 1 10 Screw M3.5X16 T15 (330019-03) 558 RON
13 1 1 BEARING NEEDLE (624474-06) 105 RON
14 1 1 YOKE (90580652-01) 4827 RON
15 1 1 WASHER (90617957) 588 RON
16 1 1 BEARING,BALL (90581548) 1772 RON
17 1 1 SPINDLE (90580651) 2796 RON
18 1 1 SEAT (N535230) 668 RON
19 1 1 SPRING COMPRESSION (90580654) 588 RON
20 1 1 CLAMP (90580655) 2556 RON
21 1 1 WASHER CLAMP (90580656) 2796 RON
803 1 1 HEAD SA (90583530) 5031 RON
806 1 1 BLADE (90585829) 2347 RON
808 1 1 BLADE (NA066693) 3268 RON
810 1 1 OUTER FLANGE (90584484) 1452 RON
811 1 1 FLANGE cod vechi 90583885 (N440293) 2124 RON
871 1 1 NA132434 - Indisponibil
