Top » Piese de schimb » PIESE BLACK & DECKER » BDCOS18D1K Type 1

INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
[BDCOS18D1K Type 1]
INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
Click pentru a mari
Imagini suplimentare
INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE BLACK+DECKER BDCOS18D1K Type 1
Click pentru a mari

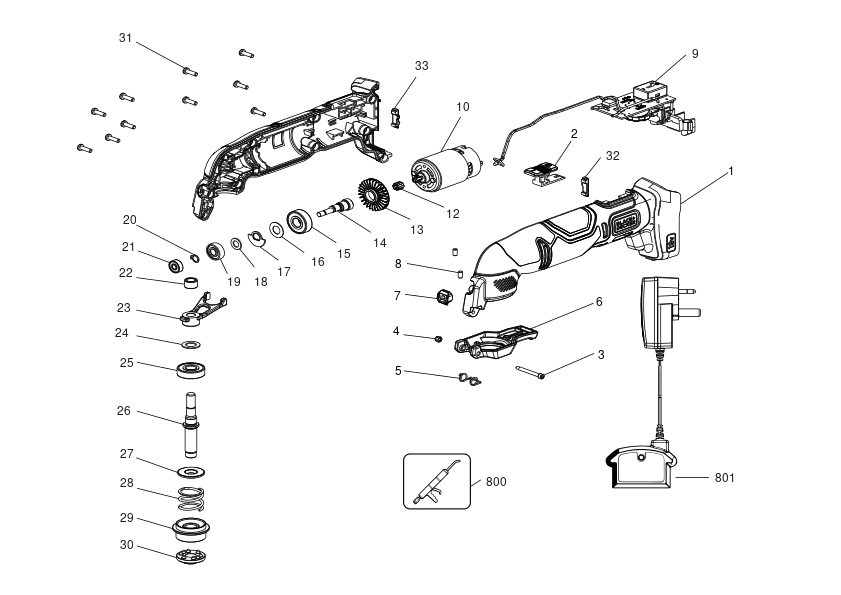

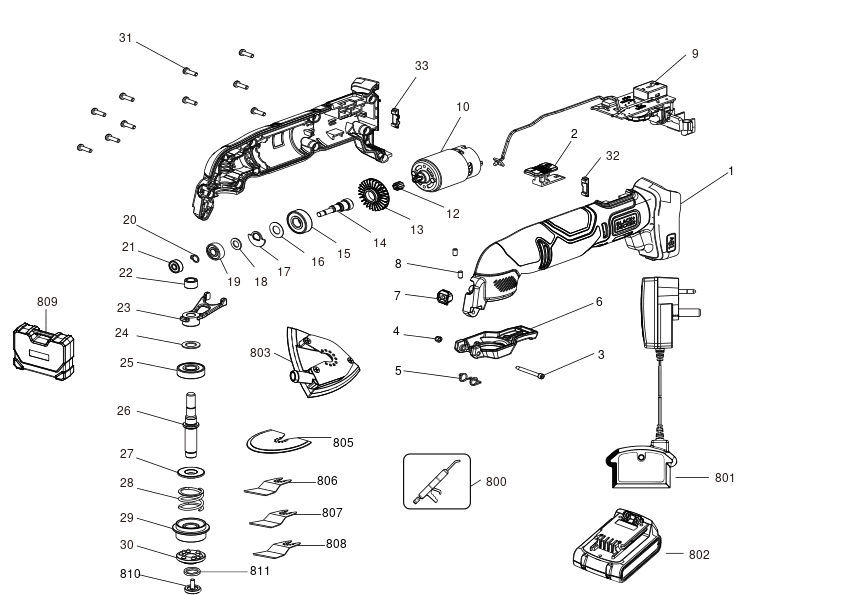

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA039631) 15469 RON
2 1 1 TRIGGER (NA067790) 588 RON
3 1 1 SCREW (90581542) 558 RON
4 1 1 NUT (90581543) 558 RON
5 1 1 SPRING TORSION (90580672) 558 RON
6 1 1 90599051 - Indisponibil
6 1 1 LEVEL (N885171) 1318 RON
6 1 1 LEVEL (NA396338) 944 RON
7 1 1 COVER (90593191) 588 RON
8 1 2 PLUG (90596629) 588 RON
9 1 1 PCB SA (NA067787) 28836 RON
10 1 1 MOTOR SA (NA066284) 18568 RON
12 1 1 PINION (90592739) 588 RON
13 1 1 FAN (90592738) 588 RON
14 1 1 DRIVE SHAFT (90592736) 3268 RON
15 1 1 BEARING (90581550) 1452 RON
16 1 1 WASHER (90594208) 588 RON
17 1 1 PLATE (90581541) 558 RON
18 1 1 WASHER (90581562) 558 RON
19 1 1 BEARING (90586419) 2124 RON
20 1 1 CLIP (90581539) 558 RON
21 1 1 BEARING (90592737) 1772 RON
22 1 1 BEARING NEEDLE (624474-06) 105 RON
23 1 1 YOKE (90580652-01) 4827 RON
24 1 1 WASHER (90617957) 588 RON
25 1 1 BEARING,BALL (90581548) 1772 RON
26 1 1 SPINDLE (90580651) 2796 RON
27 1 1 SEAT (N535230) 668 RON
28 1 1 SPRING COMPRESSION (90580654) 588 RON
29 1 1 CLAMP (90580655) 2556 RON
30 1 1 WASHER CLAMP (90580656) 2796 RON
31 1 10 SCREW NO.6 X 12.7 (370748) 558 RON
32 1 1 NA071234 - Indisponibil
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 CHARGER SA (90634972) 21676 RON
803 1 1 HEAD SA (90583530) 5031 RON
805 1 1 BLADE - CARBIDE (90585838) 6821 RON
806 1 1 BLADE (90585829) 2347 RON
807 1 1 BLADE (NA066692) 2556 RON
808 1 1 BLADE (NA066693) 3268 RON
809 1 1 NA066597 - Indisponibil
810 1 1 OUTER FLANGE (90584484) 1452 RON
811 1 1 FLANGE cod vechi 90583885 (N440293) 2124 RON
