Top » Piese de schimb » PIESE BLACK & DECKER » HPL108 Type H1

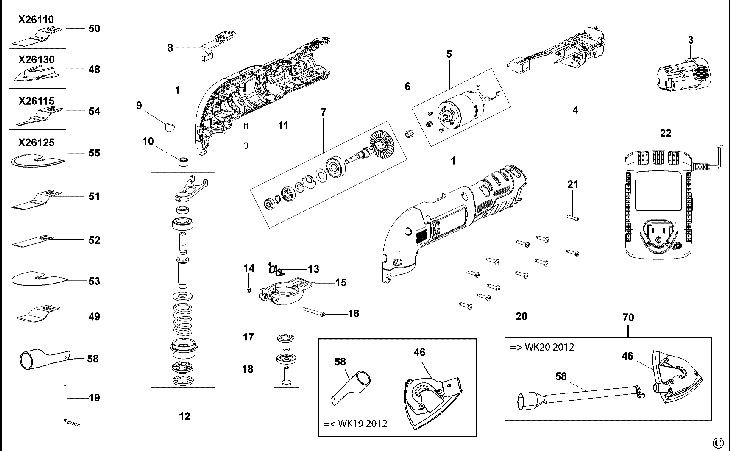

HPL108 OSCILLATING TOOL Type H1
[HPL108 Type H1]
HPL108 OSCILLATING TOOL Type H1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (1004556-00) 17335 RON
3 1 1 BATTERY PACK 10.8V Li-Ion (90551123-01) 32770 RON
4 1 1 PCB SA (1004556-01) 3592 RON
5 1 1 MOTOR SA (1004556-02) 20467 RON
6 1 1 CONNECTOR (5140109-89) 781 RON
7 1 1 SHAFT SA (5140109-90) 12861 RON
8 1 1 ACTUATOR (5140109-91) 105 RON
9 1 1 COVER (5140109-92) 1229 RON
10 1 1 BEARING (5140109-93) 1229 RON
11 1 2 RUBBER STRIP (5140109-94) 558 RON
12 1 1 SPINDLE (5140109-95) 25164 RON
13 1 1 SPRING (5140108-86) 1117 RON
14 1 1 NUT (5140108-89) 558 RON
15 1 1 SPANNER (5140108-88) 3018 RON
16 1 1 SCREW (5140108-87) 781 RON
17 1 1 ADAPTOR (1004556-03) 6821 RON
18 1 1 SCREW (1004556-04) 781 RON
19 1 1 SPANNER (1004556-05) 893 RON
20 1 9 SCREW (5140109-85) 558 RON
21 1 2 SCREW (5140109-97) 558 RON
22 1 1 CHARGER SA (90559983) 4825 RON
46 1 1 PLATEN (6010352-13) 11519 RON
46 1 1 HEAD SA (1004683-30) 1891 RON
48 1 1 BLADE (1004556-08) 12861 RON
49 1 1 BLADE (5140109-96) 3466 RON
50 1 1 BLADE (1004556-09) 7940 RON
51 1 1 BLADE (5140109-24) 6821 RON
52 1 1 BLADE (5140109-25) 3466 RON
53 1 1 BLADE (5140109-26) 12861 RON
54 1 1 BLADE (1004556-10) 5031 RON
55 1 1 BLADE (1004556-11) 14315 RON
58 1 1 VACUUM ADAPTOR (1004556-07) 1788 RON
58 1 1 HOSE SA (6010352-14) 5591 RON
70 1 1 HEAD SA (1004683-30) 1891 RON
