HEDGE TRIMMER BLACK+DECKER GTC18452PC Type 1
[GTC18452PC Type 1]
HEDGE TRIMMER BLACK+DECKER GTC18452PC Type 1
Click pentru a mari
Imagini suplimentare
HEDGE TRIMMER BLACK+DECKER GTC18452PC Type 1
Click pentru a mari
HEDGE TRIMMER BLACK+DECKER GTC18452PC Type 1
Click pentru a mari

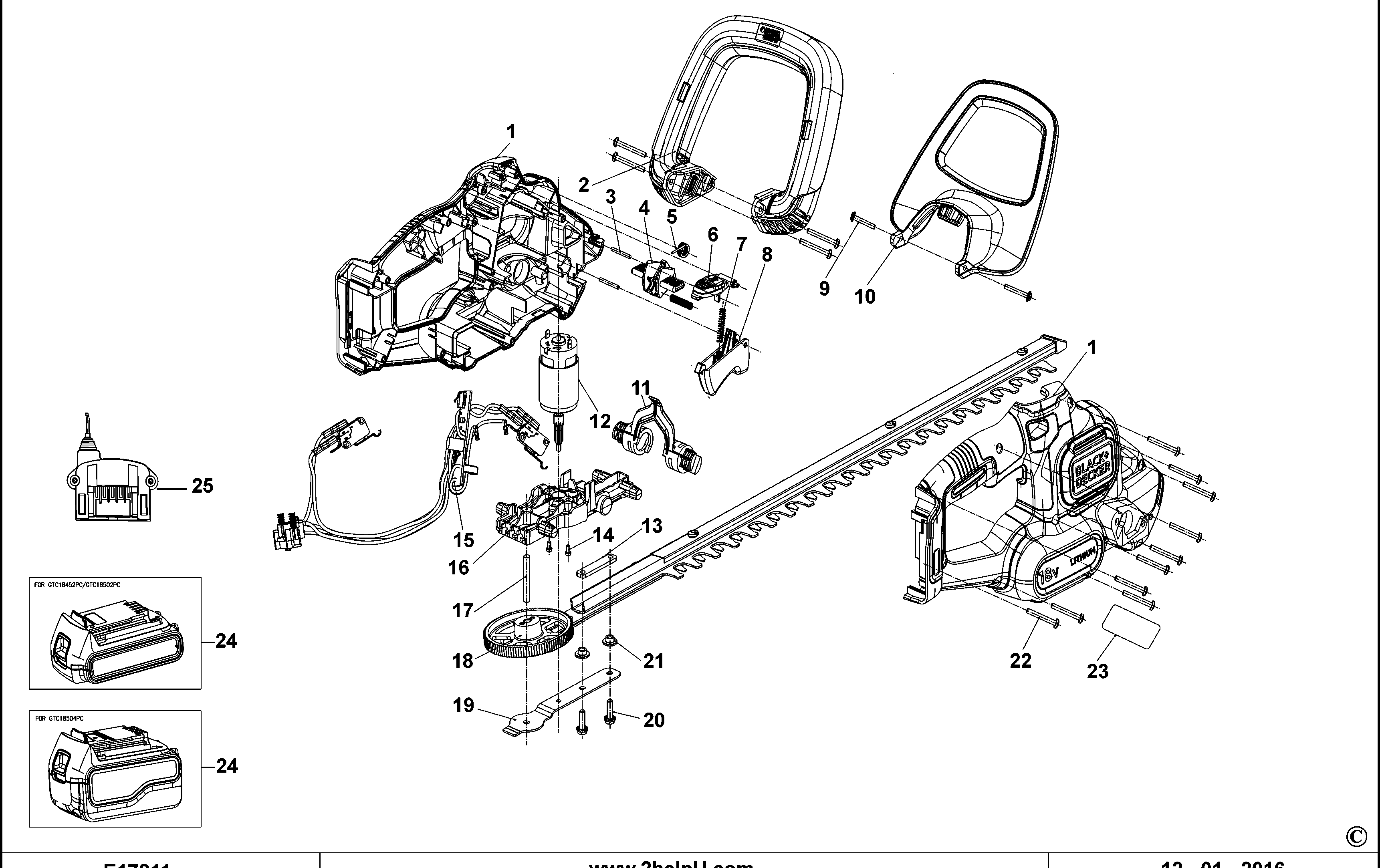

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (90628057) 12361 RON
2 1 1 HANDLE SA (90615518) 6688 RON
3 1 2 PIN (5119820-00) 588 RON
4 1 1 TRIGGER (90623716) 588 RON
5 1 1 SPRING TORSION (90623720) 588 RON
6 1 1 BUTTON (90621626) 588 RON
7 1 2 SPRING COMPRESSION (90623323) 588 RON
8 1 1 TRIGGER (90621622) 668 RON
9 1 2 SCREW (90577627) 558 RON
10 1 1 GUARD (90577004) 190 RON
10 1 1 GUARD SA (NA714164) 1772 RON
11 1 1 LINK (90621623) 82 RON
12 1 1 MOTOR AND PINION (90634325) 12361 RON
13 1 1 PLATE (90568498) 781 RON
14 1 2 SCREW (90566914) 588 RON
15 1 1 PCB SA (90627099) 28836 RON
16 1 1 GEARBOX SA (90564147) 2556 RON
17 1 1 AXLE (90597621) 668 RON
18 1 1 BLADE SA (90597357-01) 27287 RON
19 1 1 PLATE (90570808) 1452 RON
20 1 2 BOLT (90527921) 558 RON
21 1 2 BLADE SPACER (376614-01) 781 RON
22 1 14 SCREW (747329) 558 RON
23 1 1 RATING LABEL (90629837) 588 RON
23 1 1 NA423042 - Indisponibil
24 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
24 1 1 90617054 - Indisponibil
25 1 1 CHARGER SA (90590289-05) 15469 RON
25 1 1 90590289-01 - Indisponibil
