Top » Piese de schimb » PIESE BLACK & DECKER » GD200 Type 8

GREBLA DE GAZON BLACK+DECKER GD200 Type 8
[GD200 Type 8]
GREBLA DE GAZON BLACK+DECKER GD200 Type 8
Click pentru a mari
Imagini suplimentare
GREBLA DE GAZON BLACK+DECKER GD200 Type 8
Click pentru a mari

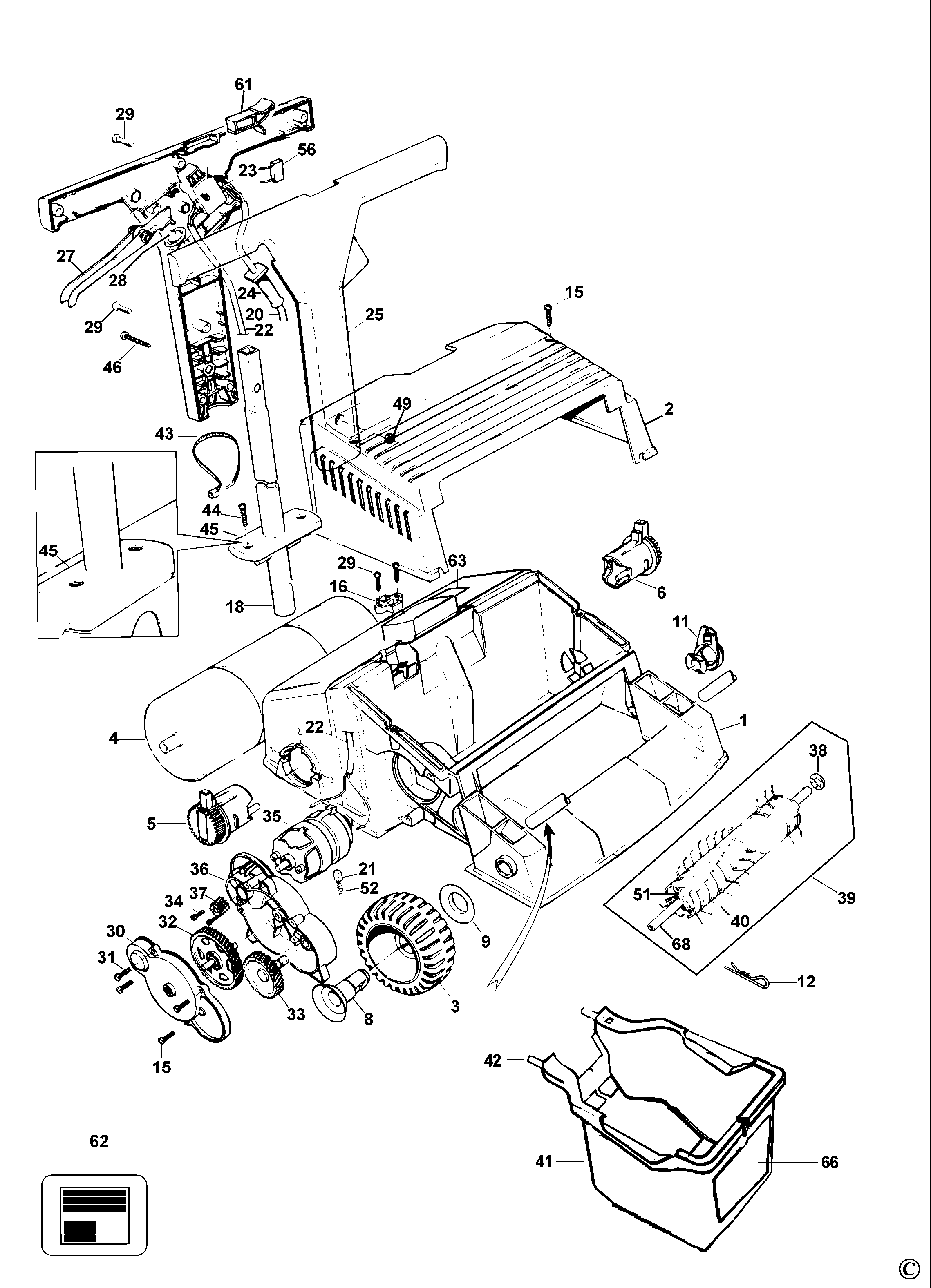

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MAIN COVER (577561-00) 25164 RON
2 1 1 TOP COVER GD (576330-00) 5031 RON
3 1 2 846375 - Indisponibil
4 1 1 ROLLER (577586-00) 4137 RON
5 1 1 ADJUSTER HEIGHT LH (824217) 6821 RON
6 1 1 ADJUSTER HEIGHT RH (824218) 6821 RON
8 1 2 STUB AXLE (846378) 1229 RON
9 1 2 N542550 - Indisponibil
9 1 2 WHEEL SPACER (814203) 1229 RON
11 1 1 S.A. BEARING HOUSING GD (810189) 2347 RON
12 1 1 SPRING PIN (820378) 781 RON
15 1 5 SCREW (889709) 558 RON
16 1 1 @ HOUSING SET (MOSS GREEN) CORD CLAMP (994808) Indisponibil Indisponibil
18 1 1 SA HANDLE TUBE (577521-00) 3466 RON
20 1 1 330048-25 - Indisponibil
21 1 2 372523 - Indisponibil
22 1 1 796952-02 - Indisponibil
23 1 1 795780 - Indisponibil
24 1 1 859013 - Indisponibil
25 1 1 TEE HANDLE SET (577583-00) 5591 RON
25 1 1 585073-00 - Indisponibil
27 1 1 746041 - Indisponibil
27 1 1 LEVER ORANGE (583897-00) 105 RON
27 1 1 LEVER ORANGE GD (822868) 105 RON
28 1 1 ACTUATOR GD (813506) 558 RON
29 1 11 SCREW 8-16 X 3/4 (849256) 558 RON
30 1 1 810827 - Indisponibil
31 1 4 SCREW NO. 8 X 16 (884182) 558 RON
32 1 1 811227 - Indisponibil
33 1 1 GEAR (810102) 5031 RON
34 1 2 SCREW PATCH LOCK (812171) 558 RON
35 1 1 SA MOTOR (SERVICE) (571299-14) 28296 RON
36 1 1 S.A. GEARCASE (810825) 9282 RON
37 1 1 PINION (810101) 2795 RON
38 1 1 RETAINER (896057) 558 RON
39 1 1 S.A.TINES ORANGE (375531-01) 14315 RON
40 1 57 COMB (848638) 558 RON
41 1 1 COLLECTION BOX GD (811924) 15993 RON
42 1 2 SUPPORT TUBE (822291) 2124 RON
43 1 1 812151 - Indisponibil
44 1 2 SCREW (889709) 558 RON
45 1 1 HANDLE PLATE GD (577520-00) 781 RON
46 1 1 898526 - Indisponibil
49 1 1 NUT M4 (892153) 558 RON
51 1 1 TENSION PIN (748470) 558 RON
52 1 2 SPRING (847709) 558 RON
56 1 1 CAPACITOR (807285-08) 105 RON
61 1 1 822740 - Indisponibil
62 1 1 RATING PLATE (569036-00) 893 RON
63 1 1 WARNING LABEL (579966-00) 781 RON
66 1 1 LABEL COLLECTION BOX (577577-00) 1117 RON
68 1 1 S.A.TINES ORANGE (375531-01) 14315 RON
68 1 1 SA TINE AXLE (749009) 6821 RON
