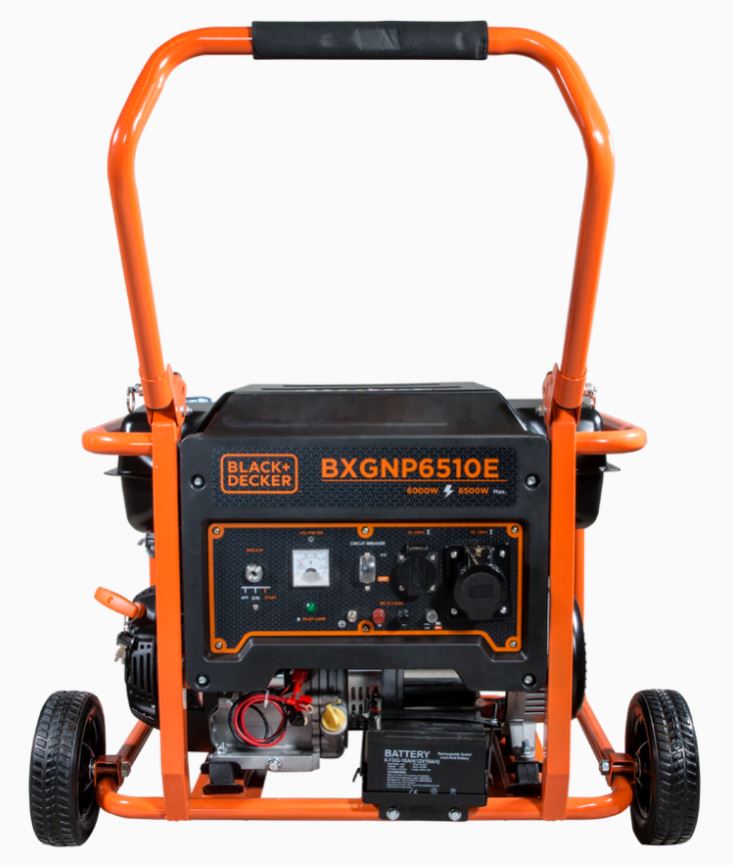

GENERATOR BLACK+DECKER BXGNP6510E Type 1
[BXGNP6510E Type 1]
GENERATOR BLACK+DECKER BXGNP6510E Type 1
Click pentru a mari
Imagini suplimentare
GENERATOR BLACK+DECKER BXGNP6510E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGNP6510E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGNP6510E Type 1
Click pentru a mari

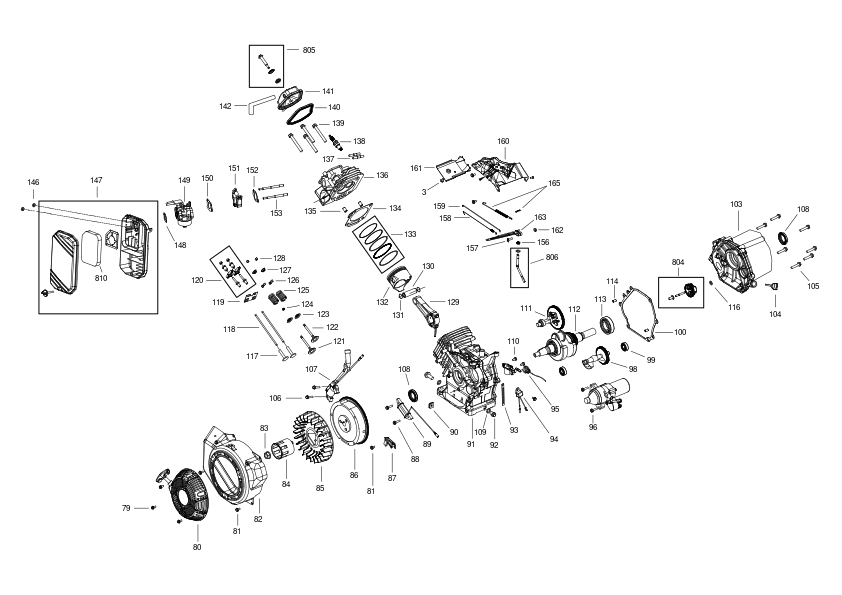

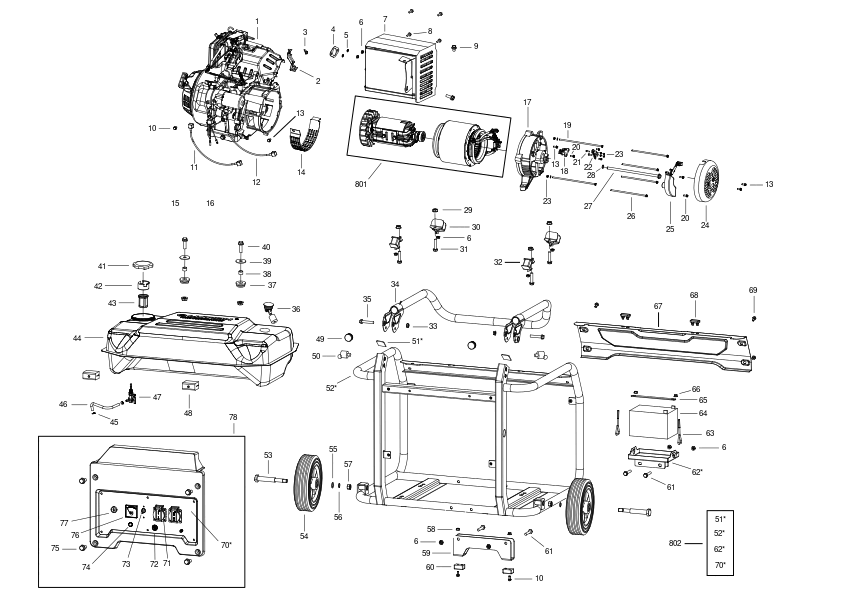

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR (IT-LS420) 277356 RON
2 1 1 BRACKET (SP-BD6510E-A02) 9012 RON
3 1 1 BOLT (SP-BD6510E-A03) 114 RON
4 1 1 GASKET (SP-BD6510E-B01) 2796 RON
5 1 2 WASHER SPRING (SP-BD6510E-B02) 944 RON
6 1 2 NUT (SP-BD6510E-B03) 114 RON
7 1 1 MUFFLER (SP-BD6510E-B07) 55455 RON
8 1 3 BOLT (SP-BD6510E-B05) 1630 RON
9 1 2 BOLT (SP-BD6510E-B06) 1630 RON
10 1 1 BOLT (SP-BD6510E-A08) 1630 RON
11 1 1 WIRE (SP-BD6510E-A07) 9012 RON
12 1 1 WIRE (SP-BD6510E-A06) 9012 RON
13 1 1 BOLT (SP-BD6510E-A05) 1630 RON
14 1 1 MOTOR COVER (SP-BD6510E-A04) 13697 RON
17 1 1 COVER REAR (SP-D400-S04) 48037 RON
18 1 1 BRUSH (SP-ALT-ESC-5) 11337 RON
19 1 4 BOLT (SP-M5X220) 3268 RON
20 1 3 BOLT (SP-M5X16) 1630 RON
21 1 2 BOLT (SP-M5X20) 1630 RON
22 1 2 PLATE (SP-D400-S05) 3954 RON
23 1 3 BOLT (SP-M5X16) 1630 RON
24 1 1 COVER (SP-D400-S07) 10241 RON
25 1 1 VOLTAGE REGULATOR (SP-ALT-AVR-5) 60451 RON
26 1 4 BOLT (SP-M6X185) 3268 RON
27 1 1 BOLT (SP-M10X270) 4355 RON
28 1 2 WASHER SPRING (SP-ARANDELA-10) 1630 RON
29 1 8 NUT (SP-K8000-E17) 944 RON
30 1 2 DAMPER (SP-IC390-N02) 9012 RON
31 1 1 BOLT (SP-BD6510E-A03) 114 RON
32 1 2 DAMPER (SP-IC390-N02) 9012 RON
33 1 2 NUT (SP-BD6510E-F05) 114 RON
34 1 2 HANDLE (SP-BD6510E-F01) 32327 RON
35 1 2 BOLT (SP-BD6510E-F02) 1630 RON
36 1 1 GAUGE (SP-BD6510E-D08) 9012 RON
37 1 2 GASKET (SP-BD6510E-D09) 1318 RON
38 1 2 PIN (SP-BD6510E-D10) 1318 RON
39 1 2 WASHER (SP-BD6510E-D11) 944 RON
40 1 2 BOLT (SP-BD6510E-D12) 1630 RON
41 1 1 CAP (SP-BD6510E-D01) 13697 RON
42 1 1 RING (SP-BD6510E-D02) 10241 RON
43 1 1 FILTER (SP-BD6510E-D03) 3268 RON
44 1 1 FUEL TANK (SP-BD6510E-D04) 78485 RON
45 1 2 CLIP (SP-BD6510E-D07) 1630 RON
46 1 1 TUBE (SP-BD6510E-D06) 9012 RON
47 1 1 SWITCH (SP-IC390-O04) 27287 RON
48 1 2 FEET (SP-BD6510E-F07) 10241 RON
49 1 2 END CAP (SP-BD6510E-F03) 1630 RON
50 1 2 PIN (SP-BD6510E-F04) 3268 RON
53 1 2 SHAFT (SP-BD6510E-F13) 741 RON
54 1 2 WHEEL (SP-BD6510E-F14) 21676 RON
55 1 2 WASHER (SP-BD6510E-F15) 1318 RON
56 1 2 NUT (SP-BD6510E-F16) 1318 RON
57 1 2 NUT (SP-BD6510E-F17) 1318 RON
58 1 2 NUT (SP-BD6510E-F19) 114 RON
59 1 1 BOLT (SP-BD6510E-F21) 15469 RON
60 1 2 FEET (SP-BD6510E-F23) 6688 RON
61 1 1 BOLT (SP-BD6510E-F18) 1630 RON
63 1 2 BOLT (SP-BD6510E-F11) 1630 RON
64 1 1 BATTERY (SP-BAT-10AH-12V) 139195 RON
65 1 1 CLAMP (SP-BD6510E-F09) 9012 RON
66 1 2 BOLT (SP-BD6510E-F08) 114 RON
67 1 1 GUARD (SP-BD6510E-F25) 18568 RON
68 1 2 SEAL (SP-BD6510E-F26) 4827 RON
69 1 1 BOLT (SP-BD6510E-F27) 1630 RON
71 1 2 SOCKET (1004786-63) 24962 RON
72 1 1 OVERLOAD PROTECTOR (SP-PC-OVER-6A) 12361 RON
73 1 1 CIRCUIT BREAKER (SP-PC-INT-1P-25A) 27287 RON
74 1 1 INDICATOR (SP-BD3000E-E03) 9012 RON
75 1 1 BOLT (SP-BD6510E-A03) 114 RON
76 1 1 MEASURE (SP-PC-VOLT-1PH) 27287 RON
77 1 1 LOCK (SP-PC-STARTER-G) 21676 RON
78 1 1 CONTROL PANEL (SP-BD6510E-E14) 214180 RON
79 1 3 BOLT (SP-LS420-F01) 1630 RON
80 1 1 STARTER ROPE (SP-LS420-F02) 44688 RON
81 1 1 BOLT (SP-LS420-F03) 1630 RON
82 1 1 COVER (SP-LS420-F04) 24962 RON
83 1 1 NUT (SP-LS420-I01) 1318 RON
84 1 1 PULLEY (SP-LS420-I02) 6688 RON
85 1 1 FAN (SP-LS420-I03) 15469 RON
86 1 1 FLYWHEEL (SP-LS420-I04-1) 49114 RON
87 1 1 GUIDE (SP-LS420-I10) 1630 RON
88 1 1 BOLT (SP-LS420-I07) 1630 RON
89 1 1 COIL SA (SP-LS420-I08) 36994 RON
90 1 1 RUBBER (SP-LS420-B03) 4827 RON
91 1 1 CRANKCASE (SP-LS420-B01-1) 176482 RON
92 1 2 BOLT (SP-LS420-B07) 1630 RON
93 1 1 CLAMP (SP-LS420-B06) 2796 RON
94 1 1 PROTECTOR (SP-LS420-B05) 12361 RON
95 1 1 SENSOR (SP-LS420-B11) 944 RON
96 1 1 BOLT (SP-LS420-B10) 1630 RON
97 1 1 MOTOR (SP-LS420-J01) 176482 RON
98 1 1 SHAFT (SP-LS420-E05) 48037 RON
99 1 2 BEARING (SP-LS420-B09) 18568 RON
100 1 1 GASKET (SP-LS420-C01) 6688 RON
103 1 1 COVER (SP-LS420-C08) 63720 RON
104 1 1 DIPSTICK (SP-LS420-C11) 6688 RON
105 1 1 BOLT (SP-LS420-C09) 13697 RON
106 1 2 BOLT (SP-LS420-I05) 1630 RON
107 1 1 WIRE HARNESS (SP-LS420-I06) 28836 RON
108 1 1 SEAL (SP-LS420-C10) 5370 RON
109 1 2 WASHER (SP-LS420-B08) 944 RON
110 1 2 BOLT (SP-LS420-B10) 1630 RON
112 1 1 CRANKSHAFT (SP-LS420-D07) 12361 RON
113 1 1 BEARING (SP-LS420-C06) 21676 RON
114 1 2 DOWEL (SP-LS420-B12) 9012 RON
116 1 2 WASHER (SP-LS420-C05) 82 RON
117 1 2 LIFTER (SP-LS420-E04) 4355 RON
118 1 2 ROD (SP-LS420-E03) 3268 RON
119 1 1 GUIDE (SP-LS420-E02) 6688 RON
120 1 2 ROCKER (SP-LS420-E01) 28836 RON
121 1 1 INTAKE VALVE (SP-LS420-E07) 9012 RON
122 1 1 VALVE (SP-LS420-E06) 9012 RON
123 1 2 SEAT (SP-LS420-E08) 1772 RON
124 1 2 SEAL (SP-LS420-E09) 2182 RON
125 1 2 VALVE SPRING (SP-LS420-E10) 3954 RON
126 1 4 VALVE (SP-LS420-E11) 5370 RON
127 1 4 SPRING (SP-LS420-E12) 1772 RON
128 1 1 VALVE (SP-LS420-E13) 944 RON
129 1 1 CONNECTING ROD (SP-LS420-D05) 33797 RON
130 1 1 PIN (SP-LS420-D04) 3954 RON
131 1 2 CLIP (SP-LS420-D06) 944 RON
132 1 1 PISTON (SP-LS420-D02) 28836 RON
133 1 1 PISTON RING (SP-LS420-D03) 12361 RON
134 1 1 GASKET (SP-LS420-A11) 4827 RON
135 1 2 PIN (SP-LS420-A12) 944 RON
136 1 1 CYLINDER HEAD (SP-LS420-A13) 104961 RON
137 1 2 STUD (SP-LS420-A10) 1318 RON
138 1 1 SPARK PLUG (SP-BUJIA-F7RTC) 9012 RON
139 1 4 BOLT (SP-LS420-A07) 1318 RON
140 1 1 GASKET (SP-LS420-A06) 4827 RON
141 1 1 COVER (SP-LS420-A05) 9012 RON
142 1 1 TUBE (SP-LS420-A04) 1630 RON
146 1 2 BOLT (SP-LS420-L02) 944 RON
147 1 1 FILTER (SP-LS420-L01) 39318 RON
148 1 1 GASKET (SP-LS420-G01) 2556 RON
149 1 1 CARBURETTOR SA (SP-LS420-G02) 78485 RON
150 1 1 GASKET (SP-LS420-G03) 2556 RON
151 1 1 INSULATOR (SP-LS420-G04) 9012 RON
152 1 1 GASKET (SP-LS420-G05) 1933 RON
153 1 2 BOLT (SP-LS420-A09-2) 1933 RON
157 1 1 BOLT (SP-LS420-K05) 1630 RON
158 1 1 SPRING (SP-LS420-K02) 1630 RON
159 1 1 ROD (SP-LS420-K03) 1318 RON
160 1 1 CONTROL SA (SP-LS420-K01) 15469 RON
161 1 1 INTAKE (SP-LS420-F05) 5370 RON
162 1 1 BOLT (SP-LS420-K06) 944 RON
163 1 1 REGULATOR (SP-LS420-K04) 1630 RON
165 1 1 SPRING (SP-LS420-K07) 1318 RON
801 1 1 ALTERNATOR (SP-ALT-6-LT) 481793 RON
802 1 1 FRAME (SP-BD6510E-F06) 63720 RON
804 1 1 SLEEVE (SP-LS420-C02) 12361 RON
805 1 1 SCREW (SP-LS420-A01) 2556 RON
806 1 1 SHAFT (SP-LS420-B13) 15469 RON
810 1 1 FILTER (SP-LS420-L01-2) 9012 RON
