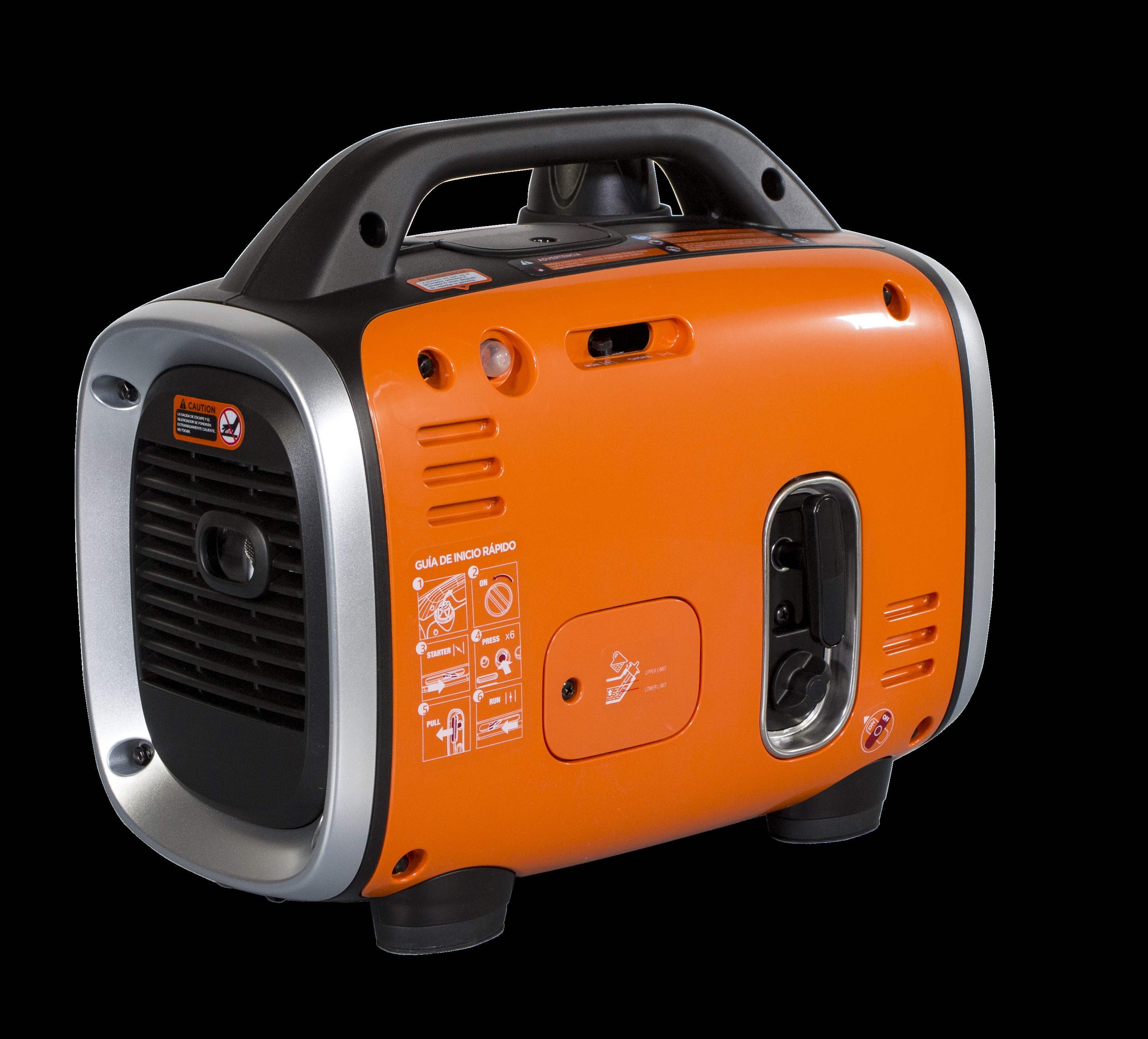

GENERATOR BLACK+DECKER BXGNI900E Type 1
[BXGNI900E Type 1]
GENERATOR BLACK+DECKER BXGNI900E Type 1
Click pentru a mari
Imagini suplimentare
GENERATOR BLACK+DECKER BXGNI900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGNI900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGNI900E Type 1
Click pentru a mari

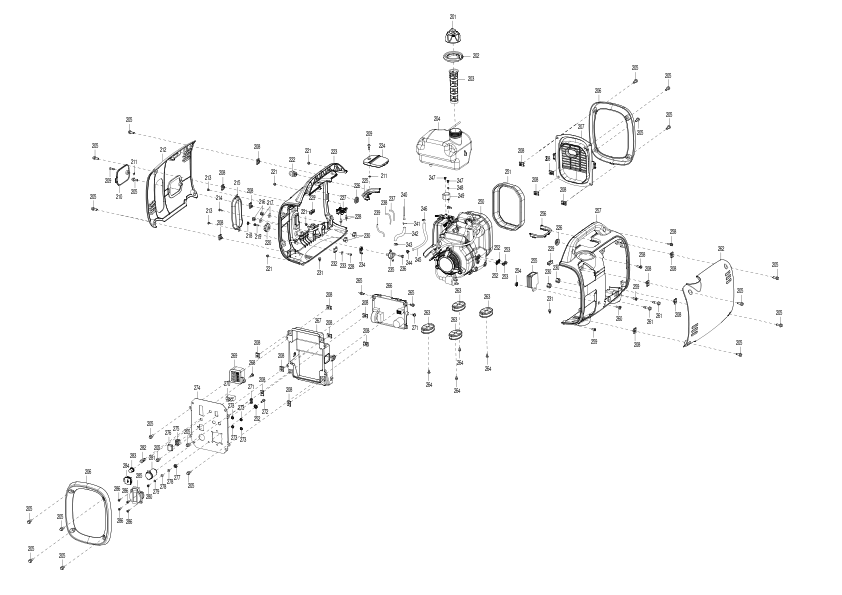

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (SP-IC40I-A-01) 1772 RON
2 1 1 COVER (SP-IC40I-A-02) 2556 RON
3 1 1 SEAL (SP-IC40I-A-03) 3268 RON
4 1 1 SPARK PLUG (SP-BUJIA-CMR6A) 10241 RON
5 1 2 SEAT (SP-IC40I-C-11) 1630 RON
6 1 2 SPRING (SP-IC40I-C-10) 1772 RON
8 1 5 SCREW (SP-IC40I-A-08) 1772 RON
9 1 1 COVER (SP-IC40I-A-07) 3268 RON
10 1 1 WASHER (SP-IC40I-C-03) 1630 RON
11 1 1 PIN (SP-IC40I-C-04) 1630 RON
12 1 1 ROCKER (SP-IC40I-C-06) 3954 RON
13 1 1 BUSH (SP-IC40I-C-01) 1630 RON
14 1 1 Gear (SP-IC40I-C-02) 741 RON
15 1 1 PIN (SP-IC40I-C-05) 1630 RON
16 1 1 GASKET (SP-IC40I-E-03) 1772 RON
18 1 1 PIN (SP-IC40I-C-09) 1630 RON
19 1 1 ROCKER (SP-IC40I-C-08) 6688 RON
21 1 2 BOLT (SP-IC40I-A-21) 1772 RON
22 1 2 TAP (SP-IC40I-C-07) 2182 RON
23 1 1 CRANKCASE (SP-IC40I-A-09) 28836 RON
24 1 1 VALVE (SP-IC40I-C-12) 741 RON
25 1 1 VALVE (SP-IC40I-C-13) 741 RON
27 1 2 CLIP (SP-IC40I-B-03) 1630 RON
28 1 1 PISTON RING (SP-IC40I-B-07) 16689 RON
32 1 1 PISTON (SP-IC40I-B-06) 10241 RON
33 1 1 PIN (SP-IC40I-B-04) 2556 RON
34 1 1 CONNECTING ROD (SP-IC40I-B-01) 38463 RON
35 1 1 WOODRUFF KEY (SP-IC40I-B-02) 1630 RON
36 1 1 WASHER (SP-IC40I-A-10) 1630 RON
37 1 1 SEAL (SP-IC40I-A-11) 1772 RON
38 1 1 PIN (SP-IC40I-A-14) 1630 RON
39 1 1 NOZZLE (SP-IC40I-A-15) 1630 RON
40 1 1 CRANKCASE (SP-IC40I-A-16) 15469 RON
41 1 1 GAUGE (SP-IC40I-A-12) 1630 RON
42 1 1 SEAL (SP-IC40I-A-13) 1630 RON
43 1 1 PAD (SP-IC40I-G-04) 1318 RON
44 1 1 SEAL (SP-IC40I-A-20) 741 RON
46 1 2 SCREW (SP-IC40I-A-17) 1772 RON
47 1 4 SCREW (SP-IC40I-A-18) 1772 RON
48 1 1 PAN (SP-IC40I-A-24) 9012 RON
49 1 1 BOLT (SP-IC40I-A-22) 1772 RON
50 1 1 WASHER (SP-IC40I-A-23) 1630 RON
51 1 1 SENSOR (SP-IC40I-A-25) 11337 RON
52 1 2 SCREW (SP-IC40I-A-26) 1772 RON
53 1 6 BOLT (SP-IC40I-A-05) 1772 RON
54 1 1 BOLT (SP-IC40I-H-04) 1772 RON
55 1 2 BOLT (SP-IC40I-H-01) 1772 RON
56 1 1 MUFFLER (SP-IC40I-H-02) 20216 RON
57 1 1 GASKET (SP-IC40I-H-03) 1630 RON
58 1 1 PIPE (SP-IC40I-H-06) 13697 RON
59 1 2 NUT (SP-IC40I-H-08) 1630 RON
61 1 1 GUIDE (SP-IC40I-G-01) 741 RON
62 1 5 SCREW (SP-IC40I-G-03) 1772 RON
63 1 2 CLAMP (SP-IC40I-D-08) 1630 RON
64 1 1 PIPE (SP-IC40I-D-07) 4827 RON
65 1 1 GUIDE (SP-IC40I-G-02) 741 RON
66 1 1 SEAL (SP-IC40I-I-11) 1630 RON
67 1 1 TRIGGER (SP-IC40I-I-08) 6688 RON
68 1 2 BOLT (SP-IC40I-I-07) 1630 RON
69 1 1 PLATE (SP-IC40I-I-01) 10241 RON
70 1 1 STATOR (SP-IC40I-I-02) 91363 RON
71 1 2 BOLT (SP-IC40I-I-04) 1772 RON
72 1 1 ROTOR (SP-IC40I-I-05) 67932 RON
73 1 1 NUT (SP-IC40I-I-06) 1630 RON
74 1 1 FAN (SP-IC40I-G-05) 4355 RON
75 1 1 HUB (SP-IC40I-G-06) 741 RON
76 1 2 SCREW (SP-IC40I-G-07) 1772 RON
77 1 1 CONE (SP-IC40I-G-08) 1630 RON
78 1 1 STARTER ROPE (SP-IC40I-G-09) 27287 RON
80 1 5 BOLT (SP-IC40I-D-06) 1772 RON
81 1 1 TUBE (SP-IC40I-D-03) 3268 RON
82 1 4 CLAMP (SP-IC40I-D-02) 1630 RON
83 1 1 VALVE (SP-IC40I-D-01) 741 RON
84 1 1 O RING (SP-IC40I-D-05) 1630 RON
85 1 1 COIL (SP-IC40I-I-09) 21676 RON
86 1 1 GASKET (SP-IC40I-E-08) 1630 RON
87 1 2 BLOCK (SP-IC40I-E-07) 1630 RON
88 1 2 BOLT (SP-IC40I-E-06) 1772 RON
89 1 1 BOARD (SP-IC40I-E-05) 2556 RON
90 1 2 BOLT (SP-IC40I-E-04) 1630 RON
91 1 1 CARBURETTOR SA (SP-IC40I-F-01) 42426 RON
93 1 1 TUBE (SP-IC40I-D-04) 4355 RON
94 1 1 SCREW (SP-IC40I-E-11) 1772 RON
97 1 1 FOAM (SP-IC40I-E-01-1) 1772 RON
98 1 1 SCREW (SP-IC40I-E-01-2) 1772 RON
99 1 1 BOLT (SP-IC40I-E-10) 1772 RON
100 1 1 SCREW (SP-IC40I-I-10) 1772 RON
102 1 4 WASHER (SP-IC40I-I-03) 1318 RON
106 1 1 HANDLE (SP-IC40I-G-09-1) 1630 RON
107 1 1 PANEL (SP-IC40I-G-09-2) 1630 RON
201 1 1 CAP (SP-9I-J-01-BD) 741 RON
202 1 1 SEAL (SP-9I-J-03) 4355 RON
203 1 1 FILTER (SP-9I-J-02) 741 RON
204 1 1 TANK (SP-9I-J-04) 18568 RON
205 1 20 NUT (SP-9I-K-01) 1772 RON
206 1 1 FRAME (SP-9I-K-02) 6688 RON
207 1 1 COVER (SP-9I-K-03) 10241 RON
208 1 20 NUT (SP-9I-K-10) 1630 RON
209 1 2 SCREW (SP-9I-K-05) 1772 RON
210 1 1 COVER (SP-9I-K-32-BD) 1630 RON
211 1 2 WASHER (SP-9I-K-07) 1630 RON
212 1 1 COVER RH (SP-9I-K-31-BD) 15469 RON
213 1 2 SCREW (SP-9I-K-19) 1772 RON
214 1 1 SCREW (SP-9I-K-24) 1772 RON
215 1 1 PROTECTOR (SP-9I-K-33) 4355 RON
216 1 1 NUT (SP-9I-K-30) 1630 RON
217 1 2 WASHER (SP-9I-K-29) 1630 RON
218 1 1 COVER (SP-9I-J-25) 1630 RON
219 1 1 SCREW (SP-9I-J-24) 1772 RON
220 1 1 VALVE (SP-9I-J-23) 1630 RON
221 1 4 NUT (SP-9I-K-27) 1630 RON
222 1 1 OIL (SP-9I-J-10) 6688 RON
223 1 1 HOUSING RH (SP-9I-K-28-BD) 20216 RON
224 1 1 COVER (SP-9I-K-06-BD) 1630 RON
225 1 1 PROTECTOR (SP-9I-K-08-BD) 1630 RON
227 1 1 PUMP (SP-9I-J-11) 9012 RON
228 1 3 SCREW (SP-9I-J-13) 1772 RON
229 1 1 CAGE (SP-9I-J-05) 1630 RON
230 1 3 WASHER (SP-9I-K-22) 1630 RON
231 1 2 GASKET (SP-9I-K-17) 1772 RON
234 1 1 VALVE (SP-9I-J-23) 1630 RON
235 1 1 VALVE (SP-9I-J-21) 4827 RON
236 1 1 SCREW (SP-9I-J-20) 1772 RON
237 1 1 HOSE (SP-9I-J-09) 6688 RON
238 1 1 HOSE (SP-9I-J-08) 6688 RON
239 1 1 HOSE (SP-9I-J-07) 6688 RON
240 1 1 FILTER (SP-9I-J-17) 1630 RON
241 1 1 CLAMP (SP-9I-J-18) 1630 RON
242 1 1 HOSE (SP-9I-J-19) 2556 RON
243 1 1 CLAMP (SP-9I-J-16) 1630 RON
244 1 1 CLAMP (SP-9I-J-16) 1630 RON
245 1 1 HOSE (SP-9I-J-15) 6688 RON
246 1 1 CLAMP (SP-9I-J-14) 1630 RON
247 1 2 SCREW (SP-9I-L-03) 1772 RON
248 1 1 WASHER SPRING (SP-9I-L-04) 1630 RON
249 1 1 MOTOR (SP-9I-L-01) 15469 RON
251 1 1 SEAL (SP-9I-K-04) 741 RON
252 1 3 GASKET (SP-9I-K-35) 1630 RON
253 1 1 SCREW (SP-9I-K-34) 1772 RON
254 1 1 NUT (SP-9I-K-21) 1630 RON
255 1 1 REGULATOR (SP-9I-K-20) 33797 RON
256 1 1 PROTECTOR (SP-9I-K-09-BD) 1630 RON
257 1 1 HOUSING LH (SP-9I-K-13-BD) 18568 RON
258 1 2 SCREW (SP-9I-K-11) 1630 RON
259 1 2 SCREW (SP-9I-K-16) 1772 RON
260 1 1 NUT (SP-9I-K-01) 1772 RON
261 1 2 BOLT (SP-9I-K-39) 1772 RON
262 1 1 COVER LH (SP-9I-K-14-BD) 15469 RON
263 1 4 PAD (SP-9I-K-18) 3954 RON
264 1 4 SCREW (SP-9I-K-19) 1772 RON
265 1 2 BOLT (SP-9I-M-02) 1772 RON
266 1 1 INVERTER (SP-9I-M-01) 249223 RON
267 1 1 PANEL (SP-9I-K-23) 10241 RON
268 1 1 SCREW (SP-9I-N-01) 1772 RON
269 1 1 CONTROL MODULE SA (SP-9I-N-02) 35435 RON
270 1 1 OVERLOAD PROTECTOR (SP-9I-N-06) 5370 RON
271 1 3 SCREW (SP-9I-N-03) 1772 RON
272 1 1 BOLT (SP-9I-N-07) 1772 RON
273 1 4 NUT (SP-9I-N-05) 1630 RON
274 1 1 PANEL (SP-9I-N-09-BD) 1630 RON
275 1 1 SWITCH (SP-9I-N-11) 4355 RON
276 1 1 CAP (SP-9I-N-12) 1630 RON
277 1 1 NUT (SP-9I-N-19) 1630 RON
278 1 2 WASHER (SP-9I-N-20) 1630 RON
279 1 1 WASHER (SP-9I-N-21) 1630 RON
280 1 1 NUT (SP-9I-N-22) 1630 RON
281 1 1 SOCKET (SP-9I-N-18) 741 RON
282 1 1 BUTTON (SP-9I-N-13) 4827 RON
283 1 1 CAP (SP-9I-N-16) 2182 RON
284 1 1 SOCKET (SP-9I-N-17) 10241 RON
285 1 1 SOCKET (SP-9I-N-14) 741 RON
286 1 4 SCREW (SP-9I-N-15) 1772 RON
801 1 1 FILTER SA (SP-IC40I-E-01) 16689 RON
