Top » Piese de schimb » PIESE BLACK & DECKER » BXGND7900E Type 1

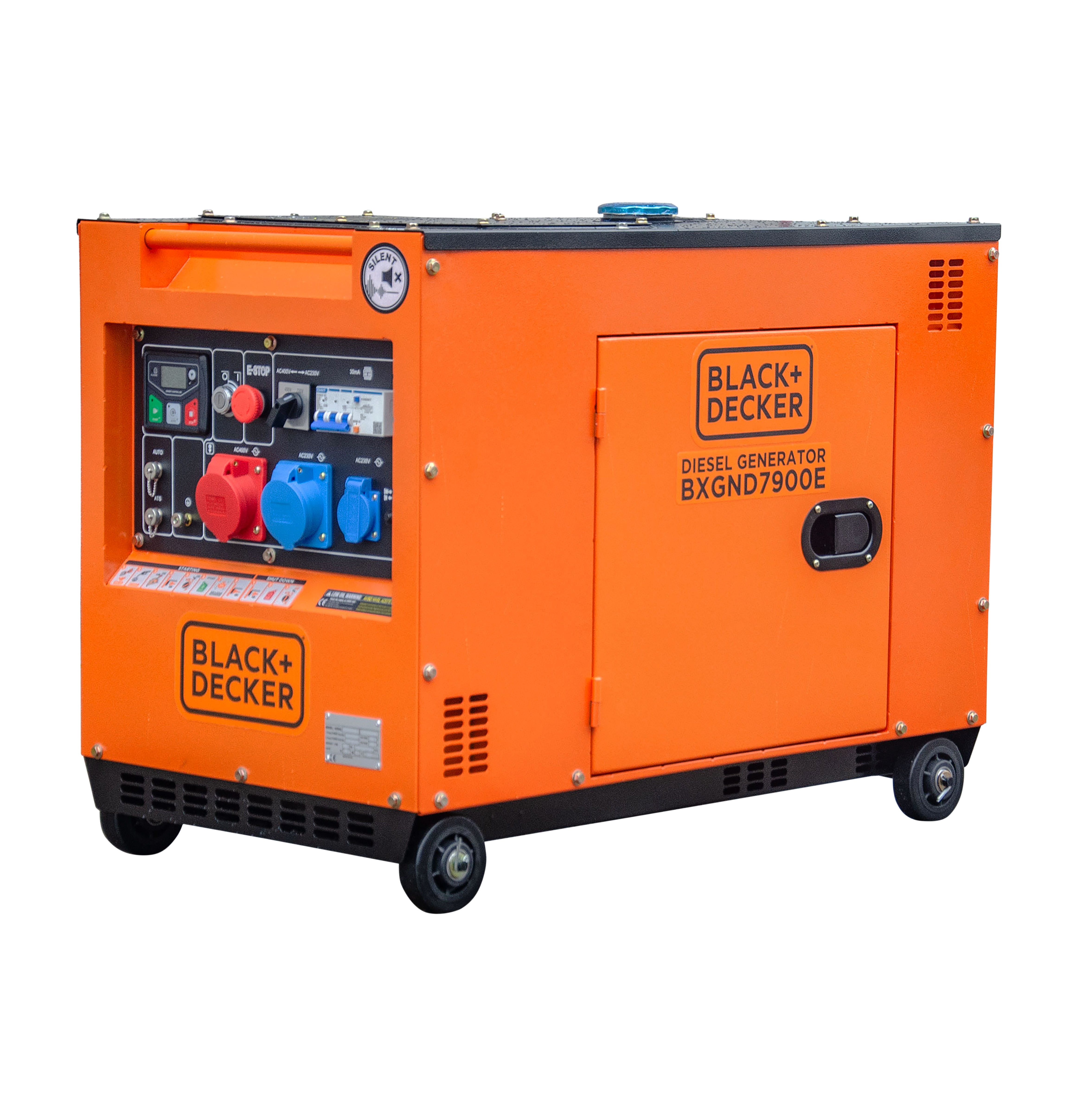

GENERATOR BLACK+DECKER BXGND7900E Type 1
[BXGND7900E Type 1]
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari
Imagini suplimentare
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari
GENERATOR BLACK+DECKER BXGND7900E Type 1
Click pentru a mari

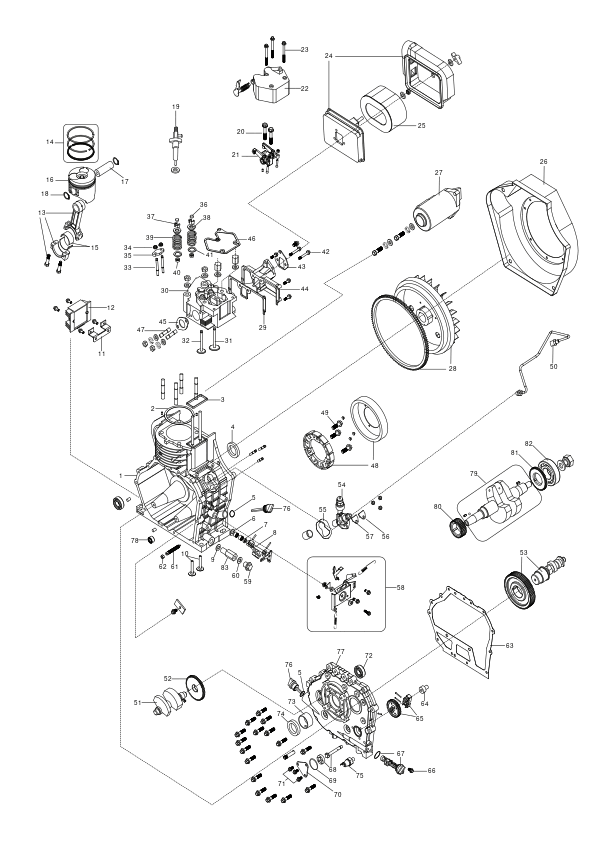

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CRANKCASE (SP-D500-A04-4) 148269 RON
2 1 1 GASKET (SP-D500-A31-2) 6688 RON
3 1 1 GASKET (SP-D400-A30) 2796 RON
4 1 1 SEAL (SP-D400-A03) 9012 RON
5 1 2 BOARD (SP-D400-A06) 114 RON
6 1 1 WASHER (SP-D400-G07) 1318 RON
7 1 1 SEAL (SP-D400-G06) 741 RON
8 1 1 GOVERNOR SA (SP-D400-G03) 13697 RON
9 1 1 WASHER (SP-D400-A02) 1630 RON
10 1 2 PUSHER (SP-D500-F02) 6688 RON
11 1 1 BRACKET (SP-D400-E06) 4827 RON
12 1 1 REGULATOR (SP-D400-E07) 85494 RON
13 1 1 CONNECTING ROD (SP-D500-C05-2) 36994 RON
14 1 1 PISTON RING (SP-D500-C01-2) 20216 RON
15 1 1 BUSHING (SP-D500-C06-1) 11337 RON
16 1 1 PISTON (SP-D500-C02-2) 35435 RON
17 1 1 SHAFT (SP-D500-C03-2) 3954 RON
18 1 2 CLIP (SP-D400-C04) 1318 RON
19 1 1 INJECTOR (SP-D500-K01-2) 52855 RON
20 1 2 SCREW (SP-D400-H17) 1933 RON
21 1 1 ROCKER (SP-D400-H16) 23244 RON
22 1 1 COVER (SP-D500-J02-2) 28836 RON
23 1 3 SCREW (SP-D400-J01) 1772 RON
24 1 1 BOX (SP-D500-I10-SE) 32327 RON
25 1 1 FILTER (SP-D400-I09) 11337 RON
26 1 1 COVER (SP-D500-N02-5) 38463 RON
27 1 1 STARTER SA (SP-D400-M01) 214180 RON
28 1 1 FLYWHEEL (SP-D450-D11-3) 73079 RON
29 1 1 GASKET (SP-D500-H01-1) 4355 RON
30 1 1 BLOCK (SP-D500-H02-2) 125542 RON
31 1 1 VALVE (SP-D500-H03-2) 11337 RON
32 1 1 VALVE (SP-D500-H04-2) 11337 RON
33 1 2 SCREW (SP-D400-H05) 1772 RON
34 1 2 NUT (SP-D400-H18) 114 RON
35 1 1 PLATE (SP-D400-H19) 4827 RON
36 1 2 STOP (SP-D500-H15-1) 1772 RON
37 1 4 RETAINER (SP-D500-H14-1) 3268 RON
38 1 2 SEAT (SP-D500-H13-1) 2796 RON
39 1 2 SPRING (SP-D500-H12-1) 4355 RON
40 1 2 RETAINER (SP-D400-H11) 4355 RON
41 1 2 WASHER (SP-D500-H10-1) 1630 RON
42 1 2 SCREW (SP-D400-I06) 2556 RON
43 1 1 GASKET (SP-D500-I03-1) 2556 RON
44 1 1 INTAKE (SP-D500-I01-1) 13697 RON
45 1 1 GASKET (SP-D500-H08-1) 5370 RON
46 1 1 GASKET (SP-D500-J03-1) 3954 RON
47 1 2 SCREW (SP-D400-H07) 1933 RON
48 1 1 COIL (SP-D400-E01) 125542 RON
49 1 3 SCREW (SP-D400-E03) 1630 RON
50 1 1 TUBE (SP-D450-O1-1) 10241 RON
51 1 1 SHAFT (SP-D400-D02) 18568 RON
52 1 1 SPROCKET (SP-D400-D04) 10241 RON
53 1 1 CAM (SP-D500-F05-2) 44688 RON
54 1 1 INJECTOR (SP-D500-L03-2) 91363 RON
55 1 1 GASKET (SP-D400-A12) 3954 RON
56 1 1 PLATE (SP-D400-A14) 3268 RON
57 1 1 GASKET (SP-D400-A13) 1318 RON
58 1 1 CONTROLLER SA (SP-D400-G01) 24962 RON
59 1 1 BOLT (SP-D400-A01) 1772 RON
60 1 1 WASHER (SP-D400-A02) 1630 RON
61 1 1 STOP (SP-D400-A08) 11337 RON
62 1 1 NUT (SP-D400-A09) 114 RON
63 1 1 GASKET (SP-D400-A35) 5370 RON
64 1 1 PIN (SP-D400-B07) 3268 RON
65 1 1 CONTROLLER (SP-D400-B06) 5370 RON
66 1 1 SCREW (SP-D400-B10) 1630 RON
67 1 1 FILTER (SP-D400-B09) 9012 RON
68 1 1 PUMP (SP-D400-B05) 741 RON
69 1 1 O RING (SP-D400-B03) 1630 RON
70 1 1 COVER (SP-D400-B02) 3268 RON
71 1 3 SCREW (SP-D400-B01) 1630 RON
72 1 1 BEARING BALL (SP-D400-A44) 38463 RON
73 1 1 CAP (SP-D400-A36) 10241 RON
74 1 1 SEAL (SP-D400-A37) 10241 RON
75 1 1 SENSOR (SP-D400-A38) 12361 RON
76 1 2 DIPSTICK (SP-D400-A07) 2556 RON
77 1 1 BLOCK (SP-D500-A40-2) 73079 RON
78 1 2 BEARING (SP-D400-D01) 12361 RON
79 1 1 CRANKSHAFT (SP-D500-D06-2) 96047 RON
80 1 1 SPROCKET (SP-D400-D05) 9012 RON
81 1 1 SPROCKET (SP-D400-D09) 11337 RON
82 1 1 BEARING (SP-D400-A22) 55455 RON
83 1 1 CONNECTING ROD (SP-D400-A01-1) 5370 RON
101 1 1 COVER (SP-D400-W01-BD) 13697 RON
102 1 1 COVER RH (SP-D400-W02-BD) 200340 RON
103 1 1 COVER LH (SP-D400-W03-BD) 148269 RON
104 1 1 COVER (SP-D400-W04-BD) 39318 RON
105 1 1 PANEL (SP-D400-W05-BD) 85494 RON
106 1 1 ACCESS PANEL (SP-D400-W06-BD) 27287 RON
107 1 1 BASE (SP-D400-W07-BD) 161583 RON
108 1 1 DOOR (SP-D400-W08-BD) 85494 RON
109 1 1 FRAME (SP-D400-W09) 25728 RON
110 1 1 MUFFLER (SP-D500-U42-1) 78485 RON
112 1 1 BELLOWS (SP-D500-U13-1) 23244 RON
113 1 1 PLATE (SP-D400-U14-BD) 15469 RON
114 1 1 PLATE (SP-D400-U15-BD) 18568 RON
115 1 1 BRACKET (SP-D500-U49) 35435 RON
116 1 1 PLATE (SP-D500-U50) 16689 RON
117 1 1 BRACKET (SP-D400-U17) 9012 RON
118 1 1 PLATE (SP-D400-U18-BD) 24962 RON
119 1 1 PLATE (SP-D400-U19-BD) 18568 RON
120 1 1 PLATE (SP-D400-U20) 10241 RON
121 1 1 BASE (SP-D400-U21-BD) 10241 RON
122 1 4 BLOCK (SP-D400-U22) 20216 RON
123 1 1 BATTERY (SP-BAT4.5AH-12V) 236862 RON
124 1 2 HANDLE (SP-D400-U24) 11337 RON
125 1 1 FITTING (SP-D400-U25-BD) 2796 RON
126 1 2 ROD (SP-D400-U26-BD) 4827 RON
127 1 1 RUBBER (SP-D400-U27-BD) 1772 RON
128 1 1 GASKET (SP-D500-U12-1) 5370 RON
129 1 2 CLIP (SP-D400-U29) 1630 RON
130 1 1 SEAL (SP-D400-U31) 2556 RON
131 1 1 DISPLAY (SP-D400-U32) 1772 RON
132 1 4 WHEEL (SP-D400-U33) 12361 RON
133 1 1 SUPPORT (SP-D400-U34-BD) 6688 RON
134 1 1 CABLE (SP-D400-U35) 21676 RON
135 1 1 COVER (SP-D400-W39-BD) 200340 RON
136 1 1 COVER REAR (SP-D400-W40-BD) 200340 RON
137 1 1 PANEL (SP-D500-U51) 16689 RON
138 1 1 GASKET (SP-D500-U12-1) 5370 RON
201 1 1 ALTERNATOR (SP-ALT-6T) 634951 RON
202 1 1 COVER (SP-D500-S02-3) 44688 RON
204 1 1 COVER REAR (SP-D500-S04-2) 52855 RON
205 1 1 PLATE (SP-D400-S05) 3954 RON
206 1 1 BRUSH (SP-ALT-ESC-5) 11337 RON
207 1 1 REGULATOR (SP-ALT-AVR-7-T) 73079 RON
208 1 1 COVER (SP-D400-S06) 3954 RON
301 1 1 CONTROL PANEL (1004786-66) 385497 RON
302 1 1 DISPLAY (SP-PC-DC30D) 188451 RON
303 1 1 STARTER SA (SP-PC-STARTER-D) 28836 RON
304 1 1 STOP (SP-PC-STOP) 18568 RON
305 1 1 CIRCUIT BREAKER (SP-PC-ETEK-4-B32-B) 277356 RON
306 1 1 SOCKET (1004786-63) 24962 RON
307 1 1 SOCKET (1004786-62) 33797 RON
308 1 1 SOCKET (1004786-67) 28836 RON
309 1 1 CONNECTOR (SP-PC-ATS-3) 9012 RON
310 1 1 CONNECTOR (AP-PC-ATS-2) 9012 RON
311 1 1 NUT (SP-PC-CON-EARTH) 3954 RON
312 1 1 RELAY (SP-D400-M05-1) 23244 RON
313 1 1 OVERLOAD PROTECTOR (SP-PC-OVER-14A) 6688 RON
314 1 1 SWITCH (SP-PC-SELEC-T) 49114 RON
