Top » Piese de schimb » PIESE BLACK & DECKER » PS7525 Type H1

FOARFECA DE GRADINA BLACK+DECKER PS7525 Type H1
[PS7525 Type H1]
FOARFECA DE GRADINA BLACK+DECKER PS7525 Type H1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA BLACK+DECKER PS7525 Type H1
Click pentru a mari
FOARFECA DE GRADINA BLACK+DECKER PS7525 Type H1
Click pentru a mari

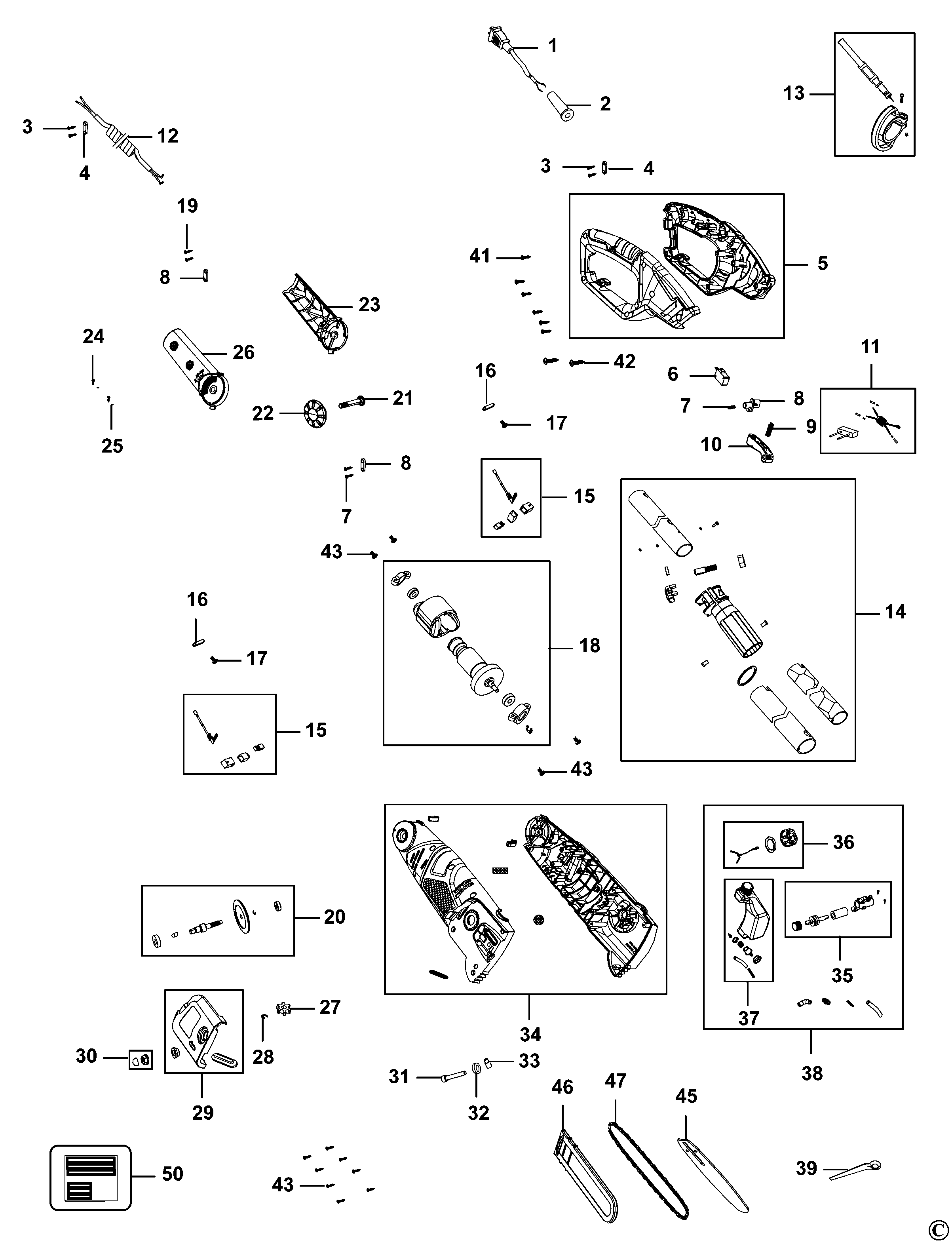

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CORDSET (1004697-49) 15469 RON
2 1 1 CORD PROTECTOR (1004697-50) 588 RON
3 1 8 SCREW (1004697-51) 588 RON
4 1 3 CABLE CLAMP (1004697-52) 588 RON
5 1 1 HOUSING HANDLE (1004697-55) 24962 RON
6 1 1 SWITCH (1004697-56) 114 RON
7 1 1 SPRING (1004697-57) 588 RON
8 1 1 BUTTON LOCK-OFF (1004697-58) 588 RON
9 1 1 SPRING (1004697-59) 588 RON
10 1 1 TRIGGER (1004697-60) 82 RON
11 1 1 CABLE AND CAPACITOR (1004697-61) 2182 RON
12 1 1 CABLE (1004697-62) 741 RON
13 1 1 STRAP (1004697-63) 741 RON
14 1 1 HANDLE TUBE SA (1004697-64) 39318 RON
15 1 1 BRUSH PAIR SA (1004697-65) 2556 RON
16 1 2 CABLE CLAMP (1004697-66) 588 RON
17 1 2 SCREW (1004697-67) 588 RON
18 1 1 MOTOR SA (1004697-68) 24962 RON
19 1 2 SCREW (1004697-69) 588 RON
20 1 1 GEAR AND SPINDLE SA (1004697-70) 9012 RON
21 1 1 BOLT (1004697-71) 668 RON
22 1 1 KNOB (1004697-72) 944 RON
23 1 1 CASTING LH (1004697-73) 3268 RON
24 1 2 SCREW (1004697-74) 588 RON
25 1 2 SPRING (1004697-75) 588 RON
26 1 1 CASTING RH (1004697-76) 2796 RON
27 1 1 SPROCKET (1004697-78) 114 RON
28 1 3 RETAINER (1004697-79) 588 RON
29 1 1 END CAP (1004697-80) 1772 RON
30 1 1 KNOB (1004697-81) 588 RON
31 1 1 SCREW (1004697-82) 588 RON
32 1 1 WASHER (1004697-83) 588 RON
33 1 1 NUT (1004697-84) 588 RON
34 1 1 HOUSING SA (1004697-85) 15469 RON
35 1 1 PUMP SA (1004697-86) 3268 RON
36 1 1 CAP SA (1004697-87) 114 RON
37 1 1 RESERVOIR (1004697-88) 3268 RON
38 1 1 RESERVOIR SA (1004697-93) 5370 RON
39 1 1 WRENCH SPECIAL (1004697-89) 944 RON
41 1 6 SCREW (1004697-53) 588 RON
42 1 2 SCREW (1004697-54) 588 RON
43 1 17 SCREW (1004697-77) 588 RON
45 1 1 BAR (1004697-92) 12361 RON
46 1 1 SHEATH (1004697-90) 114 RON
47 1 1 CHAIN (1004697-91) 15469 RON
50 1 1 RATING LABEL (1004697-94) 588 RON
